HEADLAMP

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

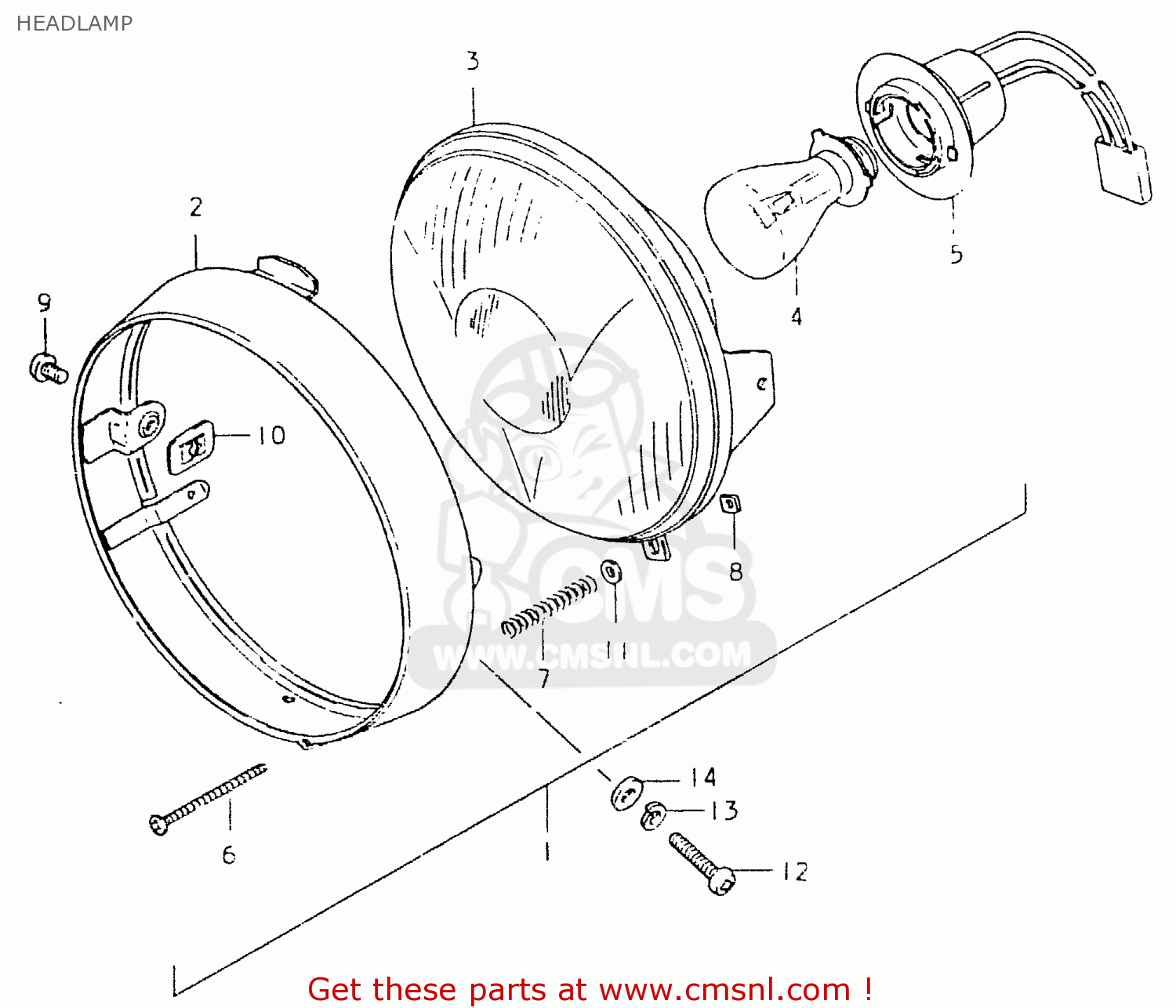

Headlamp diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

HEADLAMP TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
HEADLAMP TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
HEADLAMP TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
3510048510
ref: 1
HEADLAMP ASSY
3510048510
€ 136.50
2
3511148510
ref: 2
RIM
3511148510
€ 34.00
3
3512148510
ref: 3
LAMP UNIT
3512148510
€ 51.00
4
0947106029
ref: 4
BULB(6V25/25W,STANLEY,A7007)
0947106029
€ 9.00
5
3517148510
ref: 5
SOCKET,HEADLAMP
3517148510
€ 18.00
6
3515148510
ref: 6
SCREW,HEADLAMP ADJUST
€ 3.50
7
3515448510
ref: 7
SPRING
3515448510
€ 2.50
8
3515248510
ref: 8
NUT,HEADLAMP ADJUSTER
€ 3.00
9
0211205088
ref: 9
SCREW
0211205088
€ 2.00
10
3515548510
ref: 10
NUT
3515548510
€ 2.00
11
3515748510
ref: 11
WASHER
€ 2.50
12
0211205168
ref: 12
SCREW
0211205168
€ 2.50
13
0832121058
ref: 13
LOCK WASHER
0832121058
€ 2.00
14
0832221058
ref: 14
WASHER
€ 2.50
