STAND - FOOTREST (E22)

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

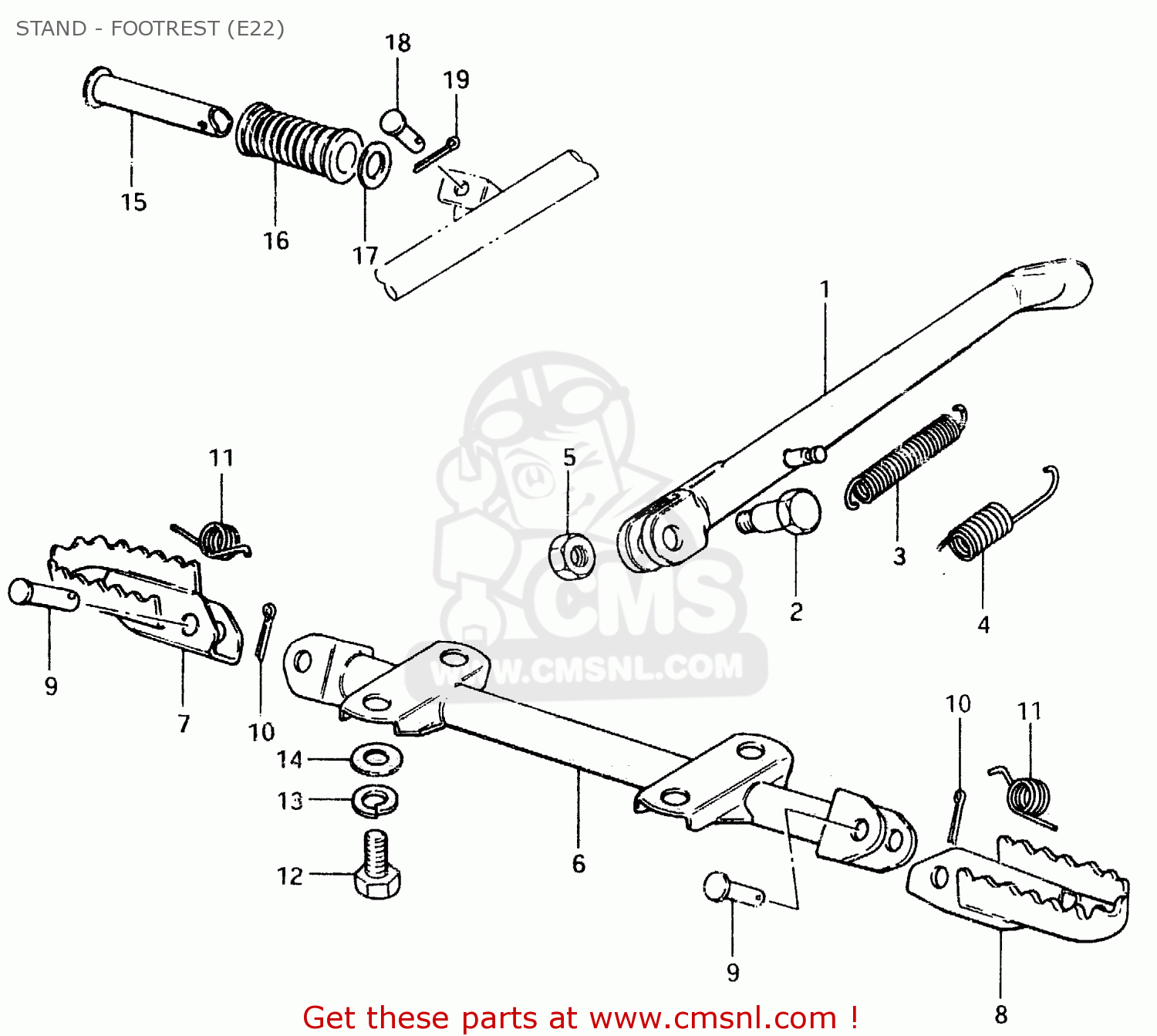

Stand - footrest (e22) diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

STAND - FOOTREST (E22) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
STAND - FOOTREST (E22) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
STAND - FOOTREST (E22) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
4231048520
ref: 1
STAND, PROP
4231048520
€ 106.50
2
0911110013
ref: 2
BOLT
0911110013
€ 4.50
3
0944314014
ref: 3
SPRING
0944314014
€ 5.50
4
0944322001
ref: 4
SPRING, OUTER
0944322001
€ 4.50
5
0831022108
ref: 5
NUT
0831022108
€ 2.50
6
4351048001
ref: 6
BAR,FR FOOTREST
4351048001
€ 32.50
7
4355041102
ref: 7
FOOTREST,FRONT
4355041102
€ 30.50
8
4356041102
ref: 8
FOOTREST
4356041102
€ 31.50
9
0920010008
ref: 9
PIN
0920010008
€ 3.00
10
0411120208
ref: 10
PIN 20X20
0411120208
€ 1.50
11
0944815004
ref: 11
SPRING
0944815004
€ 2.50
12
0110708208
ref: 12
BOLT
0110708208
€ 3.00
13
0832121088
ref: 13
LOCK WASHER
0832121088
€ 2.00
14
0832211088
ref: 14
WASHER
0832211088
€ 2.00
15
4361003001
ref: 15
BAR,FOOTREST RUBBER
4361003001
€ 5.50
16
4361203001
ref: 16
RUBBER,PILLION FOOTREST
4361203001
€ 3.50
17
0916019006
ref: 17
WASHER (19.5X32X2)
0916019006
€ 2.00
18
0920006010
ref: 18
PIN
0920006010
€ 2.50
19
0411120208
ref: 19
PIN 20X20
0411120208
€ 1.50
