AIR CLEANER

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

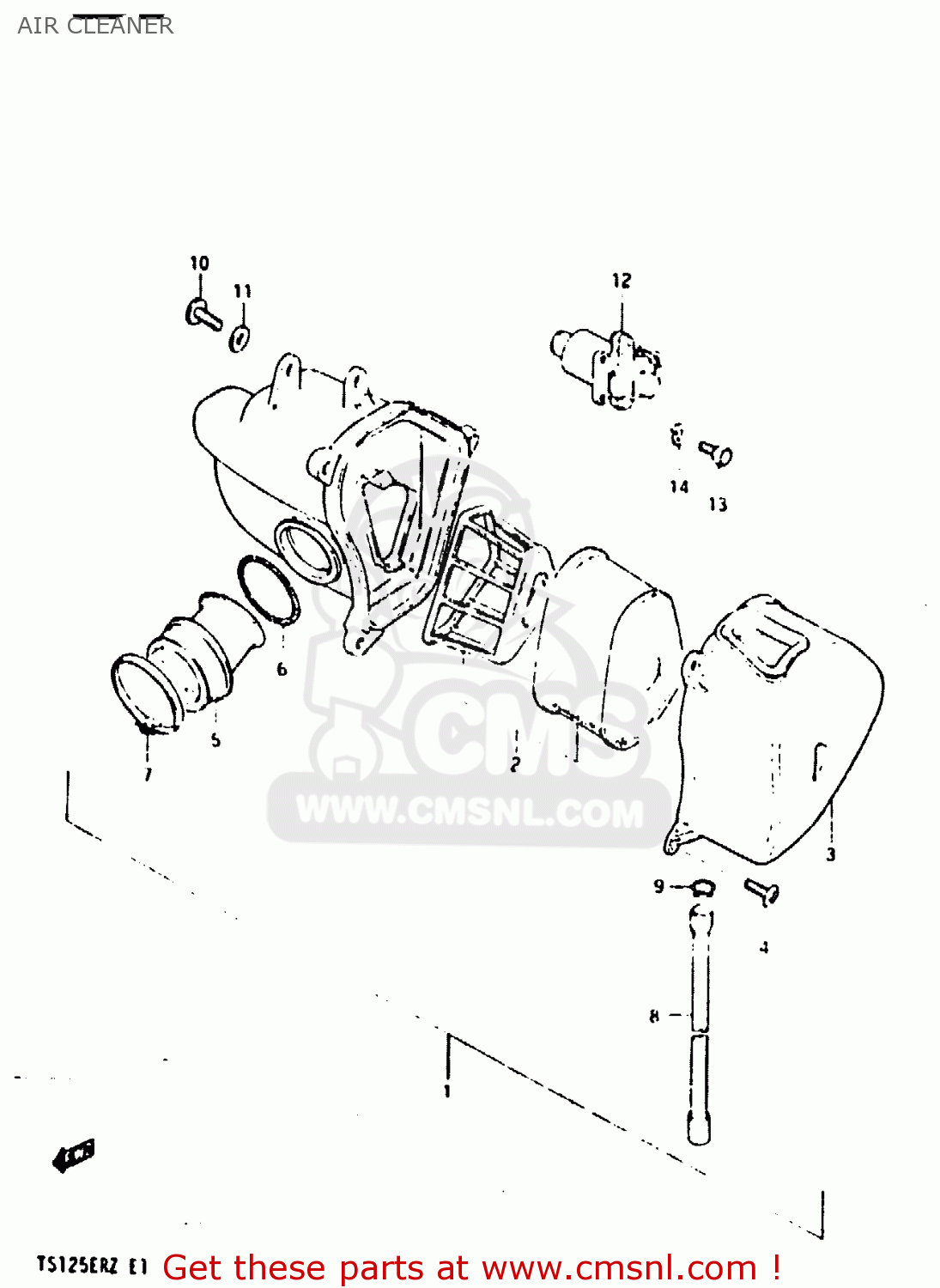

Air cleaner diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

AIR CLEANER TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)
AIR CLEANER TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)
AIR CLEANER TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)
prices are in EUR
ref
part #
description
quantity
1
1370048700
ref: 1
CLEANER ASSY, AIR
€ 136.00
2
1378048700
ref: 2
FILTER ASSY
1378048700
€ 25.50
3
1374048700
ref: 3
CAP
€ 18.00
4
0214205148
ref: 4
SCREW
€ 1.50
5
1388148700
ref: 5
TUBE,OUTLET
1388148700
€ 18.00
6
1382617300
ref: 6
SPRING,AIR CLEANER SIDE
€ 7.50
7
0940250306
ref: 7
CLAMP
0940250306
€ 6.00
8
1387048700
ref: 8
TUBE, DRAIN
€ 13.50
9
0940114301
ref: 9
CLIP
0940114301
€ 2.00
10
0214206167
ref: 10
SCREW
0214206167
€ 2.00
11
0916006007
ref: 11
WASHER
0916006007
€ 2.00
12
NOTUSED
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13
NOTUSED
ref: 13
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14
NOTUSED
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
