TRANSMISSION

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

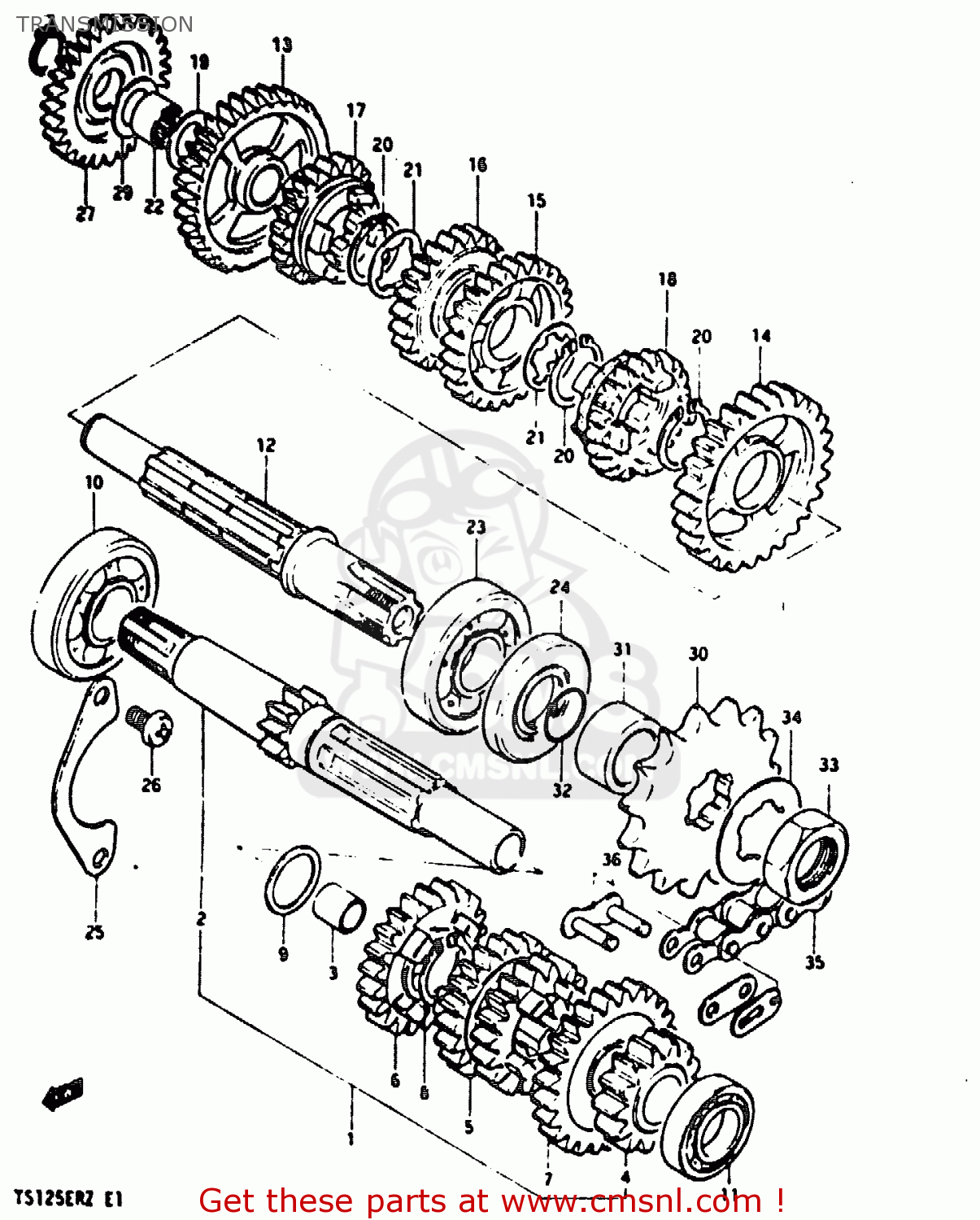

Transmission diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

TRANSMISSION TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)
TRANSMISSION TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)
TRANSMISSION TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)
prices are in EUR
ref
part #
description
quantity
1
2412048710
ref: 1
COUNTERSHAFT ASSY
2412048710
€ 188.50
2
2412148700
ref: 2
COUNTERSHAFT (NT:11)
2412148700
€ 93.50
3
2412538200
ref: 3
BUSHING
€ 3.50
4
2422148700
ref: 4
GEAR,2ND DRIVE(NT:14)
€ 29.50
5
2423148700
ref: 5
NT:19/21
GEAR, 3RD & 4TH DRIVE
2423148700
€ 49.50
6
2425148710
ref: 6
GEAR, 5TH DRIVE (NT:23)
€ 45.50
7
2426048710
ref: 7
GEAR, 6TH DRIVE (NT:25)
€ 36.00
8
0938020007
ref: 8
CIRCLIP
0938020007
€ 3.00
9
0821120261
ref: 9
WASHER
0821120261
€ 2.50
10
0811362040
ref: 10
Bearing
0811362040
€ 28.00
11
0811360020
ref: 11
BEARING
0811360020
€ 14.00
12
2413148700
ref: 12
SHAFT,DRIVE
€ 104.50
13
2431048700
ref: 13
GEAR, 1ST DRIVEN (NT:34)
€ 38.50
14
2432148700
ref: 14
GEAR, 2ND DRIVEN (NT:26)
€ 46.50
15
2433148700
ref: 15
GEAR,3RD DRIVE
€ 71.00
16
2434148700
ref: 16
GEAR, 4TH DRIVEN (NT:23)
€ 57.00
17
2435148710
ref: 17
GEAR, 5TH DRIVEN (NT:22)
€ 46.50
18
2436148710
ref: 18
GEAR, 6TH DRIVEN (NT:21)
€ 50.50
19
0821115261
ref: 19
WASHER,THRUST
0821115261
€ 2.50
20
0938020007
ref: 20
CIRCLIP
0938020007
€ 3.00
21
0916720011
ref: 21
WASHER,LOCK
0916720011
€ 2.50
22
0926315012
ref: 22
BEARING(15X22X12)
0926315012
€ 11.50
23
0811362040
ref: 23
Bearing
0811362040
€ 28.00
24
0928327007
ref: 24
SEAL,OIL(27X40X6)
0928327007
€ 7.50
25
2474148000
ref: 25
RETAINER,CNTR SHAFT BEARING
2474148000
€ 5.50
26
0211206128
ref: 26
SCREW 6X12
0211206128
€ 2.00
27
2626028002
ref: 27
GEAR,KICK STARTER IDLE
2626028002
€ 38.00
28
0833131159
ref: 28
CIRCLIP,15MM
0833131159
€ 2.00
29
0821115261
ref: 29
WASHER,THRUST
0821115261
€ 2.50
30
2751127100
ref: 30
SPROCKET,ENGINE(NT:15)
2751127100
€ 24.50
31
0918020080
ref: 31
SPACER(20X27X13.1)
0918020080
€ 9.00
32
0928020001
ref: 32
O RING(D:1,ID:19.5)
0928020001
€ 2.00
33
0914020001
ref: 33
NUT
0914020001
€ 3.50
34
0916720006
ref: 34
WASHER,LOCK
0916720006
€ 3.00
35
2760029070
ref: 35
CHAIN ASSEMBLY,DRIVE
€ 46.50
36-1
2762028011
ref: 36-1
JOINT ASSEMBLY,CHAIN
2762028011
€ 3.00
36-2
2762012020
ref: 36-2
JOINT ASSEMBLY,CHAIN
2762012020
€ 7.00
