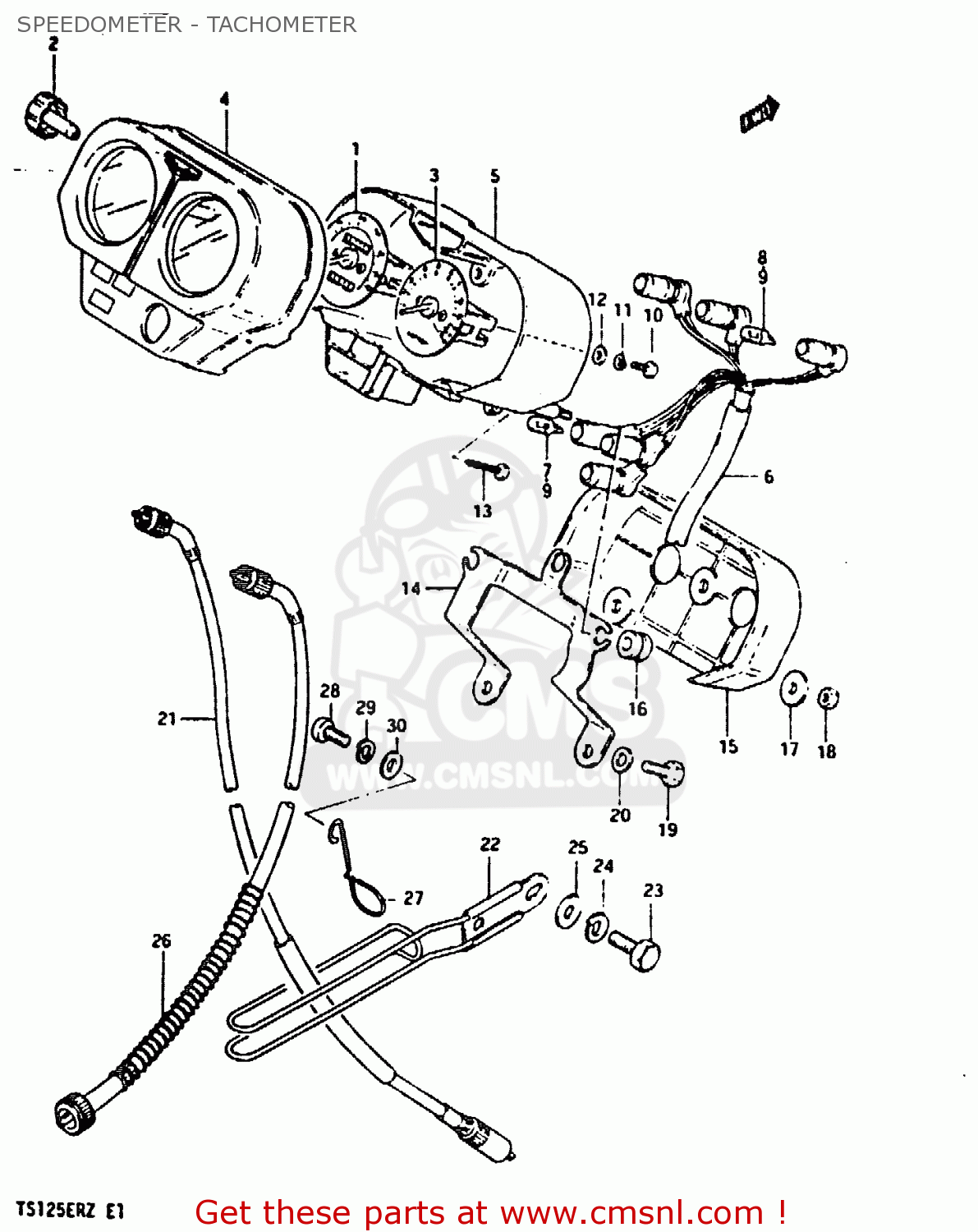

SPEEDOMETER - TACHOMETER - TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

ref

part #

description

quantity

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

3412005240
ref: 1-2
MILE/KILO SCALE

SPEEDOMETER

€ 0.00

2

3498038200
ref: 2

KNOB,TRIP

€ 6.00

3

3422048740
ref: 3

TACHOMETER

€ 126.50

4

3415148740
ref: 4

HOOD,METER

€ 31.00

5

3411138200
ref: 5

CASE,INNER

€ 43.00

6

3417348740
ref: 6

SOCKET

€ 43.00

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

0947112028
ref: 9
E2, E4, E15, E17, E1

BULB(12V3.4W,T10)

€ 3.50

10

0211204108
ref: 10

SCREW 4X10

€ 2.00

11

0832121048
ref: 11

LOCK WASHER

€ 2.00

12

0832221048
ref: 12

WASHER

€ 2.00

13

0913204005
ref: 13

SCREW

€ 2.00

14

3495005200
ref: 14

BRACKET,METER

€ 25.00

15

3415238200
ref: 15

COVER

€ 22.00

16

3418938200
ref: 16

CUSHION

€ 4.00

17

0832221058
ref: 17

WASHER

€ 2.50

18

0831022058
ref: 18

NUT

€ 2.50

19

0110706128
ref: 19

BOLT

€ 2.00

20

0832221068
ref: 20

WASHER

€ 2.00

21

3491048710
ref: 21

CABLE, SPEEDOMETER

€ 75.00

22

5862030501
ref: 22

GUIDE,CABLE

€ 16.00

23

0110708128
ref: 23

BOLT 8X12

€ 2.50

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

0832211088
ref: 25

WASHER

€ 2.00

26

3494048700
ref: 26

CABLE ASSY,TACHOMETER

€ 19.00

27

3499748700
ref: 27

GUIDE, TACHOMETER CABLE

€ 3.00

28

0211206128
ref: 28

SCREW 6X12

€ 2.00

29

0832121068
ref: 29

LOCK WASHER

€ 2.50

30

0832221068
ref: 30

WASHER

€ 2.00

SPEEDOMETER - TACHOMETER

all assemblies
