CUSHION LEVER

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

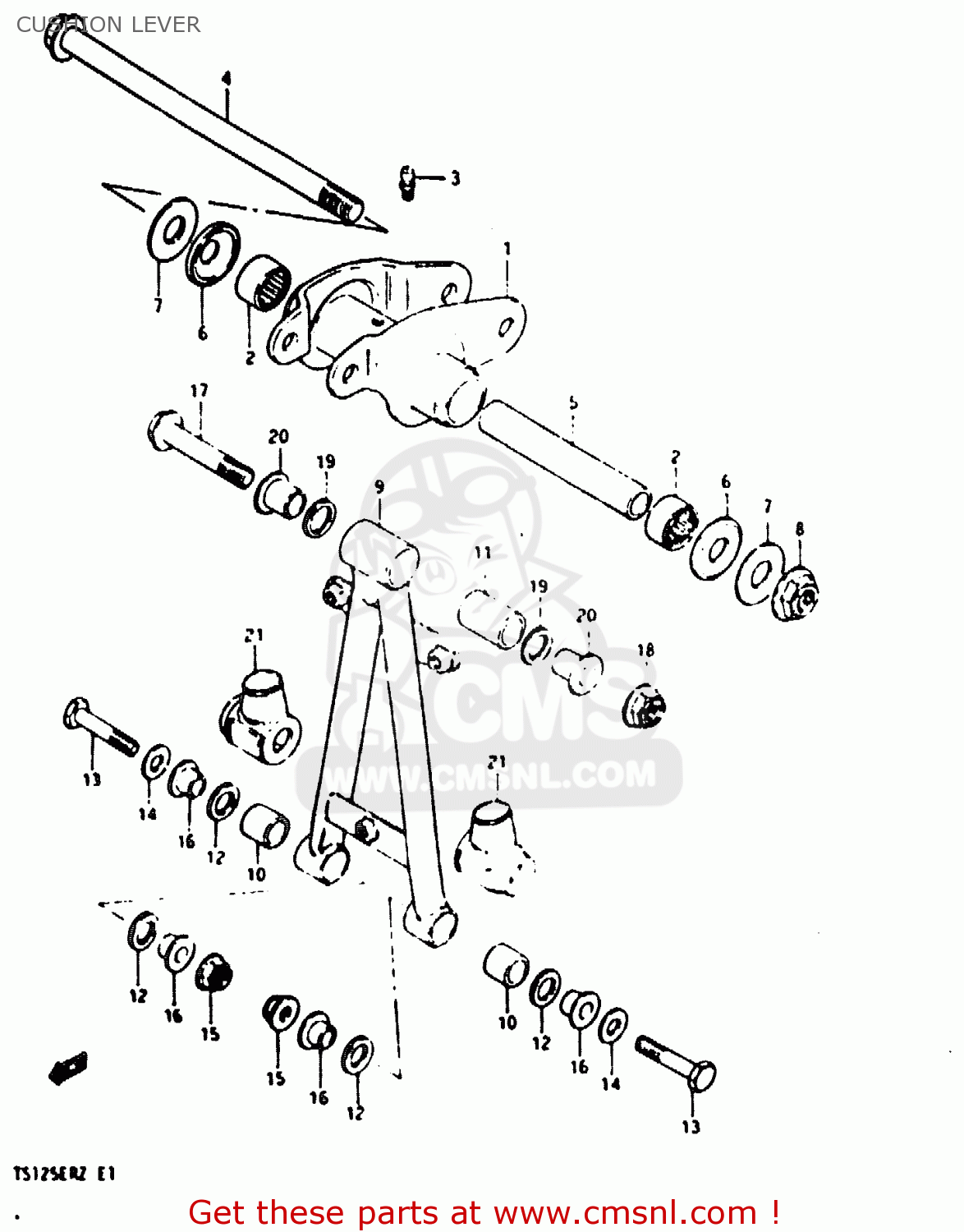

Cushion lever diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

6260048821
ref: 1

LEVER ASSEMBLY,REAR CUSHION

€ 147.00

0926317018
ref: 2

BEARING(17X25X20)

€ 36.00

0835121008
ref: 3

GREASE NIPPLE

€ 13.50

6262148700
ref: 4

SHAFT,RR CUSHION LEVER

€ 14.00

6262348700
ref: 5

SPACER,REAR CUSHION LEVER

€ 20.00

6262448700
ref: 6

DUST SEAL,REAR CUSHION,LEFT

€ 5.50

0821112303
ref: 7

WASHER

€ 2.50

0831931128
ref: 8

NUT 12MM

€ 4.00

6260048810
ref: 9

ROD, CUSHION, LEVER

€ 120.00

6264220400
ref: 10

BUSHING

€ 9.00

6268238200
ref: 11

BUSH,UPPER

€ 8.50

6264720400
ref: 12

DUST SEAL,RR CUSHION LOD LWR

€ 1.50

6231338200
ref: 13

BOLT,REAR CUSHION ROD

€ 3.00

0832211088
ref: 14

WASHER

€ 2.00

0831931088
ref: 15

NUT

€ 2.50

6231614100
ref: 16

SPACER,RR CUSHION ROD LWR

€ 12.00

0910310058
ref: 17

BOLT(10X65)

€ 4.50

0831931108
ref: 18

NUT

€ 3.00

6268320400
ref: 19

DUST SEAL,LEVER CUSHION UNIT

€ 2.00

6231638200
ref: 20

SPACER,RR CUSHION ROD UPR

€ 8.50

6268905200
ref: 21

BOOT,REAR CUSHION ROD,LOWER

€ 5.00
