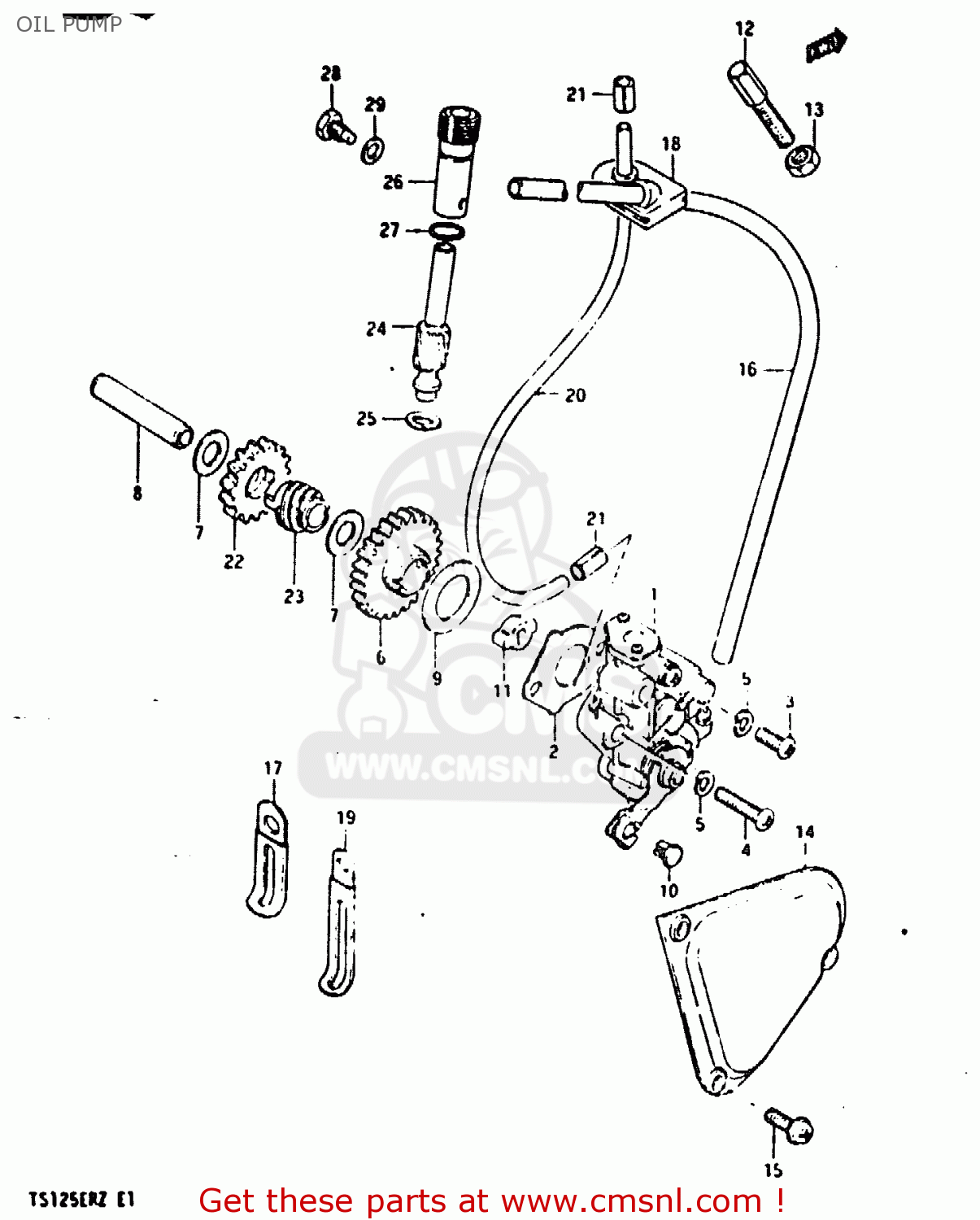

OIL PUMP

ref

part #

description

quantity

1

1610048710
ref: 1

PUMP,OIL

€ 303.50

2

1673103101
ref: 2

GASKET,OIL PUMP (NAS)

€ 2.50

3

0211205168
ref: 3

SCREW

€ 2.50

4

0211205308
ref: 4

SCREW

€ 1.50

5

0832121058
ref: 5

LOCK WASHER

€ 2.00

6

1635148720
ref: 6

GEAR, DRIVEN

€ 25.00

7

0916010065
ref: 7

WASHER(10X18X4)

€ 10.00

8

1632248730
ref: 8

SHAFT,DRIVEN GEAR

€ 8.50

9

0916021012
ref: 9

WASHER(21X32X1.5)

€ 4.50

10

1629203112
ref: 10

TERMINAL,CABLE

€ 3.50

11

1639105031
ref: 11

PIECE,OIL PUMP DRIVE

€ 2.50

12

0911908014
ref: 12

BOLT

€ 3.50

13

0831012088
ref: 13

NUT

€ 2.00

14

1141148700
ref: 14
TO 11411-48701

COVER, OIL PUMP

€ 12.00

15

0215205168
ref: 15

SCREW

€ 1.50

16

0934304049
ref: 16

HOSE, INLET (L:550)

€ 9.00

17

0940408401
ref: 17

CLAMP

€ 3.50

18

1683148700
ref: 18

GROMMET,OIL HOSE NO.2

€ 0.00

19

0940406413
ref: 19

CLAMP

€ 2.50

20

0934302009
ref: 20

HOSE

€ 12.00

21

0940104401
ref: 21

CLIP

€ 2.50

22

2642148701
ref: 22

GEAR,TACHOMETER DRIVE NO.1

€ 16.50

23

2642348700
ref: 23

GEAR,TACHOMETER DRIVE NO.2

€ 19.00

24

2643148701
ref: 24

GEAR,TACHOMETER DRIVEN

€ 19.50

25

0916008003
ref: 25

WASHER(8X13.7X1)

€ 2.00

26

2644148700
ref: 26

SLEEVE,TACHOMETER DRIVE GEAR

€ 14.00

27

0928010001
ref: 27

O RING(D:1.3,ID:9.6)

€ 2.00

28

0913506002
ref: 28

BOLT

€ 2.50

29

0916806004
ref: 29

GASKET(6.2X11X1).2 (NAS)

€ 1.50
