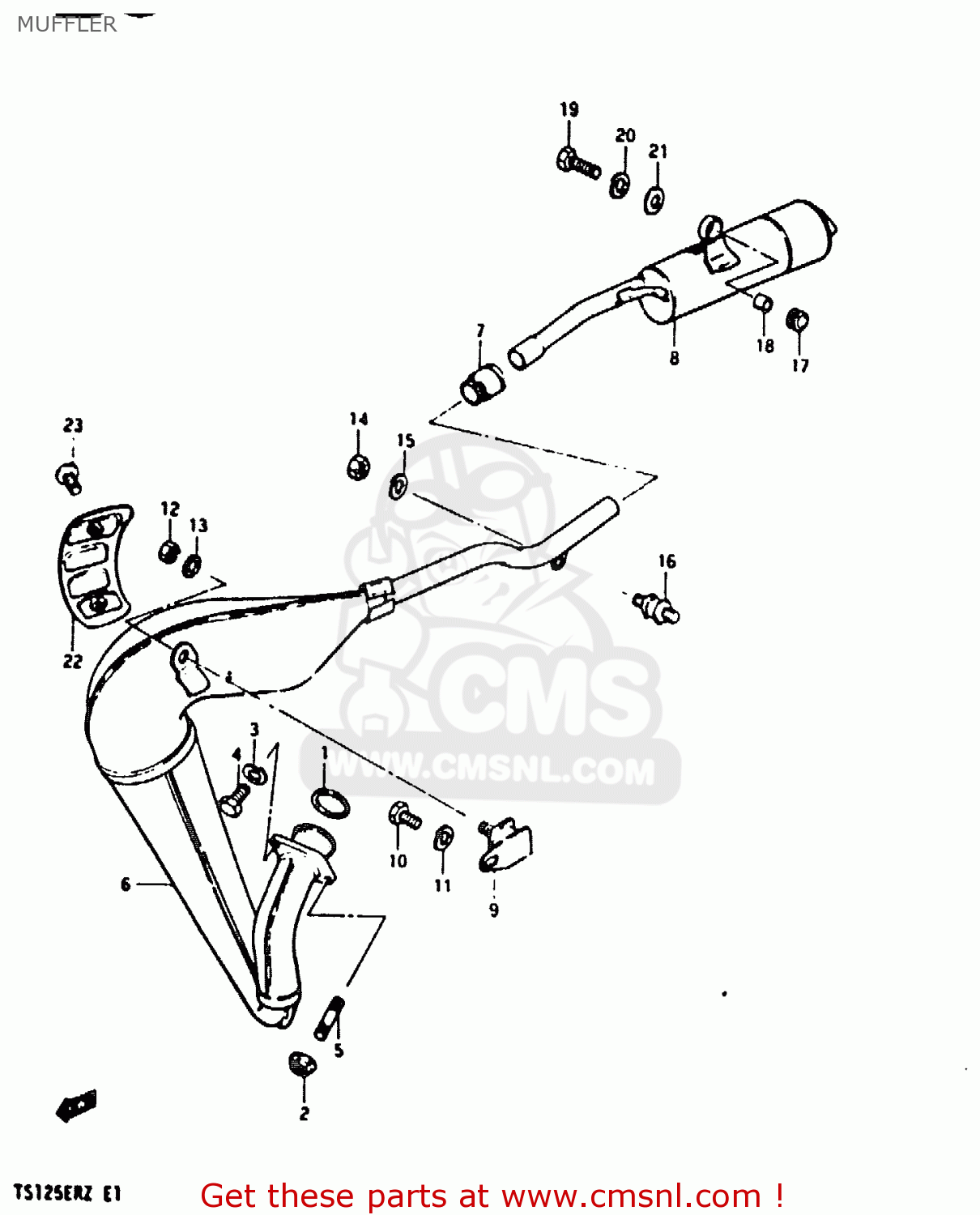

MUFFLER

ref

part #

description

quantity

1

1418111020
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 8.00

2

0831616085
ref: 2

NUT 8MM

€ 3.00

3

0832121088
ref: 3

LOCK WASHER

€ 2.00

4

0110708258
ref: 4

BOLT

€ 2.50

5

0142108208
ref: 5

STUD 8X20

€ 2.00

6-1

1431048750
ref: 6-1

MUFFLER, 1ST

€ 320.00

6-2

NOTUSED
ref: 6-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7

1477117300
ref: 7

CONNECTOR,MUFFLER

€ 10.00

8-1

NOTUSED
ref: 8-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8-2

1433048710
ref: 8-2
E2, E4, E15, E17, E1

MUFFLER, 2ND

€ 100.50

9

1477041101
ref: 9

DAMPER,MUFFLER SUPPORT

€ 13.50

10

0110708168
ref: 10

BOLT

€ 2.00

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

0831022088
ref: 12

NUT 8MM

€ 2.00

13

0832211088
ref: 13

WASHER

€ 2.00

14

0831022088
ref: 14

NUT 8MM

€ 2.00

15

0832121088
ref: 15

LOCK WASHER

€ 2.00

16

1477048700
ref: 16

BUSH

€ 12.50

17

0932012026
ref: 17

CUSHION

€ 8.00

18

0918008102
ref: 18

SPACER (8.6X12X17.5)

€ 3.00

19

0110708358
ref: 19

BOLT

€ 3.50

20

0832121088
ref: 20

LOCK WASHER

€ 2.00

21

0916008002
ref: 21

WASHER (8.5X29X1.6)

€ 2.00

22

1478148700
ref: 22

COVER,MUFFLER

€ 8.50

23

0214206088
ref: 23

SCREW, PLATE

€ 1.00
