WIRING HARNESS

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

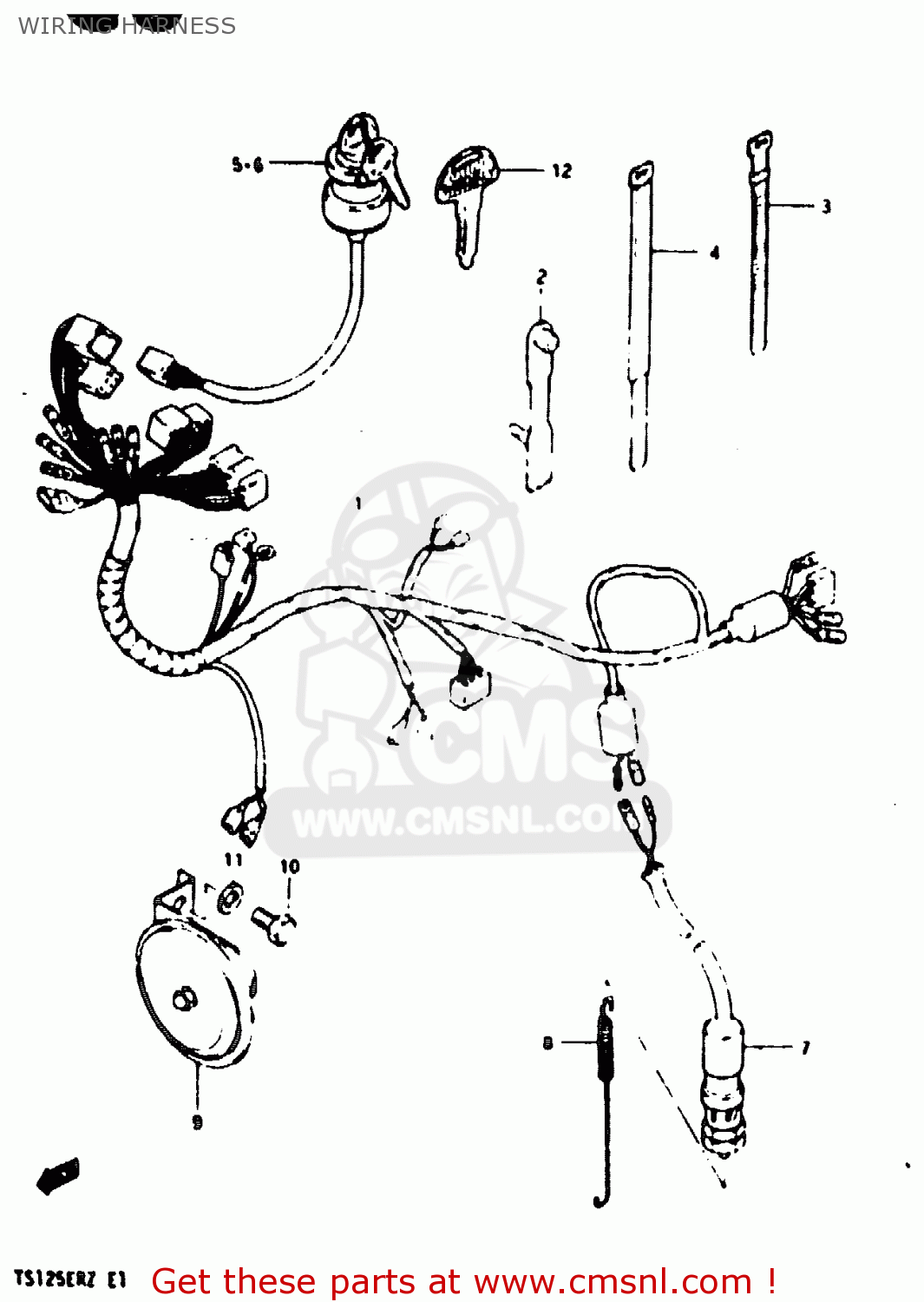

Wiring harness diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

3661048710
ref: 1-2
E2, E4, E15, E17, E1

WIRING HARNESS

€ 107.50

0940705403
ref: 2

CLAMP,L:88

€ 1.50

0940712402
ref: 3

CLAMP(L:120)

€ 3.00

4-1

0940711301
ref: 4-1

CLAMP L:110

€ 6.00

4-2

0940718301
ref: 4-2

CLAMP

€ 6.00

4-3

0940725301
ref: 4-3

CLAMP(L:250)

€ 4.50

NOTUSED
ref: 5

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3711046241
ref: 6
E2, E4, E15, E17, E1

SWITCH, IGNITION

€ 71.00

3774004571
ref: 7

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

0944306027
ref: 8

SPRING

€ 4.50

9-1

NOTUSED
ref: 9-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9-2

3850048710
ref: 9-2
E2, E15, E17

HORN ASSY

€ 42.00

9-3

NOTUSED
ref: 9-3
NOT USED

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0110706128
ref: 10

BOLT

€ 2.00

0832221068
ref: 11

WASHER

€ 2.00

3714519710
ref: 12
OPT

KEY,BLANK

€ 13.00
