FRONT FENDER

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

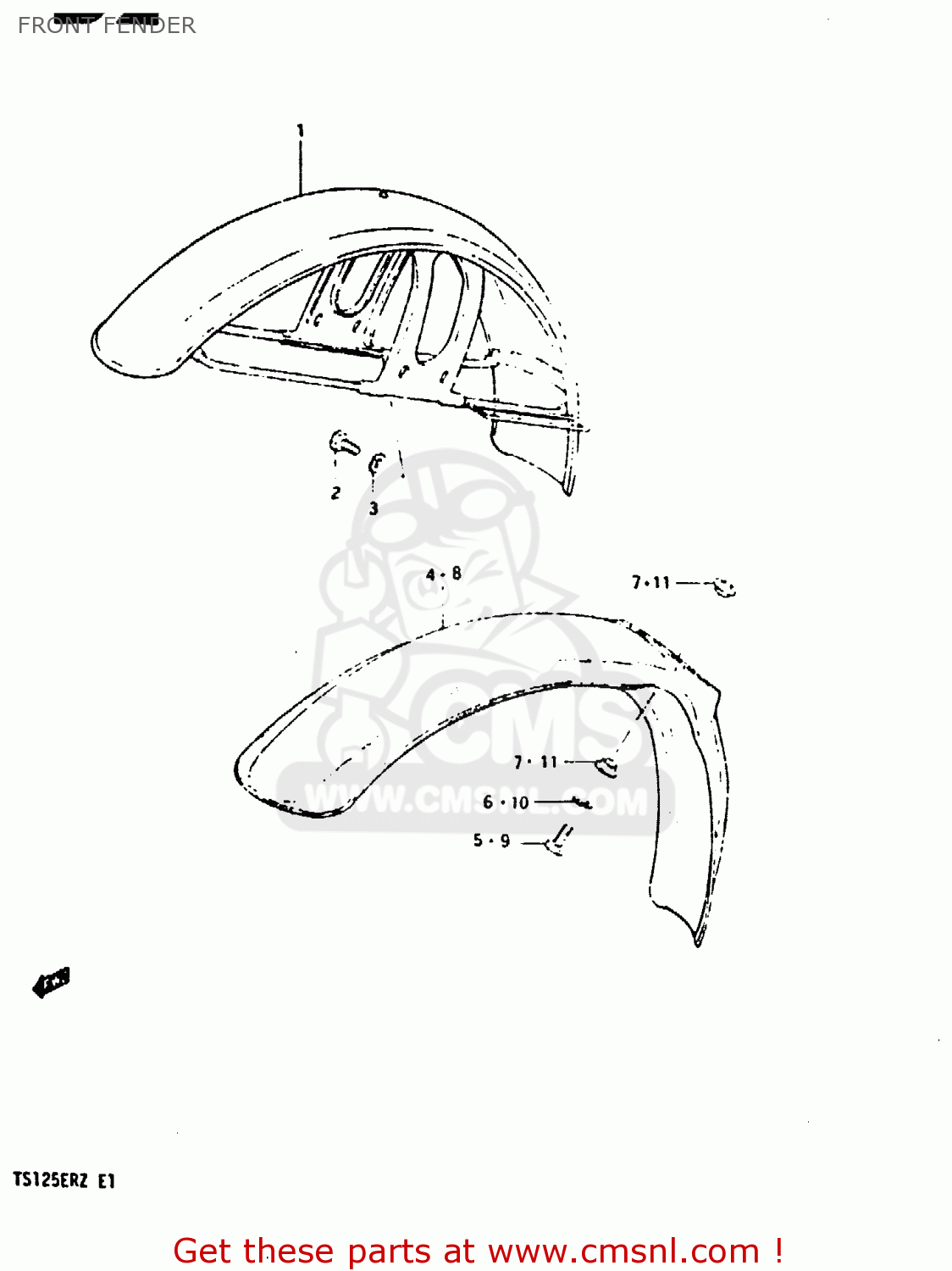

Front fender diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

FRONT FENDER TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

FRONT FENDER TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

1

5311032401
ref: 1

FENDER,FR

€ 190.00

2

0110708168
ref: 2

BOLT

€ 2.00

3

0832121088
ref: 3

LOCK WASHER

€ 2.00

4-1

5311138250019
ref: 4-1

FENDER, FRONT (BLACK)

€ 0.00

4-2

531113825007P
ref: 4-2

FENDER, FRONT (RED)

€ 83.50

4-3

5311138250163
ref: 4-3

FENDER, FRONT (YELLOW)

€ 77.50

4-4

531113825008Y
ref: 4-4

FENDER, FRONT (BLUE)

€ 77.50

5

0110706168
ref: 5

BOLT, UPPER

€ 3.00

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

0918006048
ref: 7

SPACER

€ 2.00

8-1

NOTUSED
ref: 8-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8-2

NOTUSED
ref: 8-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8-3

NOTUSED
ref: 8-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8-4

NOTUSED
ref: 8-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

NOTUSED
ref: 10

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
