HEADLAMP (E2)

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

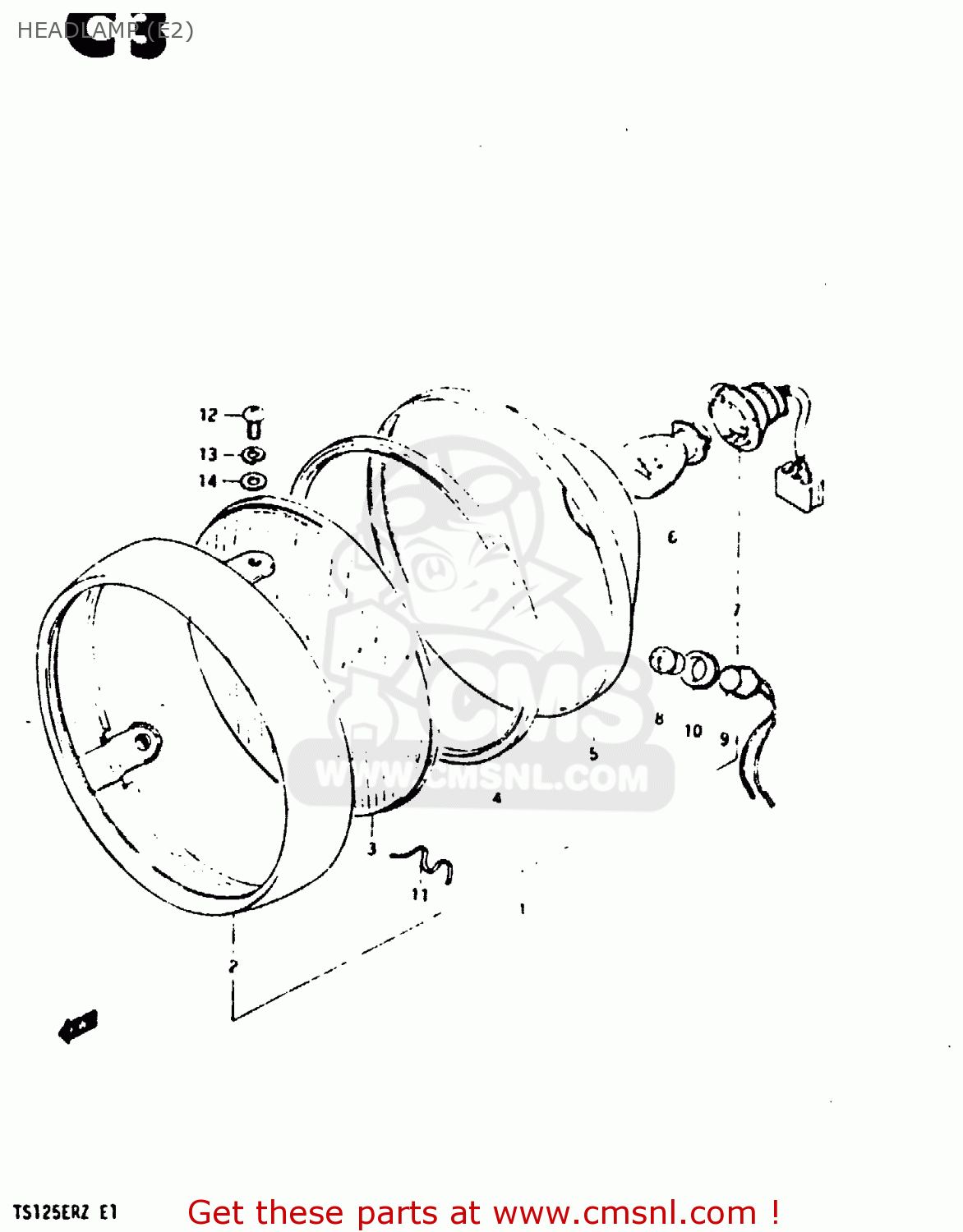

Headlamp (e2) diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

3510039150
ref: 1

HEADLAMP ASSY

€ 42.00

3511139110
ref: 2

RIM

€ 26.00

3512425324
ref: 3

LENS

€ 18.50

3512527222
ref: 4

GASKET (NAS)

€ 5.50

3512325622
ref: 5

REFLECTOR

€ 21.00

0947112033
ref: 6

BULB 12V35/35W

€ 6.00

3517136621
ref: 7

SOCKET

€ 15.50

0947112001
ref: 8

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

3611830691
ref: 9

SOCKET

€ 12.00

3611608421
ref: 10

SEAL,PARKING BULB

€ 3.00

3512843020
ref: 11

SPRING

€ 4.00

0211204128
ref: 12

SCREW

€ 1.50

0832121048
ref: 13

LOCK WASHER

€ 2.00

0832221048
ref: 14

WASHER

€ 2.00
