FUEL TANK

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

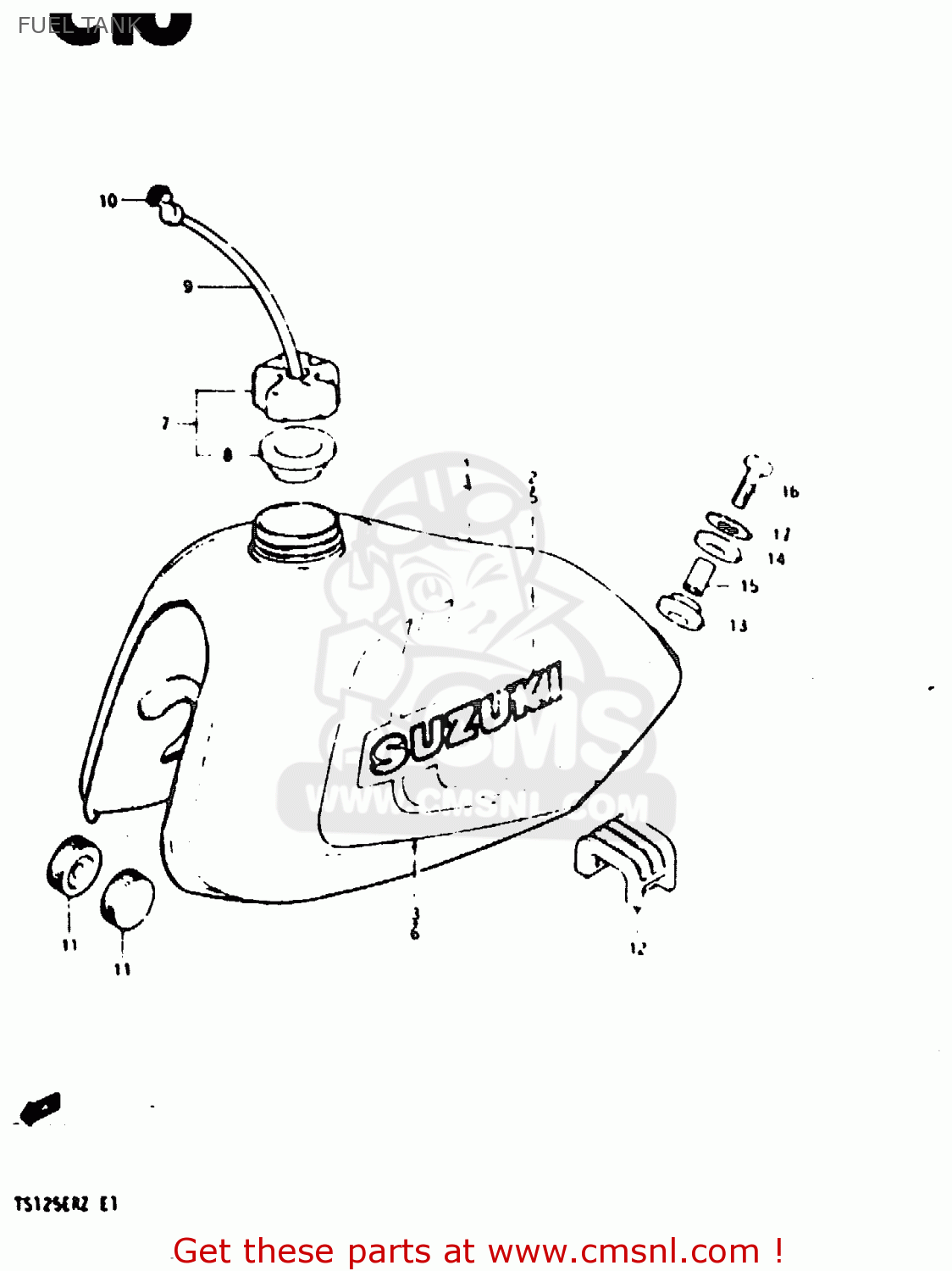

Fuel tank diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

4410048710163
ref: 1

TANK, FUEL (YELLOW)

€ 206.50

681114670003T
ref: 2

EMBLEM (BLUE)

€ 0.00

681104870061T
ref: 3

TAPE SET

€ 0.00

4-1

441004871007P
ref: 4-1

TANK, FUEL (RED)

€ 206.50

4-2

4410048710019
ref: 4-2

TANK, FUEL (BLACK)

€ 415.00

4-3

441004871008Y
ref: 4-3

TANK, FUEL (BLUE)

€ 383.50

6811146700064
ref: 5

EMBLEM(WHITE)

€ 13.00

681104870085L
ref: 6

TAPE SET,FUEL TANK

€ 23.00

4420005812
ref: 7

CAP SET,FUEL TANK

€ 19.50

4424805210
ref: 8

GASKET (NAS)

€ 4.50

0934305129
ref: 9

HOSE

€ 13.00

4448632101
ref: 10

CLAMP,FUEL TANK BREATHER HOSE

€ 3.50

0932910016
ref: 11

CUSHION

€ 3.00

4454548700
ref: 12

CUSHION,FUEL TANK UPR

€ 5.50

4454148700
ref: 13

CUSHION,FUEL TANK RR NO.1

€ 3.00

4454248700
ref: 14

CUSHION,FUEL TANK RR NO.2

€ 2.50

0918008067
ref: 15

SPACER(8.5X12X19)

€ 2.50

0110708308
ref: 16

BOLT (8X30)

€ 2.50

0916008002
ref: 17

WASHER (8.5X29X1.6)

€ 2.00
