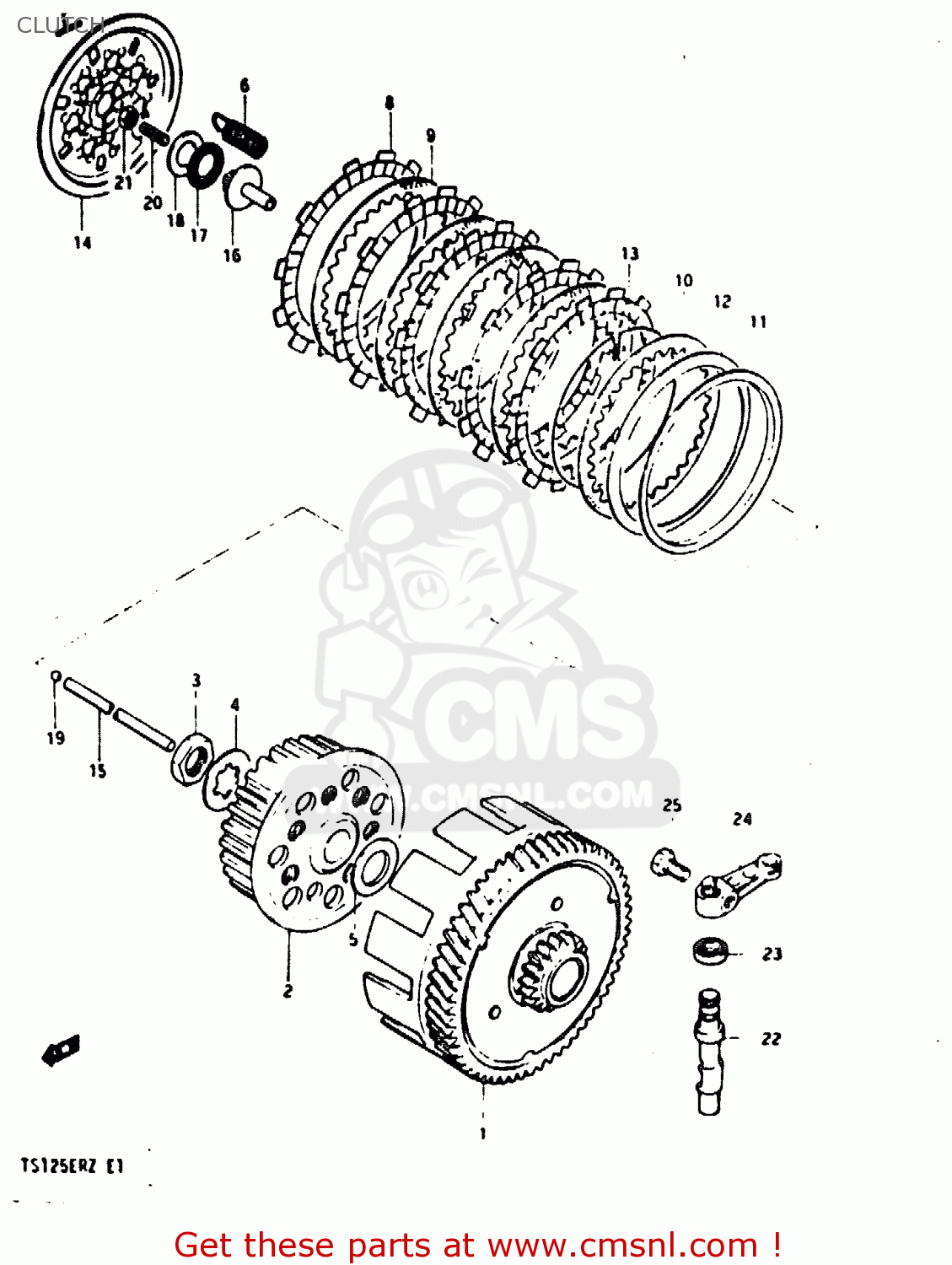

CLUTCH

ref

part #

description

quantity

1

2120048700
ref: 1
NT:57/17

GEAR, PRIMARY DRIVEN

€ 134.50

2

2141148700
ref: 2

HUB,CLUTCH SLEEVE

€ 46.00

3

0914016001
ref: 3

NUT

€ 4.50

4

0916717002
ref: 4

WASHER,LOCK

€ 2.00

5

0821117283
ref: 5

WASHER

€ 2.00

6

0944312020
ref: 6

SPRING

€ 3.50

7

0926102001
ref: 7

PIN(2.5X19.8)

€ 1.50

8

2144128301
ref: 8

PLATE,CLUTCH DRIVE

€ 8.50

9

2145128000
ref: 9

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

10

2145136200
ref: 10

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 5.00

11

2147136200
ref: 11

SEAT,WAVE WASHER

€ 43.50

12

0916498001
ref: 12

WASHER

€ 8.50

13

2148139301
ref: 13

RING,STOPPER

€ 5.00

14

2146148700
ref: 14

PLATE,CLUTCH PRESSURE

€ 22.00

15

2311114100
ref: 15

ROD,CLUTCH PUSH

€ 9.00

16

2312114101
ref: 16

PIECE,CLUTCH PUSH

€ 16.50

17

0926315003
ref: 17

BEARING(15X28X2)

€ 7.00

18

0916015015
ref: 18

WASHER

€ 4.00

19

0611107004
ref: 19

BALL

€ 1.50

20

0913406010
ref: 20

SCREW(6X25)

€ 3.00

21

0831022068
ref: 21

NUT 6MM

€ 2.50

22

2326114101
ref: 22

CAMSHAFT,CLUTCH RELEASE

€ 38.00

23

0928510002
ref: 23

OIL SEAL

€ 3.50

24

2327114101
ref: 24

ARM,CLUTCH RELEASE

€ 34.50

25

0110706168
ref: 25

BOLT, UPPER

€ 3.00
