CRANKCASE

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

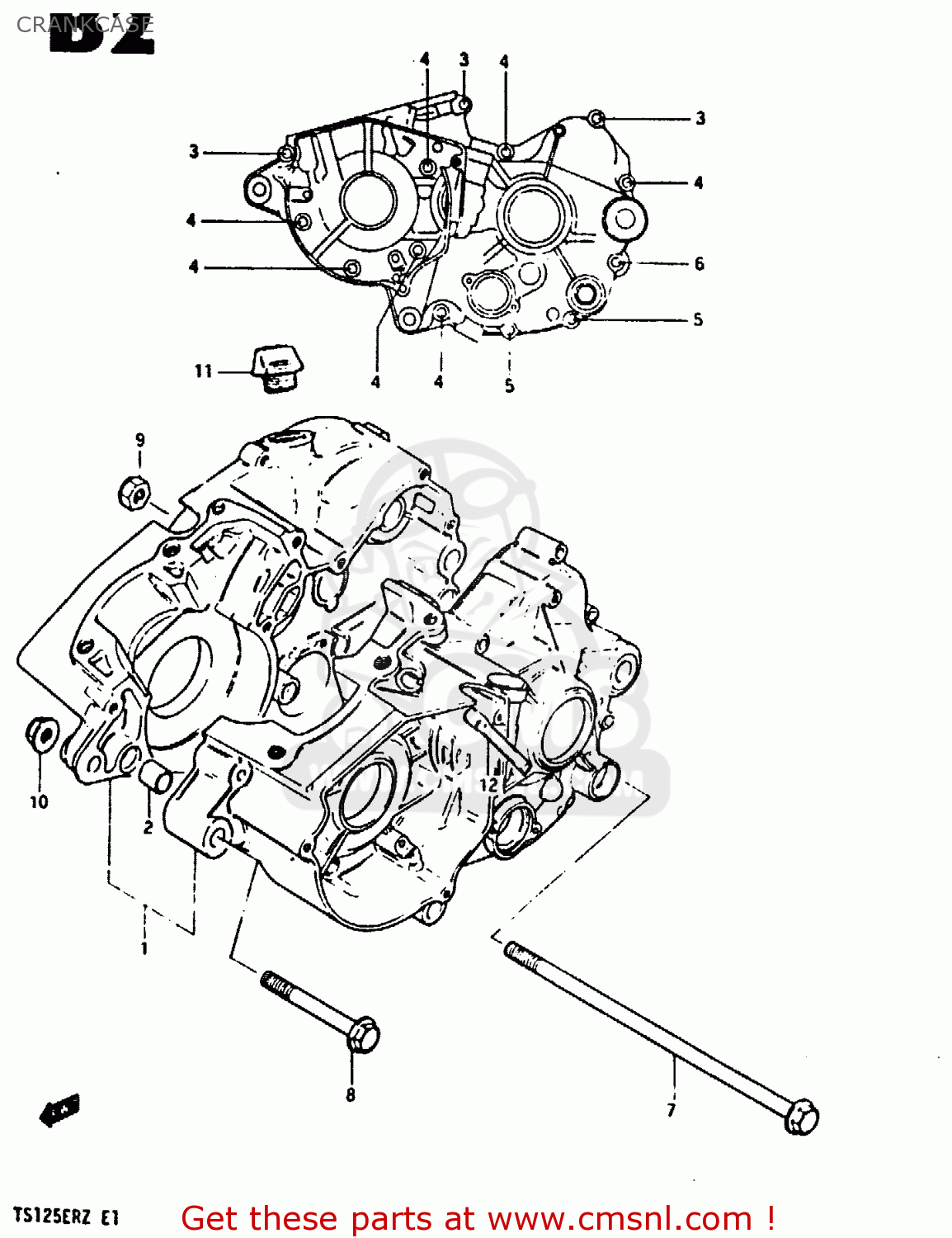

Crankcase diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

1130048700
ref: 1

CRANKCASE SET

€ 439.00

0920613001
ref: 2

PIN

€ 2.50

0211206408
ref: 3

SCREW

€ 2.00

0211206458
ref: 4

SCREW (6X45)

€ 2.00

0211206658
ref: 5

SCREW 6X65

€ 2.00

0211206808
ref: 6

SCREW 6X80

€ 3.00

0910308087
ref: 7

BOLT(8X200)

€ 12.50

0151708658
ref: 8

BOLT 8X65

€ 3.00

0831921088
ref: 9

NUT

€ 1.50

0831931088
ref: 10

NUT

€ 2.50

0925920003
ref: 11

PLUG,OIL FILTER

€ 8.00

2484048700
ref: 12

HOSE, BREATER

€ 7.00
