FRAME

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

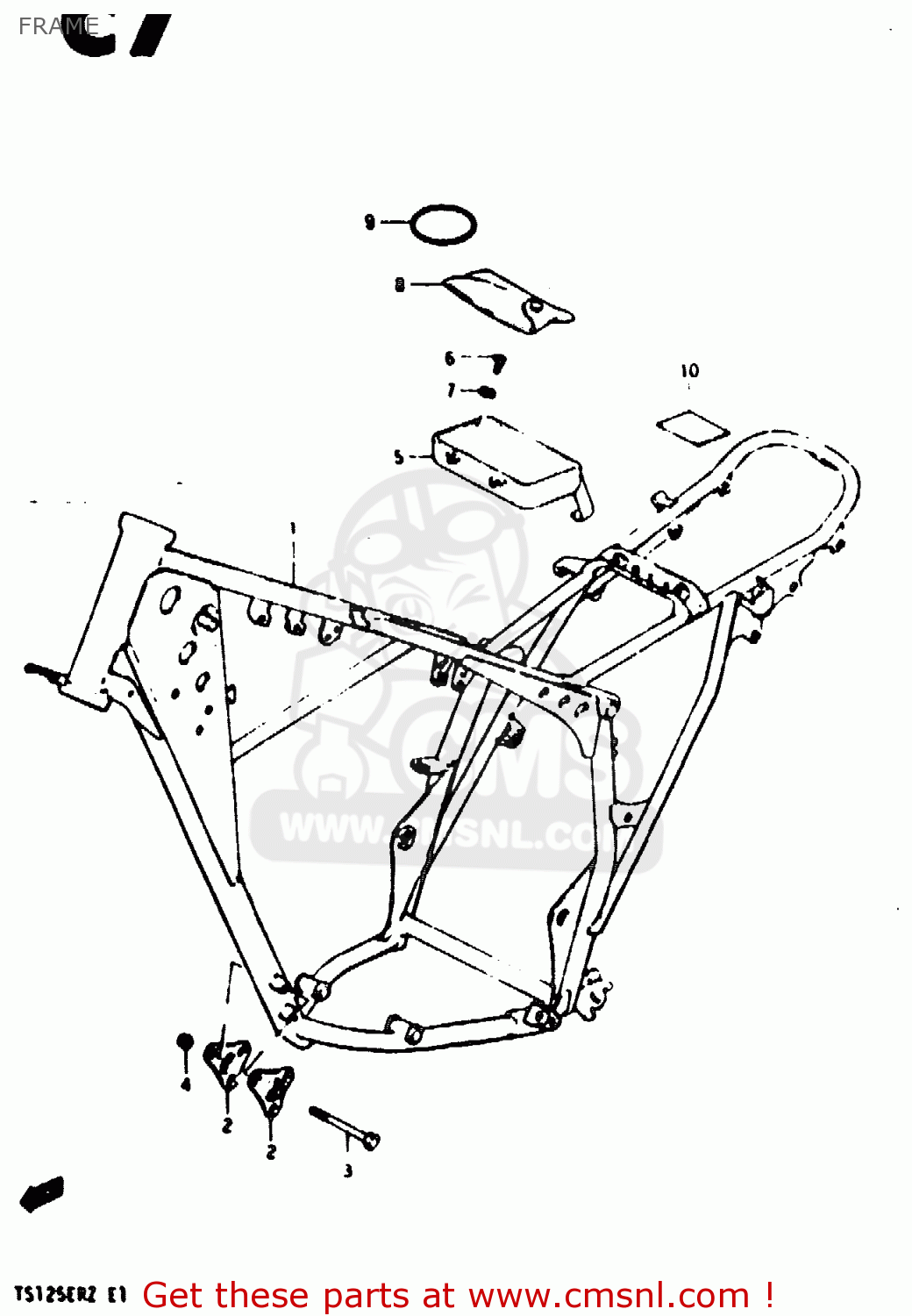

Frame diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

1-1

FRAME (BLACK)

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4199148700
ref: 2

PLATE,ENG MTG

€ 0.00

0151708658
ref: 3

BOLT 8X65

€ 3.00

0831931088
ref: 4

NUT

€ 2.50

4155148700
ref: 5

HOLDER,TOOL

€ 0.00

0211205128
ref: 6

SCREW

€ 2.50

0916005017
ref: 7

WASHER (5.5X16X1.2)

€ 2.50

0980004800
ref: 8

TOOL SET

€ 43.00

0928076005
ref: 9

O RING(D:3.5,ID:76)

€ 3.50

9498248500
ref: 10

TAPE,TOOL BAG

€ 9.00
