HEADLAMP HOUSING

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

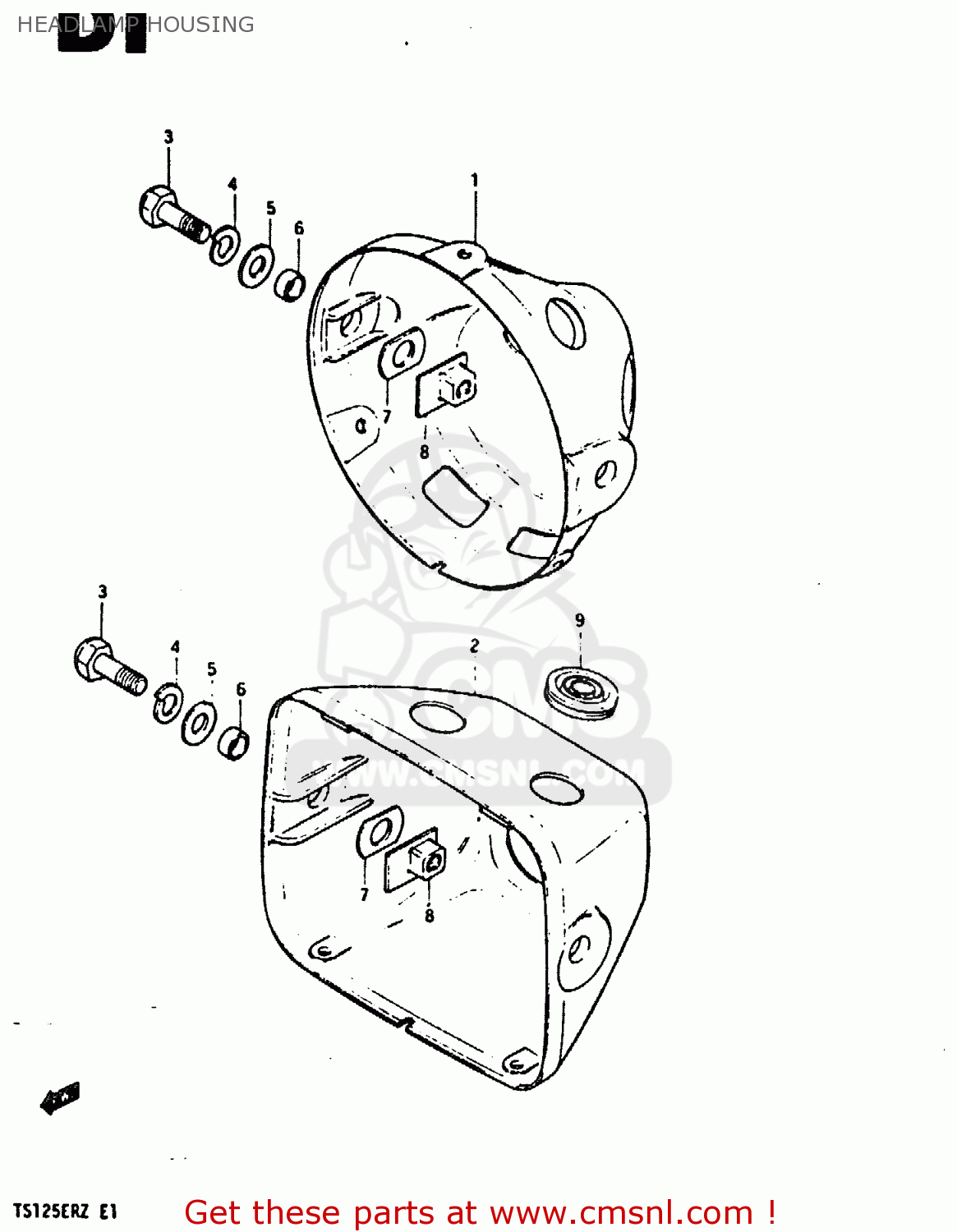

Headlamp housing diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

HEADLAMP HOUSING TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)
HEADLAMP HOUSING TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)
HEADLAMP HOUSING TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)
prices are in EUR
ref
part #
description
quantity
1
5181138200291
ref: 1
HOUSING, HEADLAMP (BLACK)
€ 40.00
2
NOTUSED
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0120408257
ref: 3
BOLT
0120408257
€ 2.00
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
0832211088
ref: 5
WASHER
0832211088
€ 2.00
6
0918008030
ref: 6
SPACER (8.8X12X7)
0918008030
€ 3.50
7
0932912002
ref: 7
CUSHION
0932912002
€ 3.00
8
5186045000
ref: 8
PLATE,HEADLAMP HOUSING
5186045000
€ 2.00
9
5182748700
ref: 9
CUSHION
€ 4.00
