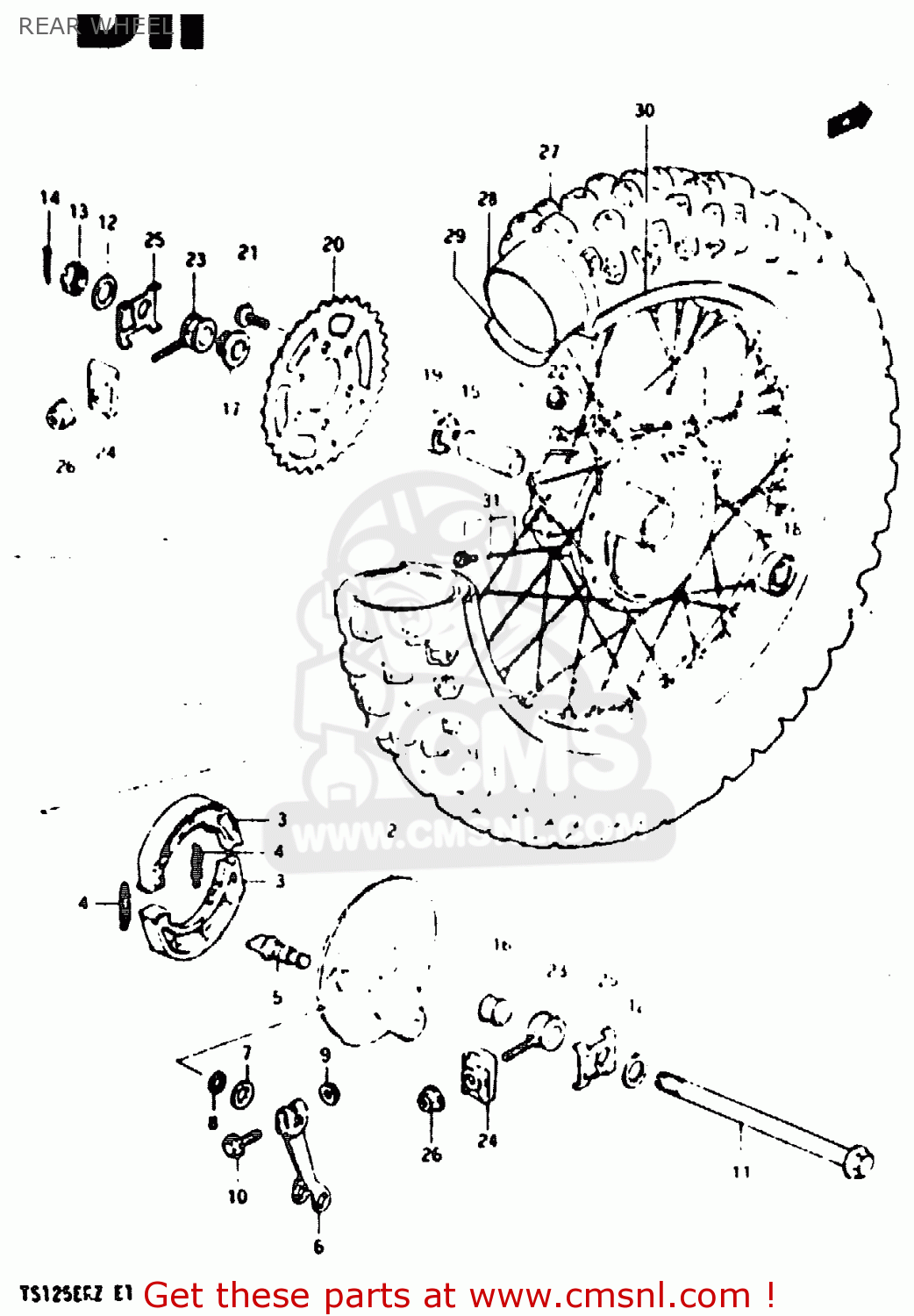

REAR WHEEL

ref

part #

description

quantity

1

6411048700
ref: 1

HUB,RR WHEEL

€ 202.50

2

6421048700
ref: 2

PANEL,REAR HUB

€ 40.50

3

5441043020
ref: 3

SHOE,BRAKE (MCA)

€ 19.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129303
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

6445139100
ref: 6

LEVER,RR BRAKE CAM

€ 48.00

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0831616068
ref: 9

NUT

€ 2.50

10

0151706358
ref: 10

BOLT 6X35

€ 2.50

11

6471105200
ref: 11

AXLE,REAR

€ 38.50

12

0832221148
ref: 12

WASHER

€ 2.00

13

0914114001
ref: 13

NUT

€ 4.50

14

0411130308
ref: 14

COTTER PIN

€ 1.50

15

0918015062
ref: 15

SPACER(15.3X21.7X97)

€ 11.00

16

6475148700
ref: 16

SPACER,REAR AXLE

€ 9.00

17

6475048700
ref: 17

SPACER,REAR AXLE

€ 9.50

18

0814362027
ref: 18

BEARING

€ 12.50

19

0812363027
ref: 19

BEARING

€ 19.00

20-1

6451148720
ref: 20-1

SPROCKET,REAR

€ 66.50

20-2

NOTUSED
ref: 20-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

21

0910308042
ref: 21

BOLT(8X31)

€ 6.50

22

0831931088
ref: 22

NUT

€ 2.50

23

6141005200
ref: 23

ADJUSTER,CHAIN

€ 8.50

24

6142138200
ref: 24

PLATE,CHAIN ADJUSTER

€ 3.50

25

6471205200
ref: 25

WASHER,CHAIN ADJUSTER GUIDE

€ 4.50

26

0831931088
ref: 26

NUT

€ 2.50

27-1

6510005211
ref: 27-1

TIRE

€ 192.50

27-2

6510048730
ref: 27-2

TIRE, REAR (4.10*18) BS

€ 96.00

28

6520018010
ref: 28

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

29

5526111010
ref: 29

PROTECTOR,INNER TUBE

€ 3.50

30

6531148700
ref: 30

RIM,RR WHEEL 1.85X18

€ 62.00

31

6532048700
ref: 31

SPOKE ASSY,RR WHEEL

€ 52.00
