REAR COMBINATION LAMP (E2, E4, E15)

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

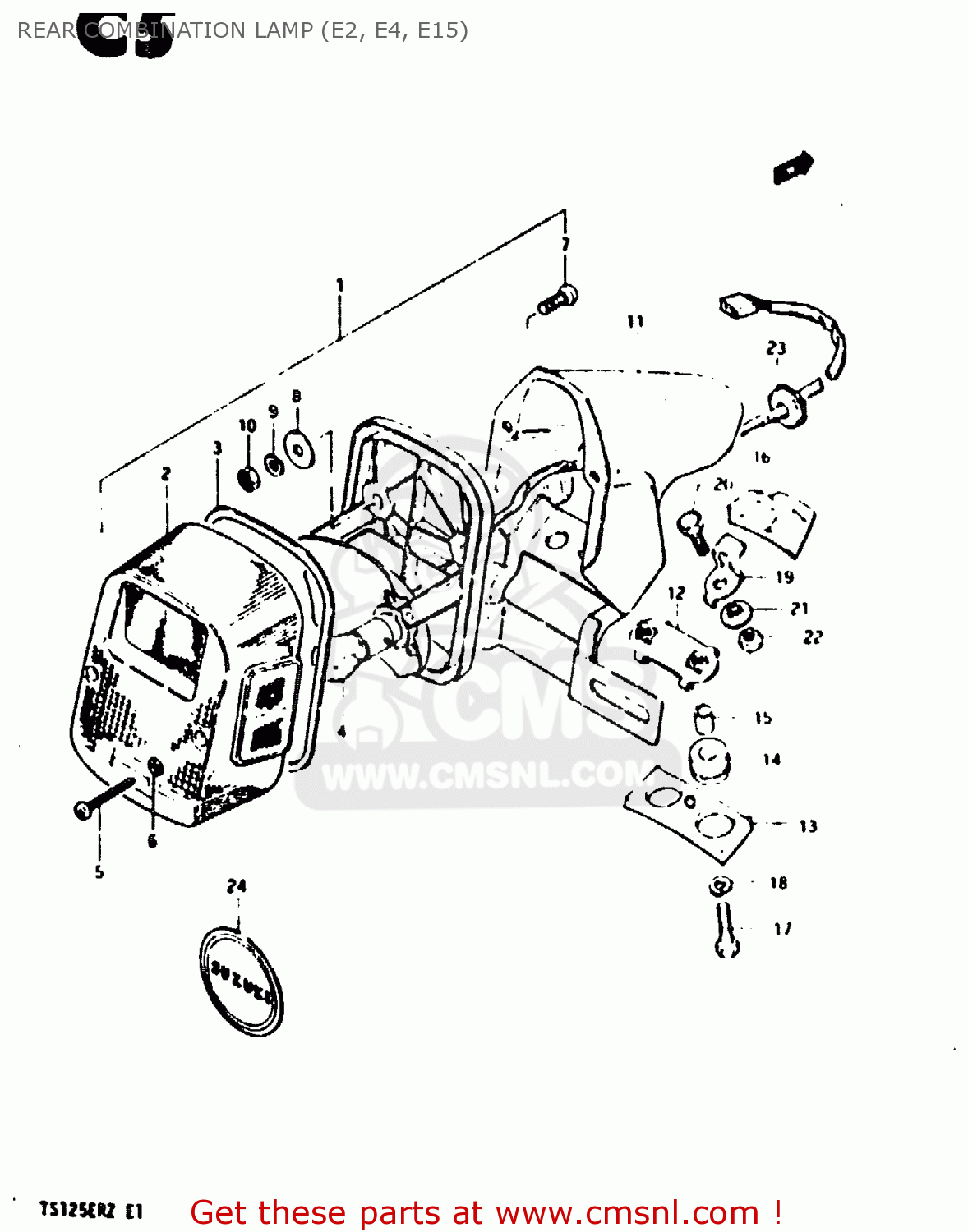

Rear combination lamp (e2, e4, e15) diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

3572038220
ref: 1

LAMP UNIT, REAR COMBINATION

€ 149.50

3571238220
ref: 2

LENS

€ 50.00

3571338210
ref: 3

GASKET (NAS)

€ 4.50

0947112057
ref: 4

BULB 12V21/5W

€ 6.00

0321104258
ref: 5

SCREW TAPP.

€ 2.00

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0211205168
ref: 7

SCREW

€ 2.50

3572736510
ref: 8

WASHER,REAR COMBINATION LAMP

€ 2.00

0832121058
ref: 9

LOCK WASHER

€ 2.00

0831011058
ref: 10

NUT

€ 2.50

3573038210
ref: 11

BRACKET UNIT,TAIL LAMP

€ 70.50

3571638210
ref: 12

PLATE

€ 11.50

3576538210
ref: 13

CUSHION

€ 3.50

3576530950
ref: 14

CUSHION

€ 18.00

3576638210
ref: 15

SPACER

€ 3.00

3571738210
ref: 16

CUSHION,REAR COMBINATION LAMP

€ 6.50

0110706258
ref: 17

BOLT

€ 2.00

0832121068
ref: 18

LOCK WASHER

€ 2.50

3579337201
ref: 19

PLATE,RR COMBINATION LAMP

€ 2.00

0110706168
ref: 20

BOLT, UPPER

€ 3.00

0916906025
ref: 21

WASHER,LOCK

€ 3.00

0831626068
ref: 22

NUT 6MM

€ 2.00

0930809004
ref: 23

GROMMET

€ 0.00

3599545110
ref: 24
E15

EMBLEM, REAR

€ 0.00
