ELECTRICAL

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

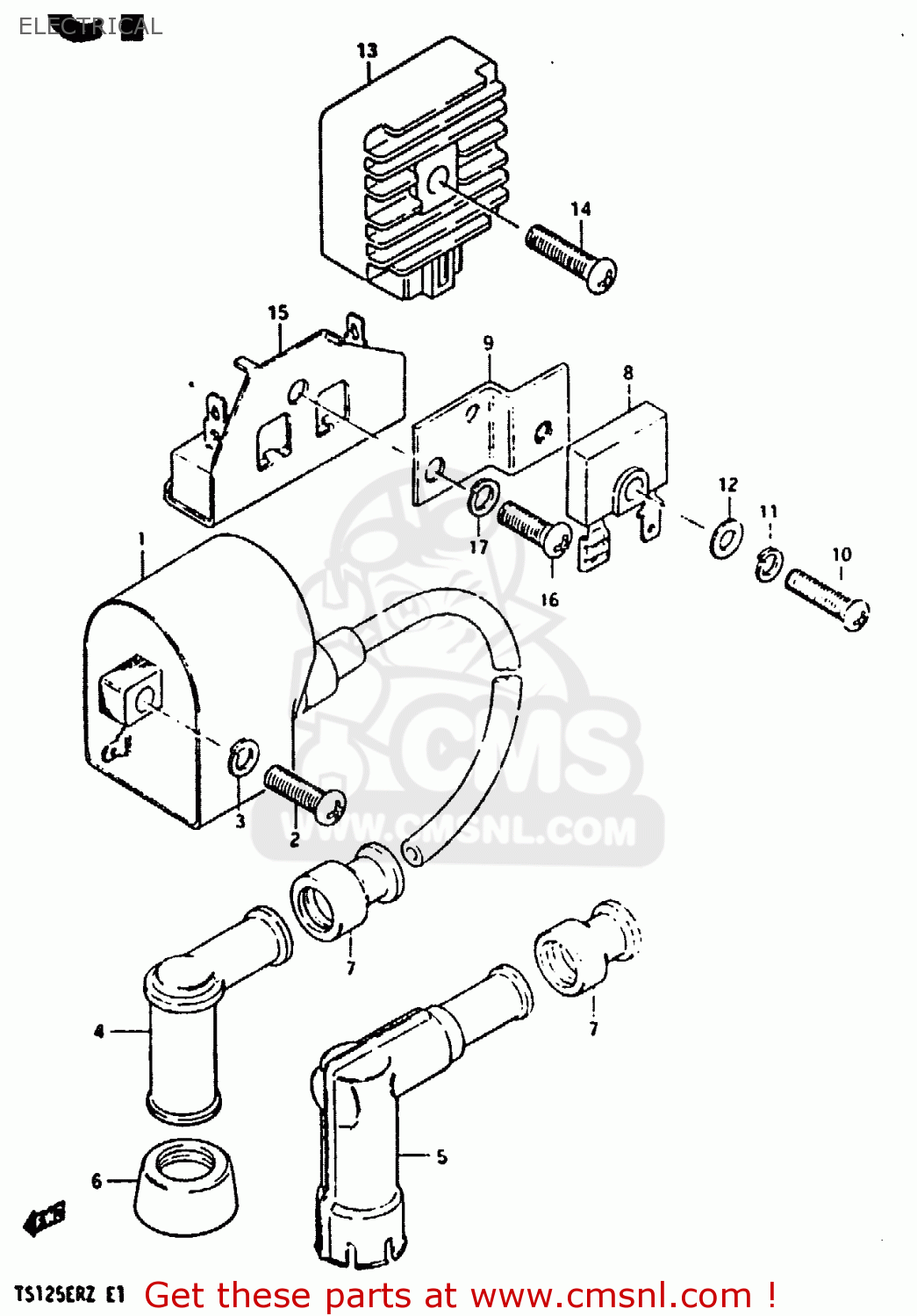

Electrical diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

3341046710
ref: 1

UNIT & COIL ASSY,IGNITION

€ 166.00

0211206208
ref: 2

SCREW

€ 2.00

0832121068
ref: 3

LOCK WASHER

€ 2.50

NOTUSED
ref: 4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3351039110
ref: 5
E2, E4, E15, E17, E1

CAP,SPARK PLUG

€ 61.50

NOTUSED
ref: 6

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3354298000
ref: 7

SEAL,SPARK PLU

€ 4.50

3280019063
ref: 8

RECTIFIER ASSEMBLY

€ 10.50

3283148700
ref: 9

PLATE, RECTIFIER

€ 0.00

0211205208
ref: 10

SCREW 5X20

€ 3.00

0832121058
ref: 11

LOCK WASHER

€ 2.00

0832221058
ref: 12

WASHER

€ 2.50

3280048720
ref: 13
E2, E4, E15, E17, E1

RECTIFIER ASSY,REGULATOR

€ 91.50

0211206258
ref: 14

SCREW

€ 2.00

NOTUSED
ref: 15

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

NOTUSED
ref: 16

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

NOTUSED
ref: 17

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

ELECTRICAL

all assemblies
