REAR BRAKE

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

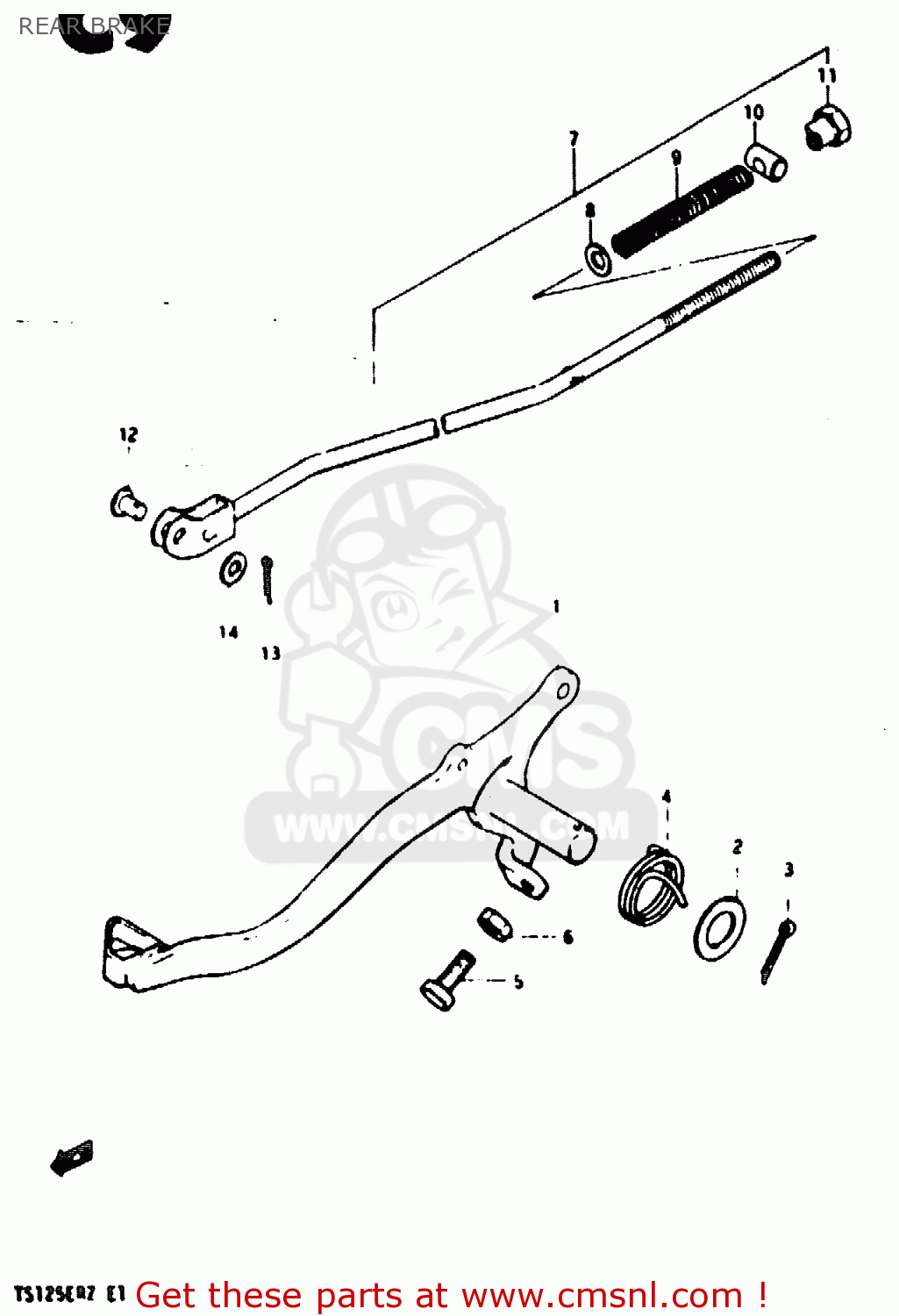

Rear brake diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

4311048701
ref: 1

PEDAL,BRAKE

€ 23.50

0916015002
ref: 2

WASHER(15.5X26X2.3)

€ 2.00

0411130308
ref: 3

COTTER PIN

€ 1.50

0944831025
ref: 4

SPRING

€ 4.50

0910006009
ref: 5

BOLT(6X23)

€ 1.50

0831011068
ref: 6

NUT

€ 2.50

4330048700
ref: 7

ROD ASSY,RR BRAKE

€ 32.50

0832221068
ref: 8

WASHER

€ 2.00

0944009004
ref: 9

SPRING

€ 2.00

0920911002
ref: 10

PIN(11X18)

€ 2.00

0915006001
ref: 11

NUT

€ 3.50

0920006039
ref: 12

PIN

€ 2.50

0411120208
ref: 13

PIN 20X20

€ 1.50

0832221068
ref: 14

WASHER

€ 2.00
