SEAT

TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

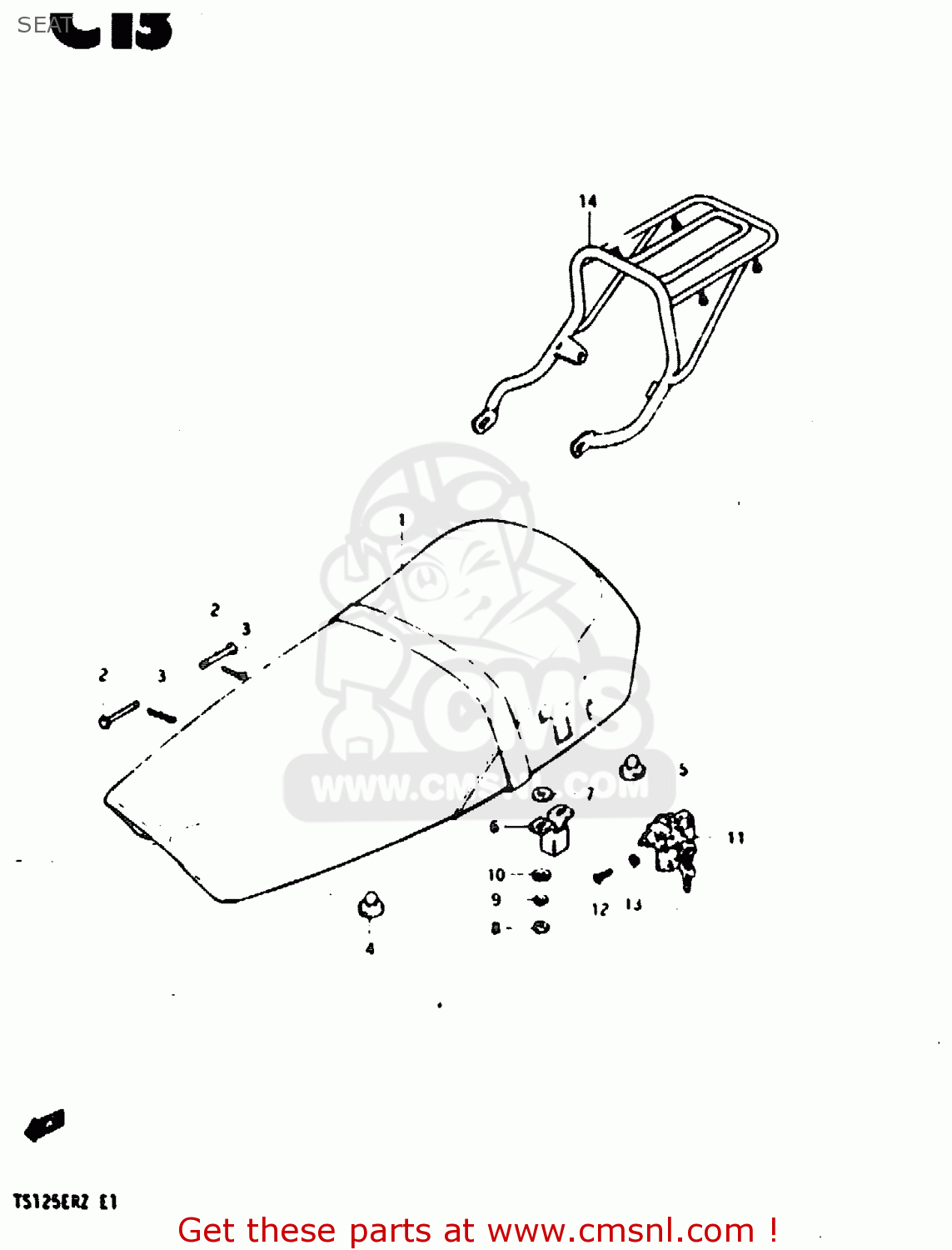

Seat diagram TS125ER 1982 (Z) (1 2 6 E08 E09 E15 E17 E18 E21 E24 E30 E31 E95)

prices are in EUR

ref

part #

description

quantity

1-1

451004870048G
ref: 1-1

SEAT ASSY (BLACK)

€ 224.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0920006018
ref: 2

PIN

€ 2.00

0411120158
ref: 3

PIN

€ 1.50

4514948700
ref: 4

CUSHION

€ 0.00

4514948710
ref: 5

CUSHION

€ 0.00

4521329300
ref: 6

PLATE,CLAMP GUIDE

€ 7.00

0916008043
ref: 7

WASHER(8.5X18X1)

€ 1.50

0831011068
ref: 8

NUT

€ 2.50

0832131068
ref: 9

LOCK WASHER

€ 2.50

0832221068
ref: 10

WASHER

€ 2.00

9570013810
ref: 11

LOCK ASSY,SEAT

€ 46.00

0211205128
ref: 12

SCREW

€ 2.50

0832121058
ref: 13

LOCK WASHER

€ 2.00

4631048700
ref: 14
OPT

CARRIER, SPORTS

€ 44.00
