CRANKCASE
TS185ER 1979 (N) (E01 E02 E04 E21 E24)

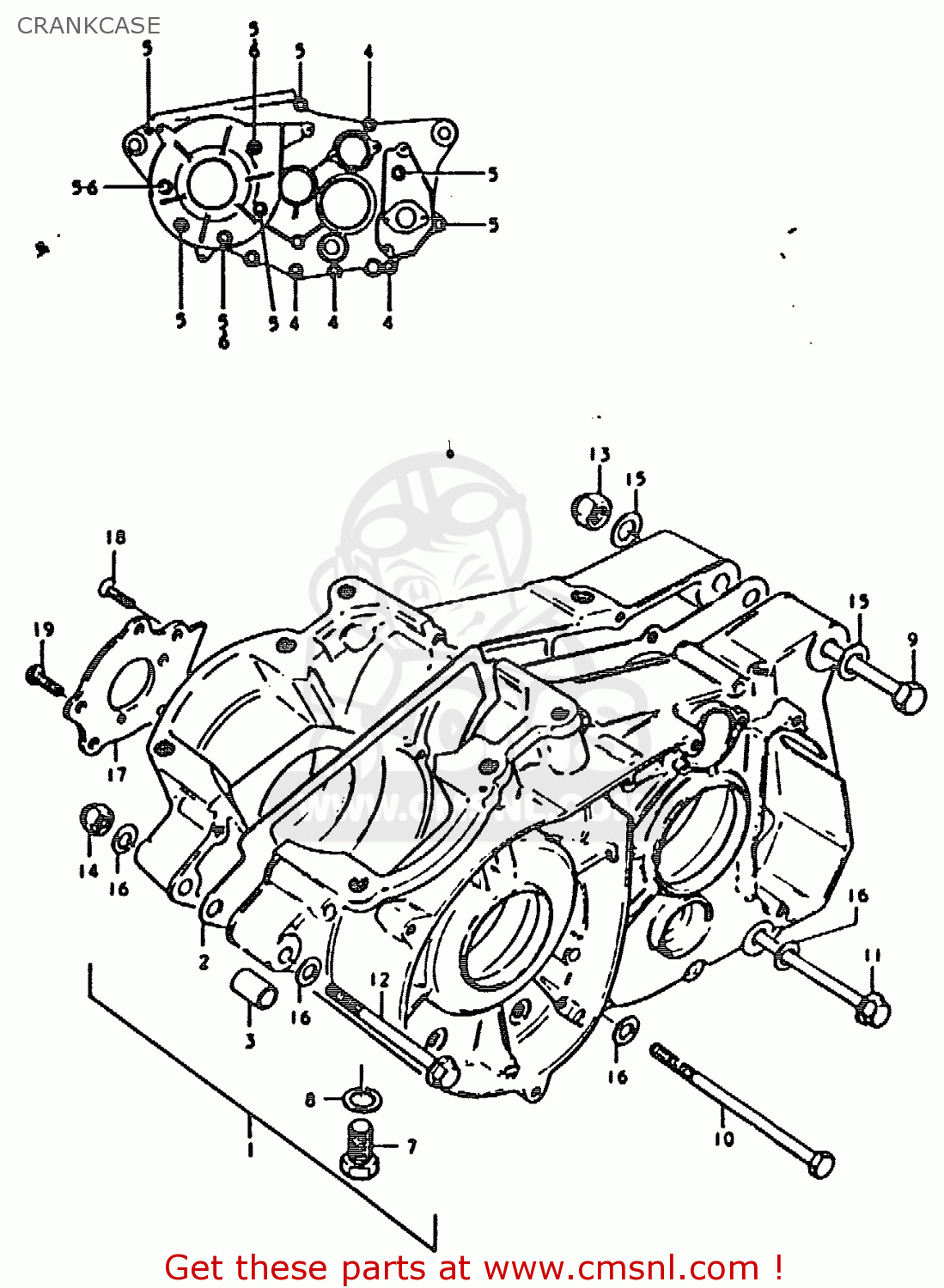

Crankcase diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)
CRANKCASE TS185ER 1979 (N) (E01 E02 E04 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1130029851
ref: 1
CRANKCASE SET
€ 513.50
2
1148129300
ref: 2
GASKET,CRANKCASE (MCA)
€ 19.00
3
0920613001
ref: 3
PIN
€ 2.50
4
0211206658
ref: 4
SCREW 6X65
€ 2.00
5
0211206458
ref: 5
SCREW (6X45)
€ 2.00
6
0832211068
ref: 6
WASHER 6MM
€ 2.00
7
0924714007
ref: 7
PLUG
€ 3.50
8
0916814004
ref: 8
GASKET(14X19.2X2) (NAS)
€ 2.50
9
0910010051
ref: 9
BOLT
€ 6.50
10
0910008142
ref: 10
BOLT(8X145)
€ 4.00
11
0910308026
ref: 11
BOLT
€ 3.50
12
0910308009
ref: 12
BOLT
€ 5.00
13
0915910011
ref: 13
NUT
€ 3.00
14
0915908020
ref: 14
NUT
€ 2.50
15
0832211108
ref: 15
WASHER
€ 2.50
16
0832211088
ref: 16
WASHER
€ 2.00
17
1252128002
ref: 17
PLATE,OIL RESERVOIR
€ 4.00
18
0212206128
ref: 18
SCREW
€ 3.00
19
0211206168
ref: 19
SCREW
€ 2.50
