PILOT LAMP

TS185ER 1979 (N) (E01 E02 E04 E21 E24)

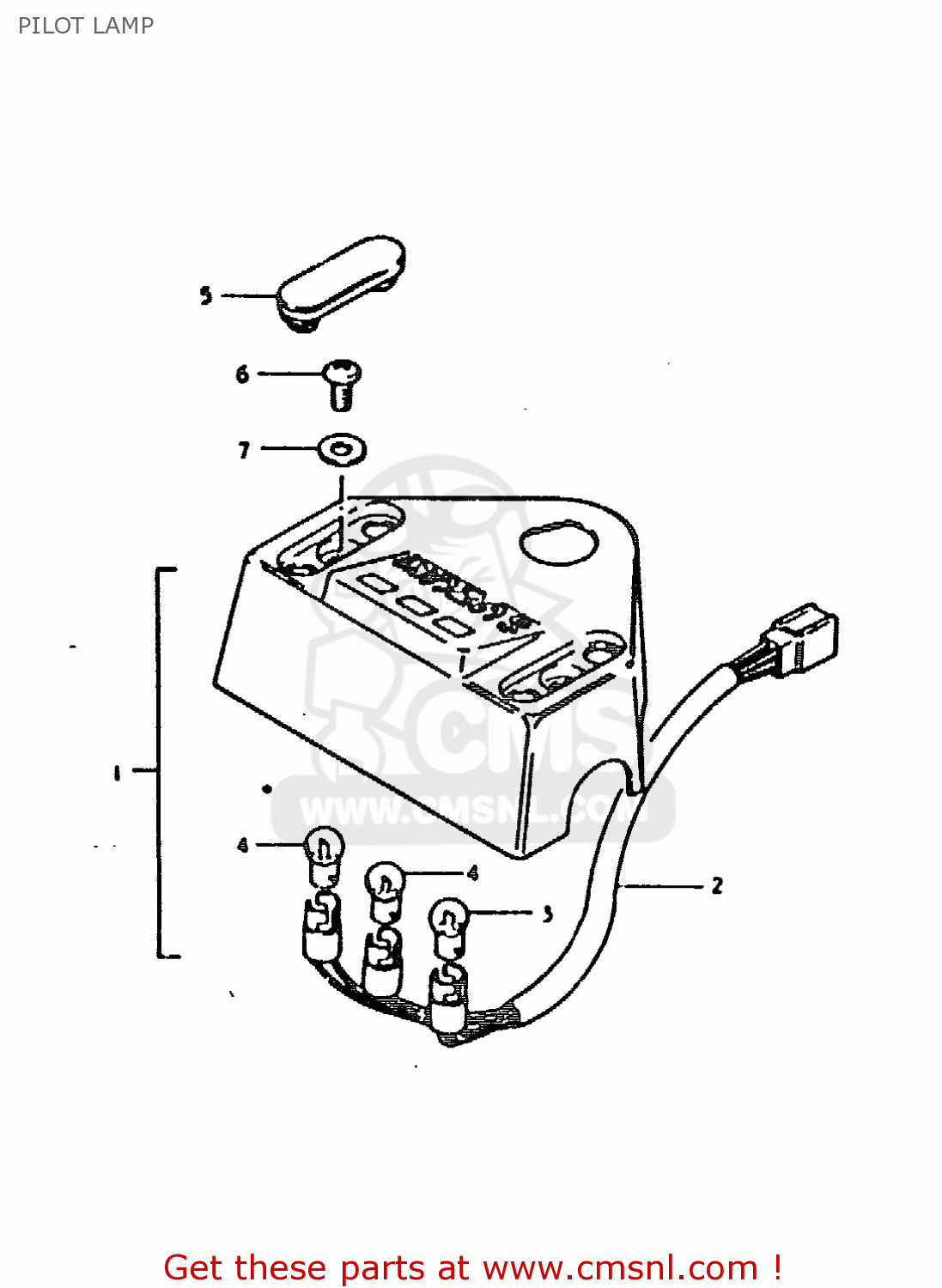

Pilot lamp diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)

PILOT LAMP TS185ER 1979 (N) (E01 E02 E04 E21 E24)

PILOT LAMP TS185ER 1979 (N) (E01 E02 E04 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

3638048500
ref: 1

CASE,PILOT BULB

€ 85.50

2

3632548500
ref: 2

SOCKET

€ 22.00

3

0947106001
ref: 3

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

4

0947106002
ref: 4

BULB(6V/3W)

€ 2.50

5

3638848500
ref: 5

CAP,PILOT BOX BOLT

€ 4.50

6

0211206128
ref: 6

SCREW 6X12

€ 2.00

7

0832221068
ref: 7

WASHER

€ 2.00
