REAR FENDER - SHOCK ABSORBAR

TS185ER 1979 (N) (E01 E02 E04 E21 E24)

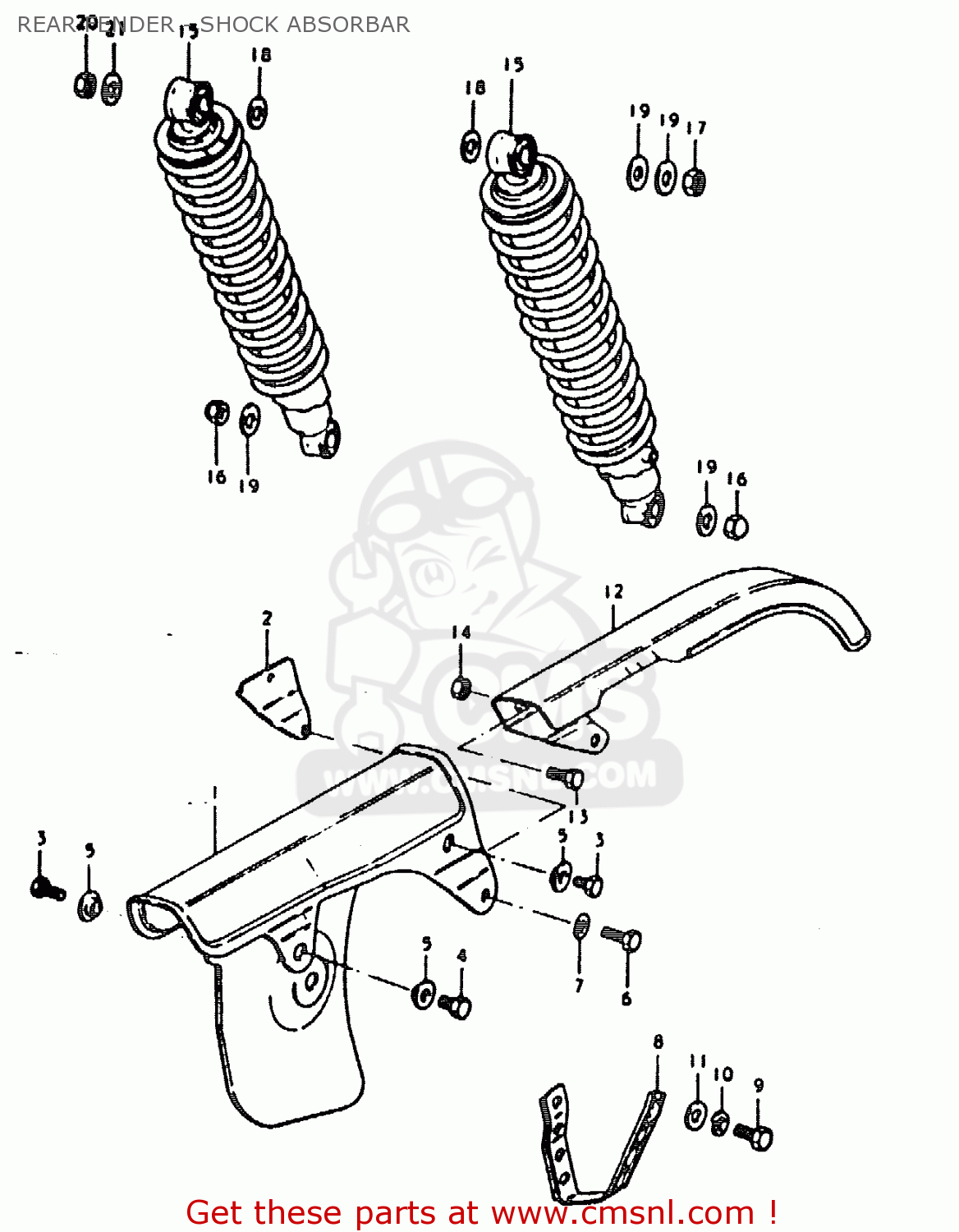

Rear fender - shock absorbar diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)

prices are in EUR

ref

part #

description

quantity

6131129900019
ref: 1

CHAIN CASE

€ 26.50

6138029900
ref: 2

REINFORCEMENT,CHAIN

€ 7.00

0910006011
ref: 3

BOLT(6X8)

€ 2.50

0110706108
ref: 4

BOLT

€ 2.00

0916906010
ref: 5

WASHER

€ 3.00

0110706168
ref: 6

BOLT, UPPER

€ 3.00

0832221068
ref: 7

WASHER

€ 2.00

6134148501
ref: 8

GUIDE,CHAIN

€ 10.00

0110708128
ref: 9

BOLT 8X12

€ 2.50

0832121088
ref: 10

LOCK WASHER

€ 2.00

0832211088
ref: 11

WASHER

€ 2.00

NOTUSED
ref: 12

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

NOTUSED
ref: 13

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

NOTUSED
ref: 14

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6210029900
ref: 15

SHOCK ABSORBER ASSY, REAR

€ 155.00

0831311108
ref: 16

NUT, LOWER LH

€ 2.50

0831012108
ref: 17

NUT

€ 2.50

0832211128
ref: 18

WASHER

€ 2.00

0916010001
ref: 19

WASHER

€ 2.00

0831012128
ref: 20

NUT

€ 3.00

0916012012
ref: 21

WASHER (12.5X24X3.2)

€ 2.50
