STAND - FOOTREST

TS185ER 1979 (N) (E01 E02 E04 E21 E24)

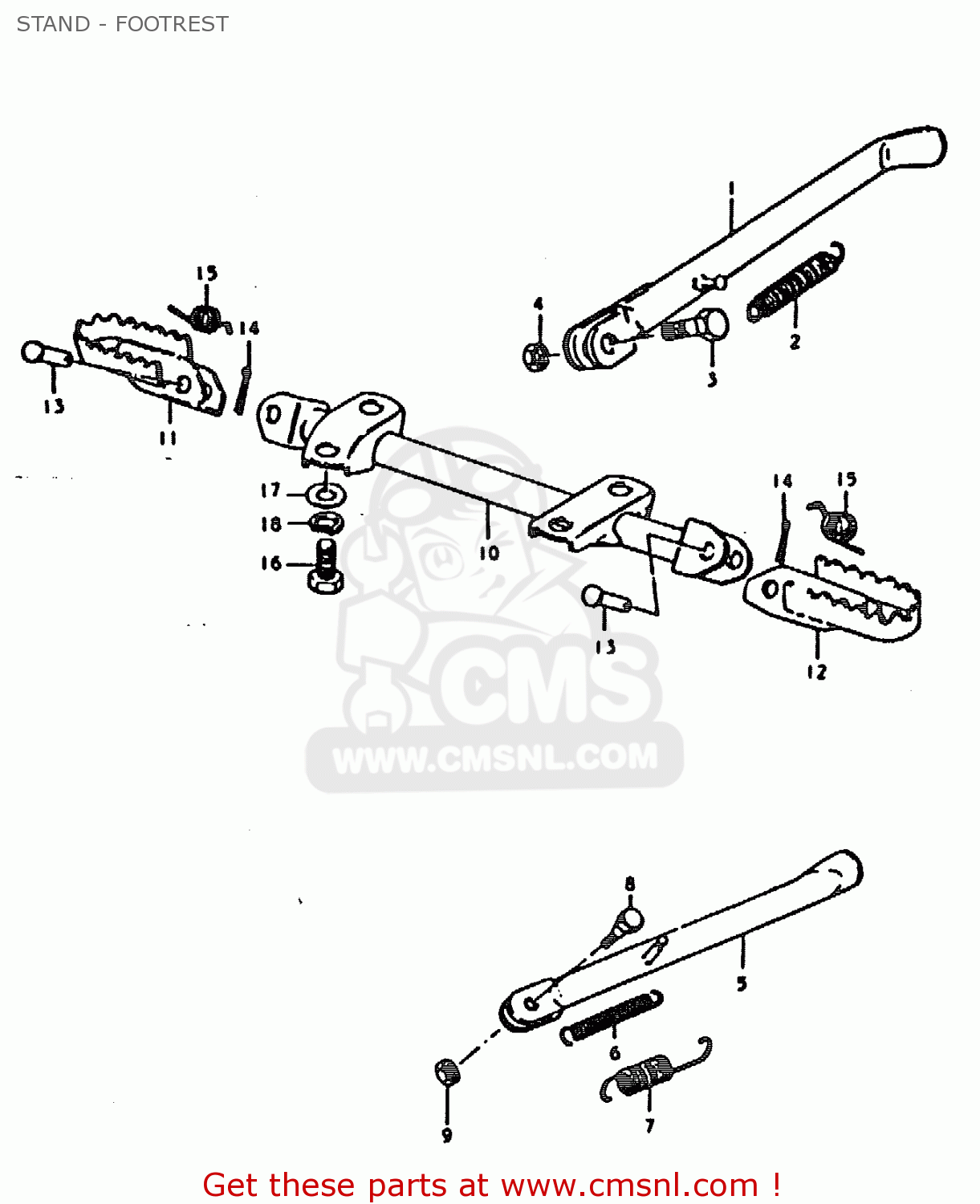

Stand - footrest diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)

STAND - FOOTREST TS185ER 1979 (N) (E01 E02 E04 E21 E24)

STAND - FOOTREST TS185ER 1979 (N) (E01 E02 E04 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

4231048500
ref: 1

STAND,PROP

€ 137.50

2

0944314005
ref: 2

SPRING

€ 6.50

3

0910010067
ref: 3

BOLT(10X30)

€ 3.50

4

0831022108
ref: 4

NUT

€ 2.50

5

NOTUSED
ref: 5

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6

NOTUSED
ref: 6

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

4351029303
ref: 10

BAR,FR FOOTREST

€ 24.50

11

4355029300
ref: 11

FOOTREST,FR,R

€ 11.50

12

4356029300
ref: 12

FOOTREST,FR,L

€ 11.50

13

0920010008
ref: 13

PIN

€ 3.00

14

0411120208
ref: 14

PIN 20X20

€ 1.50

15

0944815004
ref: 15

SPRING

€ 2.50

16

0110708208
ref: 16

BOLT

€ 3.00

17

0832211088
ref: 17

WASHER

€ 2.00

18

0832131088
ref: 18

WASHER,LOCK,8.

€ 2.00
