FUEL COCK

TS185ER 1979 (N) (E01 E02 E04 E21 E24)

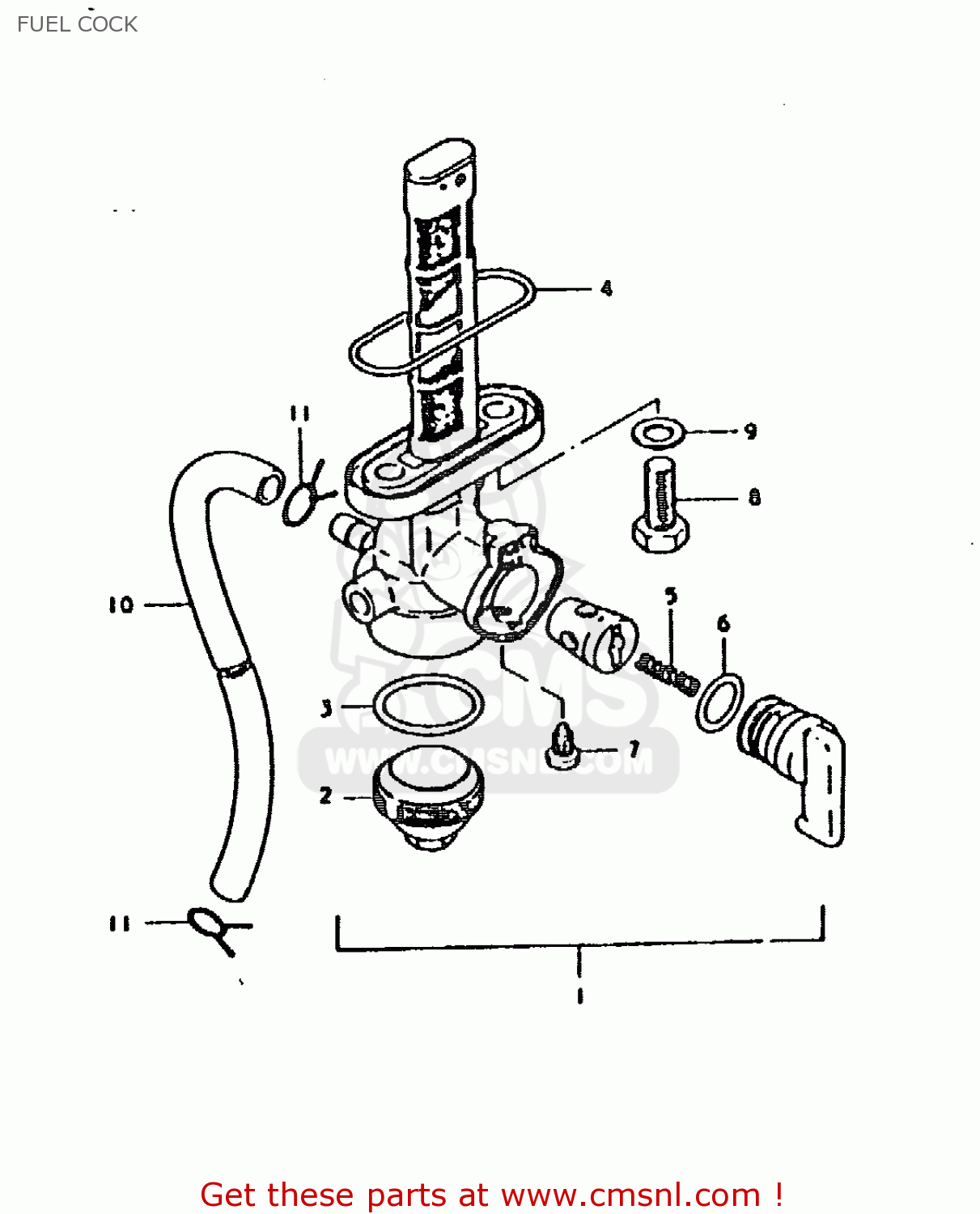

Fuel cock diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)

FUEL COCK TS185ER 1979 (N) (E01 E02 E04 E21 E24)

FUEL COCK TS185ER 1979 (N) (E01 E02 E04 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

4430022070
ref: 1

COCK ASSEMBLY,FUEL

€ 65.50

2

4434728071
ref: 2

CUP,STRAINER

€ 7.50

3

4434628070
ref: 3

GASKET,FILTER (NAS)

€ 2.50

4

4434828070
ref: 4

O RING,FUEL COCK

€ 4.50

5

4435732470
ref: 5

SPRING

€ 2.00

6

4435332470
ref: 6

O-RING

€ 7.50

7

4434341370
ref: 7

SCREW

€ 2.00

8

0912806002
ref: 8

BOLT L:16

€ 2.50

9

0916806010
ref: 9

GASKET

€ 2.00

10

0934305137
ref: 10

HOSE

€ 28.50

11

0940108402
ref: 11

CLIP

€ 1.50
