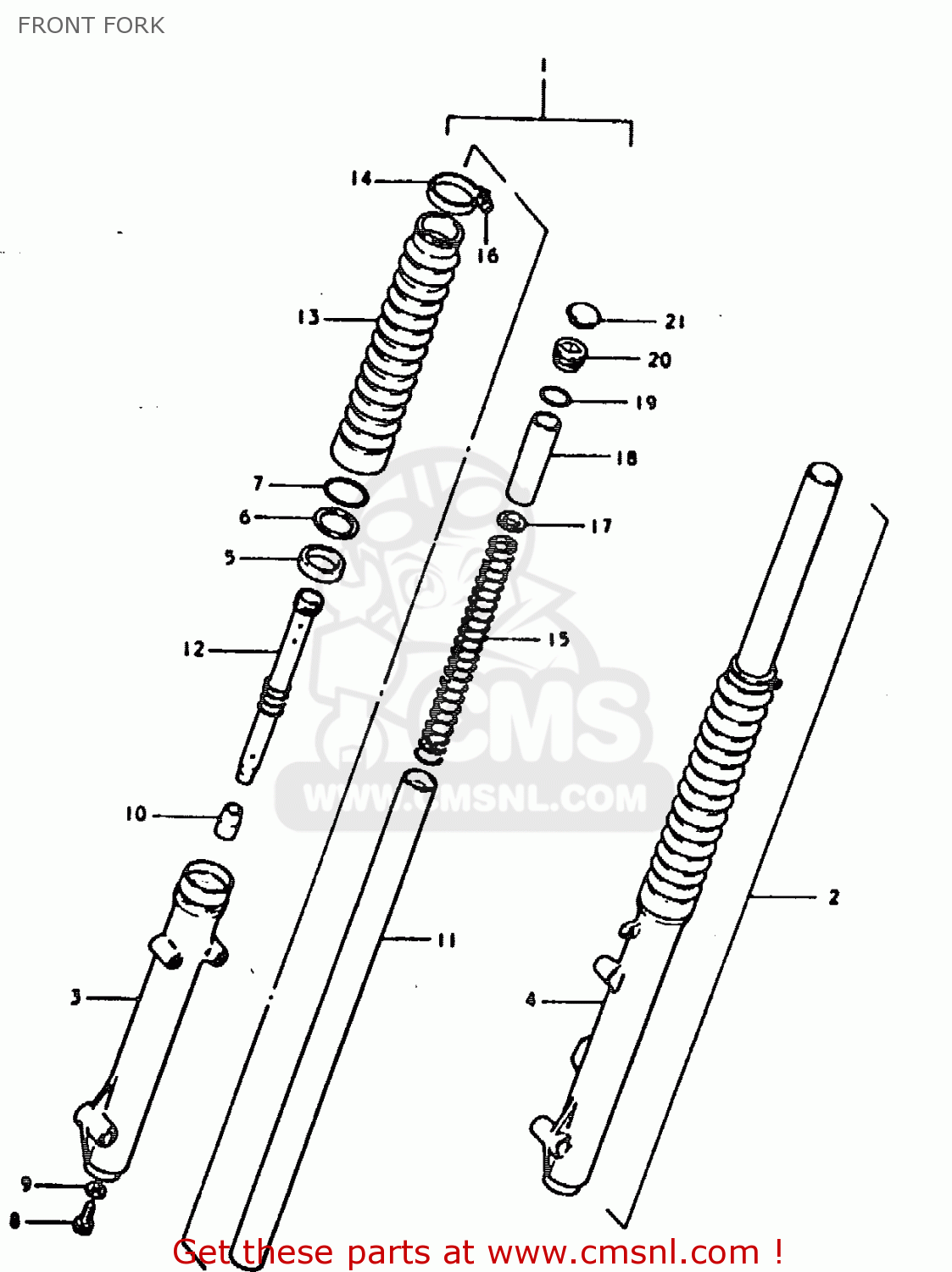

FRONT FORK

ref

part #

description

quantity

1

5110329901
ref: 1

DAMPER ASSY, RH

€ 0.00

2

5110429901
ref: 2

DAMPER ASSY, LH

€ 0.00

3

5113029330
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 0.00

4

5114029330
ref: 4

TUBE,OUTER,LEFT

€ 0.00

5

5115311300
ref: 5

OIL SEAL,FRONT FORK

€ 9.00

6

5115841603
ref: 6

WASHER

€ 5.00

7

5115641603
ref: 7

RING,SNAP

€ 7.50

8

5114716510
ref: 8

BOLT,FORK CYLINDER(10X25)

€ 3.50

9

5114841310
ref: 9

GASKET (NAS)

€ 2.50

10

5119536220
ref: 10

PIECE,OIL LOCK

€ 11.50

11

5111029330
ref: 11

TUBE,FORK,INNER

€ 0.00

12

5114629900
ref: 12

CYLINDER

€ 0.00

13

5157129330
ref: 13

BOOT

€ 11.50

14

5157529330
ref: 14

BAND,FORK COVER BOOT

€ 5.50

15

5117129330
ref: 15

SPRING

€ 0.00

16

0211204168
ref: 16

SCREW

€ 1.00

17

5117218630
ref: 17

GUIDE,SPRING COVER

€ 5.50

18

5117629010
ref: 18

SPACER,SPRING

€ 0.00

19

5118125010
ref: 19

O-RING,FORK INNER TUBE

€ 2.50

20

5135129320
ref: 20

CAP

€ 13.50

21

5118929330
ref: 21

CAP,FRONT FORK

€ 7.00

all assemblies
