REAR BRAKE

TS185ER 1979 (N) (E01 E02 E04 E21 E24)

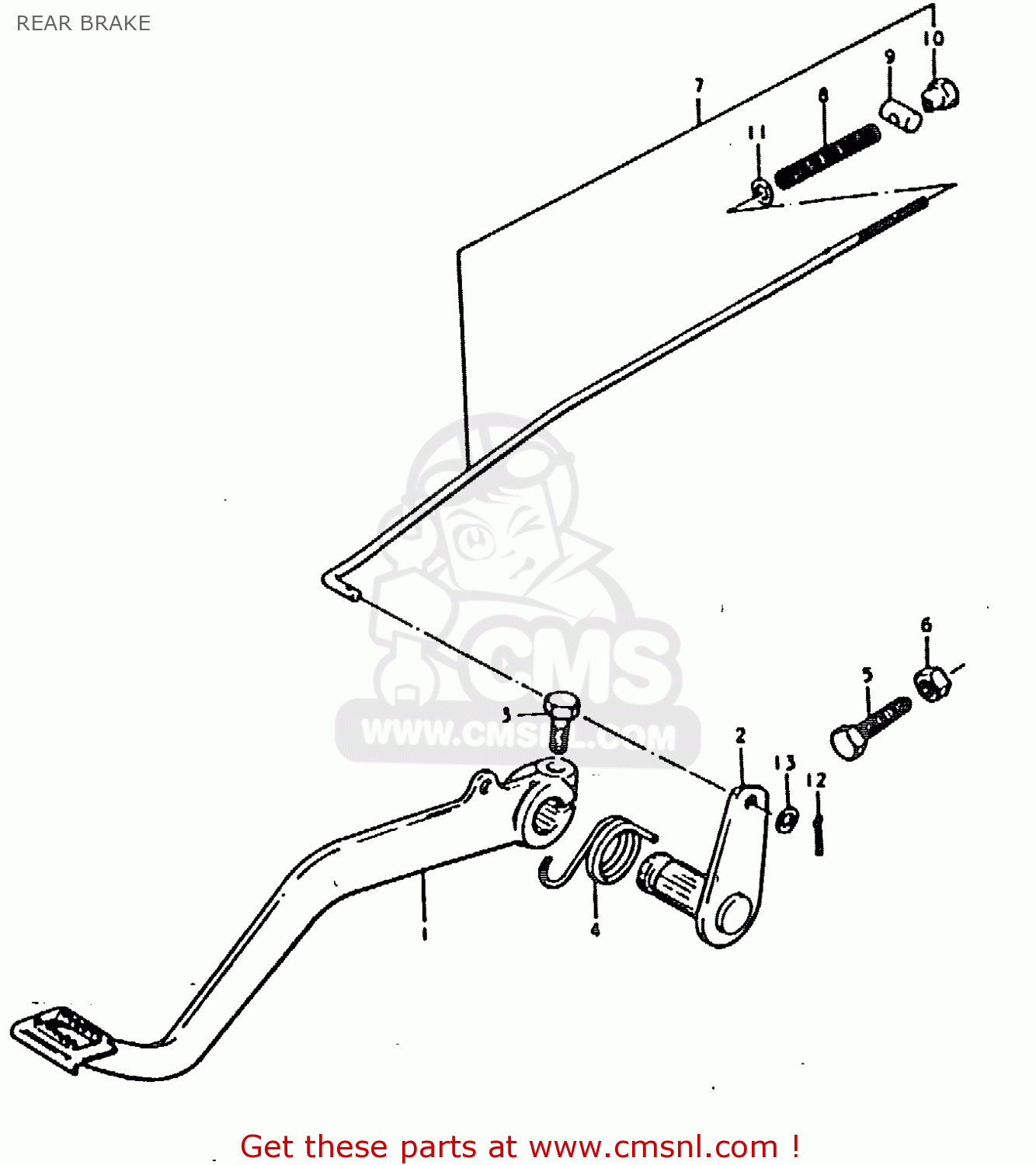

Rear brake diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)

REAR BRAKE TS185ER 1979 (N) (E01 E02 E04 E21 E24)

REAR BRAKE TS185ER 1979 (N) (E01 E02 E04 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

4311029301
ref: 1

PEDAL,BRAKE

€ 32.00

2

4312029300
ref: 2

ARM,BRAKE PEDAL ROD

€ 20.00

3

0110706208
ref: 3

BOLT

€ 2.00

4

0944825001
ref: 4

SPRING

€ 20.50

5

0910006009
ref: 5

BOLT(6X23)

€ 1.50

6

0831011068
ref: 6

NUT

€ 2.50

7

4330029900
ref: 7

ROD, REAR BRAKE

€ 12.00

8

0944009004
ref: 8

SPRING

€ 2.00

9

0920911002
ref: 9

PIN(11X18)

€ 2.00

10

0915006001
ref: 10

NUT

€ 3.50

11

0832221058
ref: 11

WASHER

€ 2.50

12

0411120208
ref: 12

PIN 20X20

€ 1.50

13

0832221068
ref: 13

WASHER

€ 2.00
