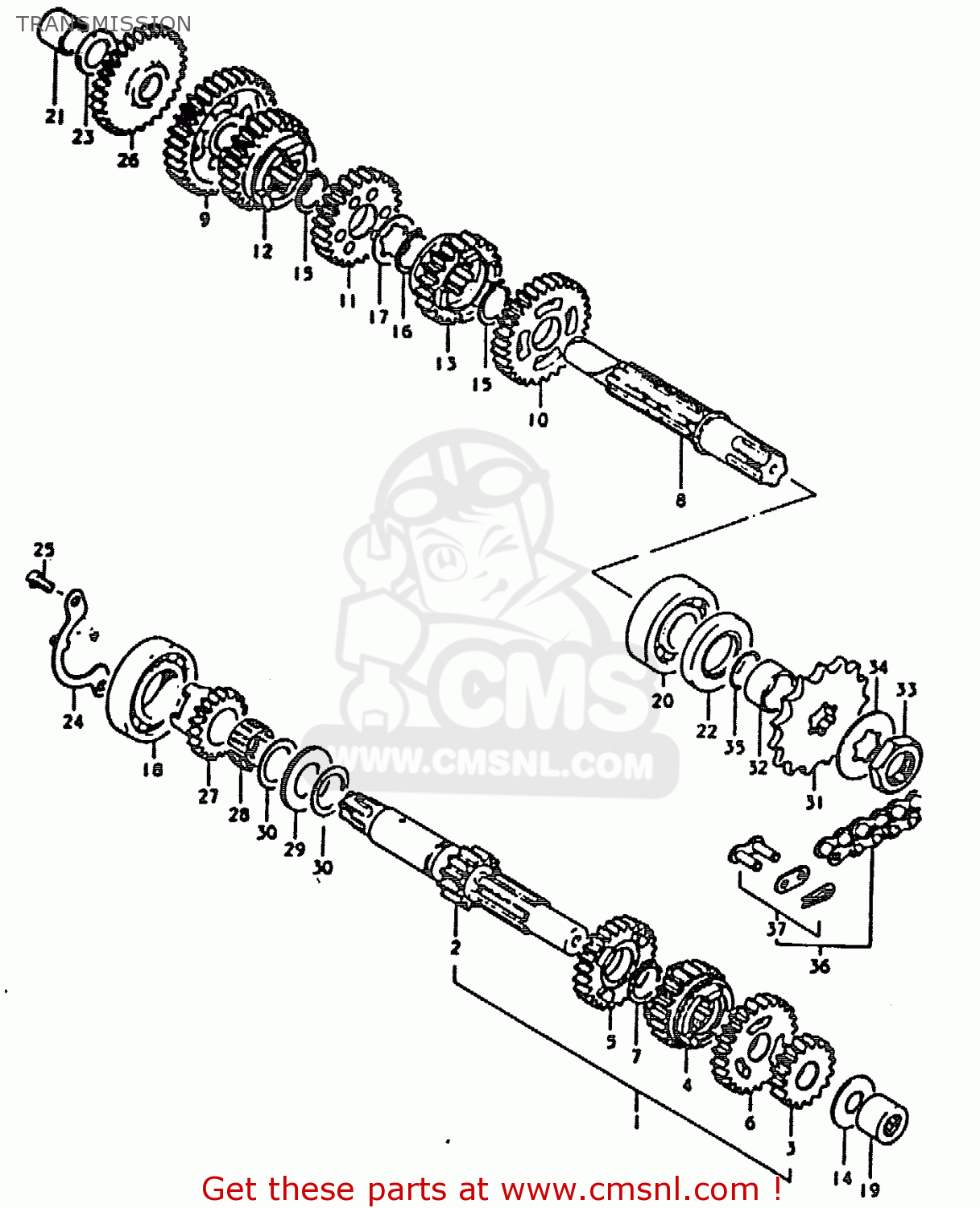

TRANSMISSION

ref

part #

description

quantity

1

2412029007
ref: 1

SHAFT,COUNTER

€ 39.00

2

2412129003
ref: 2

SHAFT,COUNTER

€ 102.50

3

2422128001
ref: 3

GEAR,2ND DRIVE

€ 33.50

4

2423128003
ref: 4

GEAR,3RD DRIVE

€ 54.50

5

2424128000
ref: 5

GEAR,FOURTH DRIVE

€ 17.00

6

2425028000
ref: 6

GEAR,5TH DRIVE

€ 43.50

7

0938020003
ref: 7

CIRCLIP

€ 3.00

8

2413128001
ref: 8

SHAFT,DRIVE

€ 105.00

9

2431028000
ref: 9

GEAR,1ST DRIVEN

€ 57.50

10

2432128001
ref: 10

GEAR,2ND DRIVEN

€ 48.00

11

2433128001
ref: 11

GEAR,THIRD DRIVEN

€ 58.50

12

2434128002
ref: 12

GEAR,FOURTH DRIVEN

€ 37.00

13

2435128001
ref: 13

GEAR,FIFTH DRIVEN

€ 23.50

14

0821115301
ref: 14

WASHER

€ 2.00

15

0938020003
ref: 15

CIRCLIP

€ 3.00

16

0938020006
ref: 16

CIRCLIP

€ 1.50

17

0916720007
ref: 17

WASHER

€ 3.00

18

0811060060
ref: 18

BEARING, RH

€ 17.00

19

0926315009
ref: 19

BEARING(15X22X15)

€ 9.00

20

0926220009
ref: 20

BEARING

€ 19.00

21

0930315004
ref: 21

BUSH

€ 5.50

22

0928325009
ref: 22

OIL SEAL (25X44X7)

€ 6.50

23

0821115301
ref: 23

WASHER

€ 2.00

24

2474128001
ref: 24

RETAINER,CNTR SHAFT BEARING

€ 10.00

25

0211206128
ref: 25

SCREW 6X12

€ 2.00

26

2626028002
ref: 26

GEAR,KICK STARTER IDLE

€ 38.00

27

2628136200
ref: 27

GEAR,KICK STARTER DRIVEN

€ 64.50

28

0926319006
ref: 28

BEARING(19.2X23.2X19)

€ 29.50

29

0926321006
ref: 29

BEARING(21X32X2.85)

€ 11.50

30

0916021007
ref: 30

WASHER(21X30X0.8)

€ 3.50

31

2751129000
ref: 31

SPROCKET,ENGINE

€ 20.50

32

0918020039
ref: 32

SPACER(20X25X12.5)

€ 9.50

33

0914020001
ref: 33

NUT

€ 3.50

34

0916720006
ref: 34

WASHER,LOCK

€ 3.00

35

0928020001
ref: 35

O RING(D:1,ID:19.5)

€ 2.00

36

2760036600
ref: 36

CHAIN ASSEMBLY,DRIVE

€ 80.00

37

2762029310
ref: 37

JOINT

€ 10.00
