FRONT FENDER

TS185ER 1979 (N) (E01 E02 E04 E21 E24)

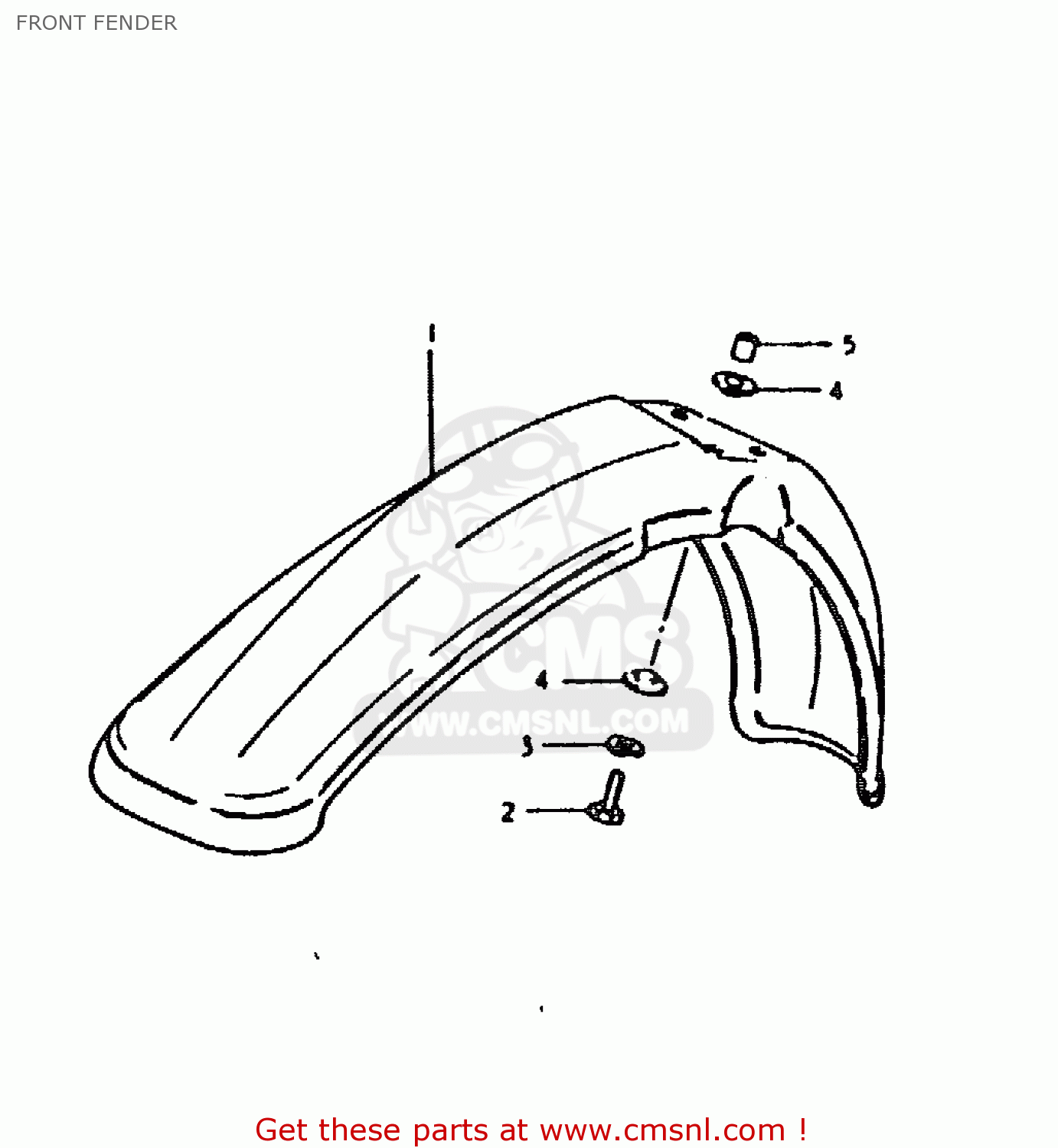

Front fender diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)

FRONT FENDER TS185ER 1979 (N) (E01 E02 E04 E21 E24)

FRONT FENDER TS185ER 1979 (N) (E01 E02 E04 E21 E24)

prices are in EUR

ref

part #

description

quantity

1-1

531114850007P
ref: 1-1

FENDER, FRONT (RED)

€ 81.50

1-2

531114850008Y
ref: 1-2

FENDER,FR

€ 82.00

1-3

531114850008T
ref: 1-3

FENDER, FRONT

€ 157.00

2

0110706358
ref: 2

BOLT

€ 2.50

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4

0918006048
ref: 4

SPACER

€ 2.00

5

0918006026
ref: 5

SPACER

€ 3.50
