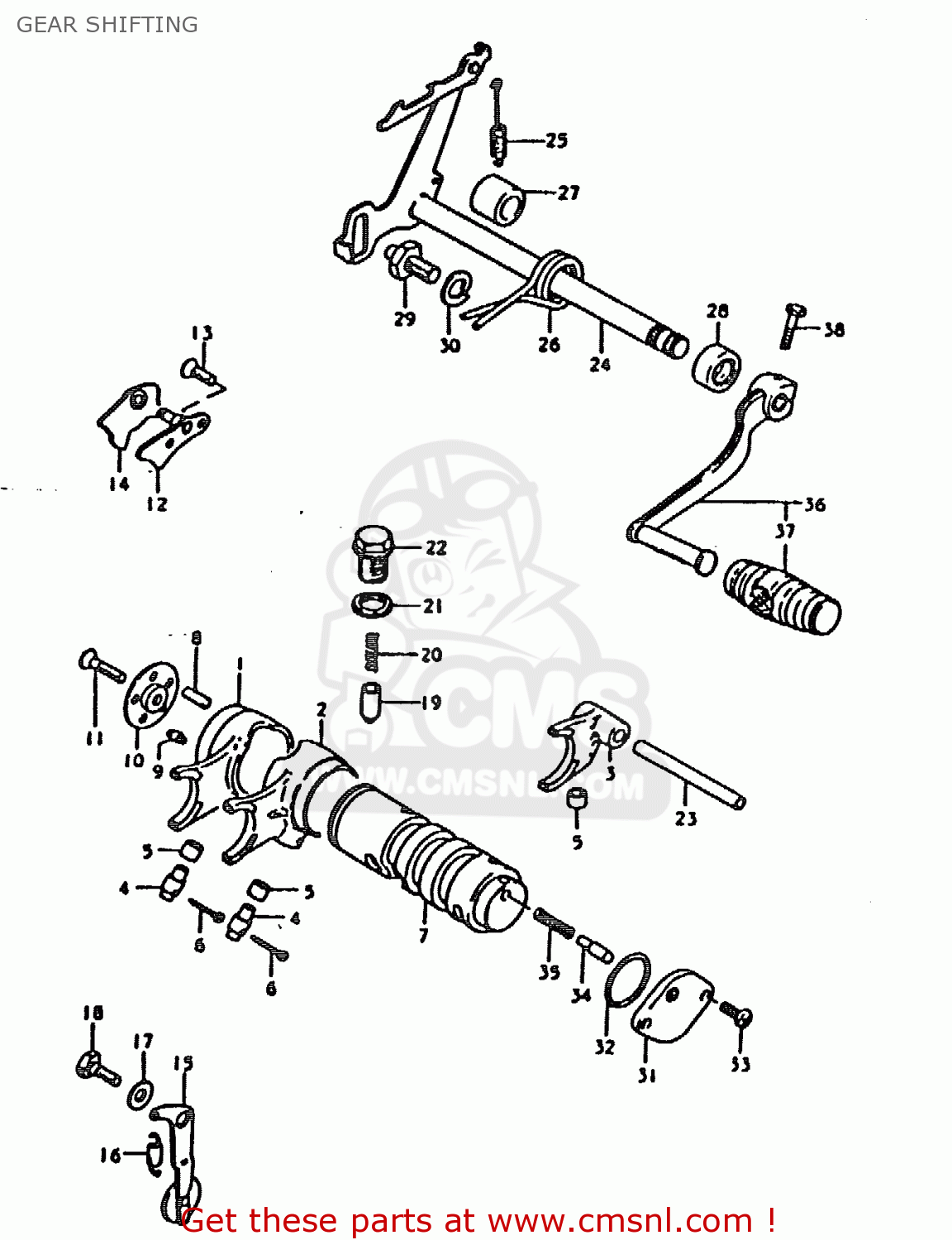

GEAR SHIFTING

ref

part #

description

quantity

1

2521128001
ref: 1

FORK,GEAR SHIFT NO.1

€ 58.50

2

2522128001
ref: 2

FORK,GEAR SHIFT NO.2

€ 25.00

3

2523128002
ref: 3

FORK,GEAR SHIFT NO.3

€ 38.00

4

0920910002
ref: 4

PIN

€ 8.50

5

0918006004
ref: 5

SPACER

€ 2.50

6

0411125208
ref: 6

PIN 25X20

€ 2.00

7

2531129300
ref: 7

CAM,GEAR SHIFT

€ 37.50

8

0926104002
ref: 8

ROLLER(4X13.8)

€ 1.50

9

0920904012
ref: 9

PIN

€ 2.50

10

2532228030
ref: 10

RETAINER,GEAR SHIFT CAM DR PIN

€ 6.50

11

0212206208
ref: 11

SCREW

€ 2.00

12

2534012101
ref: 12

GUIDE,GEAR SHIFT CAM

€ 11.50

13

0212206168
ref: 13

SCREW

€ 2.00

14

2537012101
ref: 14

PAWL,GEAR SHIFT CAM STOPPER

€ 5.50

15

2535028001
ref: 15

STOPPER,GEAR SHIFT CAM

€ 12.00

16

0944307014
ref: 16

SPRING

€ 2.00

17

0916006022
ref: 17

WASHER(6.5X16X2.3)

€ 1.50

18

0911106003
ref: 18

BOLT(6X16.1)

€ 1.50

19

2535118000
ref: 19

STOPPER,GEAR SHIFTING

€ 5.00

20

0944005018
ref: 20

SPRING

€ 14.00

21

0916814004
ref: 21

GASKET(14X19.2X2) (NAS)

€ 2.50

22

2535211000
ref: 22

BOLT,GEAR SHAFT CAM STOPPER

€ 4.50

23

2541105100
ref: 23

SHAFT,GEAR SHIFT FORK

€ 5.50

24

2551029300
ref: 24

SHAFT,GEAR SHIFT

€ 74.00

25

0944306008
ref: 25

SPRING

€ 2.00

26

0944426008
ref: 26

SPRING

€ 4.50

27

0918012068
ref: 27

SPACER(12X20X15.3)

€ 3.00

28

0928512002
ref: 28

OIL SEAL

€ 7.00

29

2567119000
ref: 29

STOPPER,GEAR SHIFT ARM

€ 5.50

30

0916210003
ref: 30

WASHER

€ 2.00

31

3772029350
ref: 31

BODY,GEAR SHIFT SWITCH

€ 10.50

32

0928026003
ref: 32

O-RING (D:2.4 ID:26.2)

€ 2.50

33

0211205128
ref: 33

SCREW

€ 2.50

34

0920905011
ref: 34

PIN(5X15.5)

€ 2.00

35

0944004010
ref: 35

SPRING

€ 1.50

36

2560029300
ref: 36

LEVER ASSY,GEAR SHIFT

€ 30.50

37

2565216500
ref: 37

RUBBER,GEAR SHIFT PEDAL

€ 4.00

38

0910006091
ref: 38

BOLT

€ 2.00
