HEADLAMP (E4)
TS185ER 1979 (N) (E01 E02 E04 E21 E24)

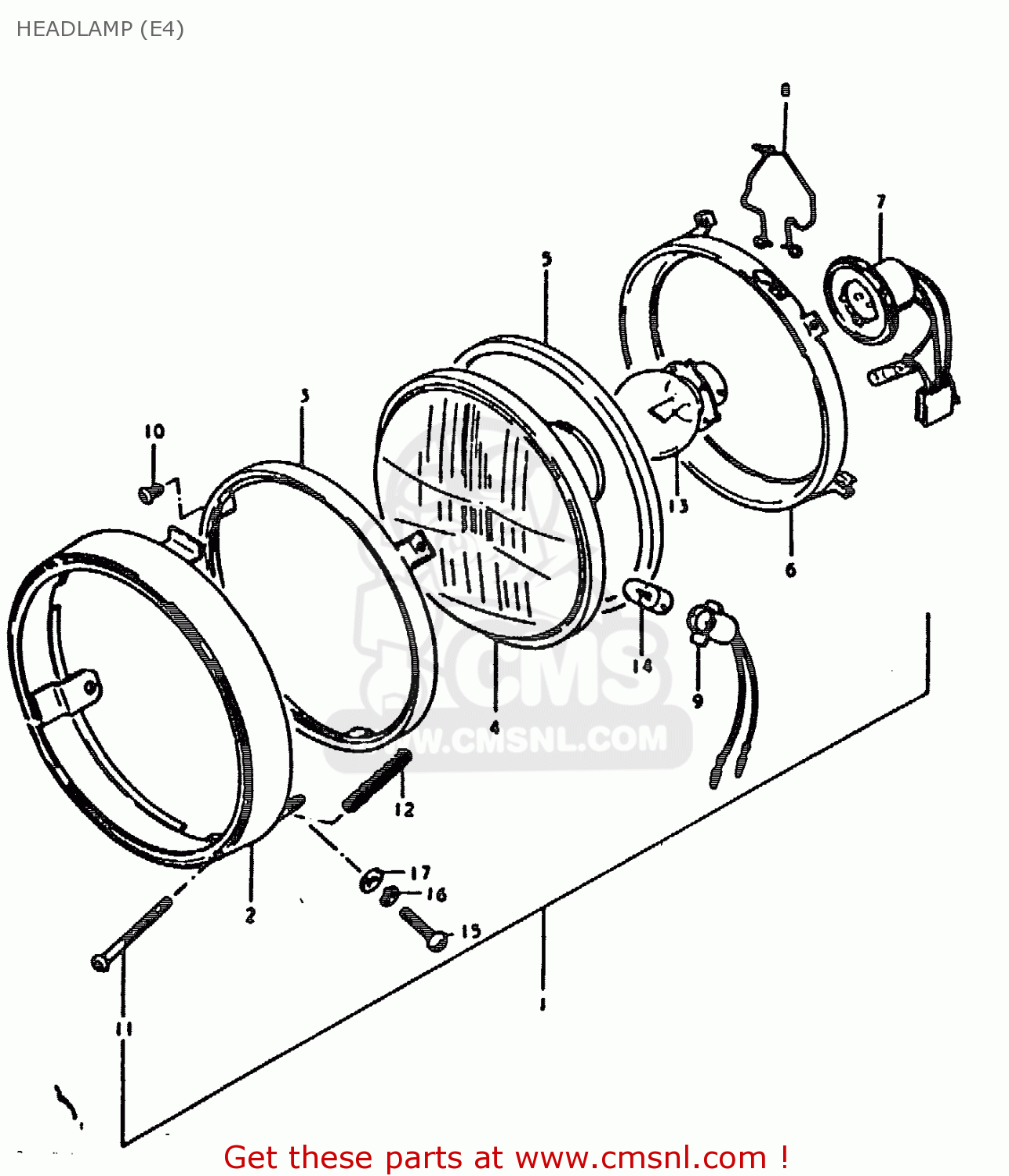

Headlamp (e4) diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)
HEADLAMP (E4) TS185ER 1979 (N) (E01 E02 E04 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
3510048540999
ref: 1
HEADLAMP ASSY
€ 0.00
2
3511148530
ref: 2
RIM
€ 34.00
3
3512748540
ref: 3
RING
€ 13.00
4
3512127650
ref: 4
UNIT
€ 77.00
5
3513948540
ref: 5
GASKET
€ 0.00
6
3513048540
ref: 6
RING, MOUNTING
€ 18.00
7
3517036641
ref: 7
SOCKET
€ 0.00
8
3517228660
ref: 8
CLAMP,HEADLAMP
€ 7.00
9
3611828660
ref: 9
SOCKET
€ 11.50
10
0211104087
ref: 10
SCREW
€ 1.50
11
3515133611
ref: 11
SCREW,HEADLAMP ADJUST
€ 4.00
12
3515431900
ref: 12
SPRING,ADJUSTING
€ 3.50
13
0947106032
ref: 13
BULB (6V,25/25W)
€ 0.00
14
0947106047
ref: 14
BULB (6V,4W)
€ 0.00
15
0211205168
ref: 15
SCREW
€ 2.50
16
0832121058
ref: 16
LOCK WASHER
€ 2.00
17
0832221058
ref: 17
WASHER
€ 2.50
