MAGNETO
TS185ER 1979 (N) (E01 E02 E04 E21 E24)

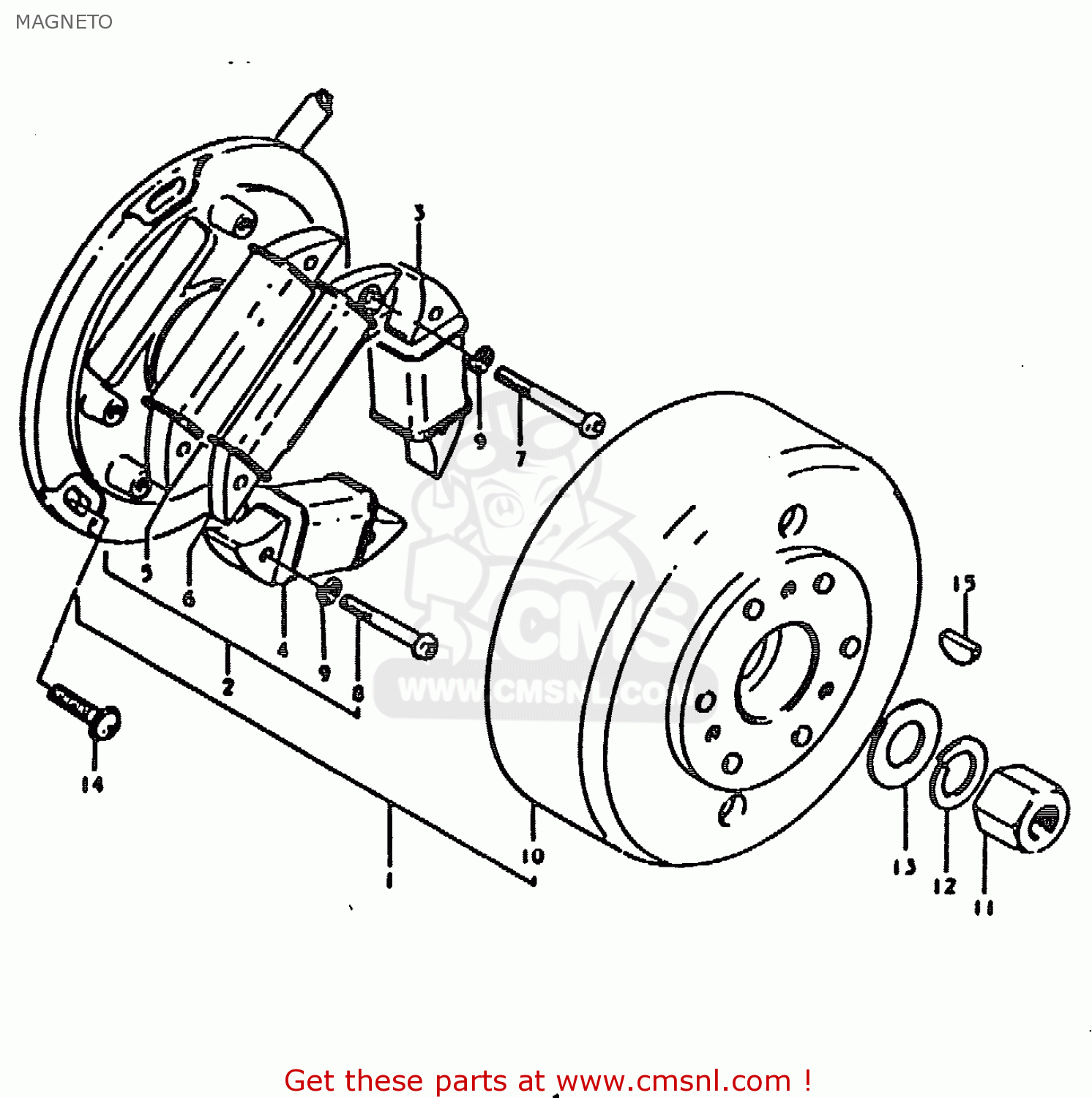

Magneto diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)
MAGNETO TS185ER 1979 (N) (E01 E02 E04 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
3210030626
ref: 1
MAGNETO ASSEMBLY
€ 382.50
2
3210130626
ref: 2
STATOR ASSEMBLY
€ 289.50
3
3212029612
ref: 3
COIL,CHARGE
€ 67.00
4
3213030620
ref: 4
COIL,LIGHTING
€ 72.50
5
3214032020
ref: 5
COIL
€ 224.50
6
3215032020
ref: 6
COIL,PULSER
€ 210.50
7
0211105357
ref: 7
SCREW 5X35
€ 1.50
8
0211205208
ref: 8
SCREW 5X20
€ 3.00
9
0832121058
ref: 9
LOCK WASHER
€ 2.00
10
3210230621
ref: 10
ROTOR ASSEMBLY
€ 339.50
11
0914014011
ref: 11
NUT
€ 3.50
12
0832121148
ref: 12
LOCK WASHER
€ 2.00
13
0916014015
ref: 13
WASHER(14X27X3)
€ 4.00
14
0913905011
ref: 14
SCREW(5X14)
€ 3.00
15
0834131049
ref: 15
KEY 4MM
€ 3.50
