HEADLAMP HOUSING

TS185ER 1979 (N) (E01 E02 E04 E21 E24)

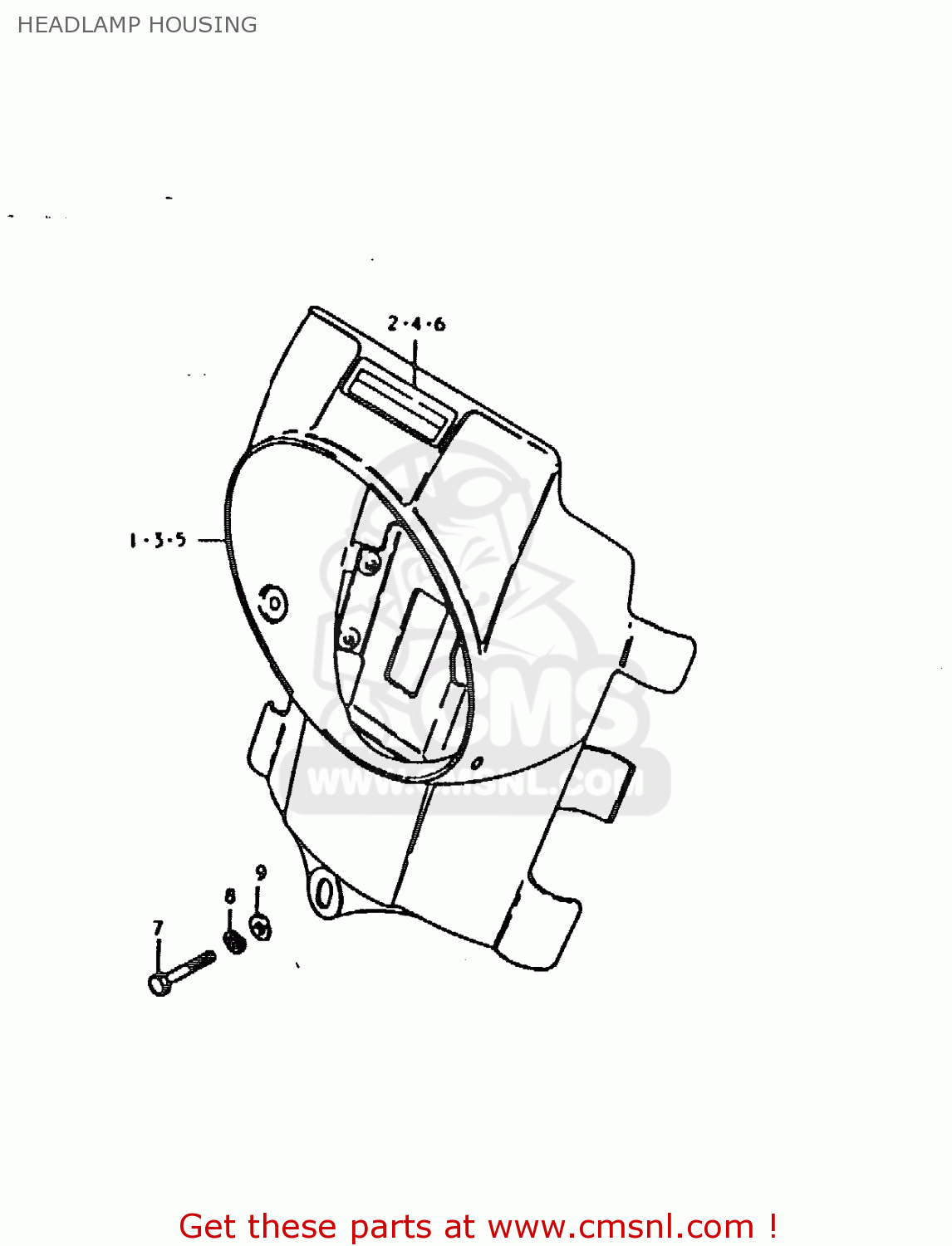

Headlamp housing diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)

HEADLAMP HOUSING TS185ER 1979 (N) (E01 E02 E04 E21 E24)

HEADLAMP HOUSING TS185ER 1979 (N) (E01 E02 E04 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

518104850007P
ref: 1

HOUSING, HEADLAMP

€ 62.00

2

682754850069F
ref: 2

TAPE, HOUSING

€ 5.00

3

518104850008Y
ref: 3

HOUSING, HEADLAMP

€ 71.50

4

682754850069G
ref: 4

TAPE, HOUSING

€ 5.00

5

518104850008T
ref: 5

HOUSING, HEADLAMP

€ 71.50

6

682754850069H
ref: 6

TAPE, HOUSING

€ 0.00

7

0110706128
ref: 7

BOLT

€ 2.00

8

0832121068
ref: 8

LOCK WASHER

€ 2.50

9

0916006020
ref: 9

WASHER

€ 2.00
