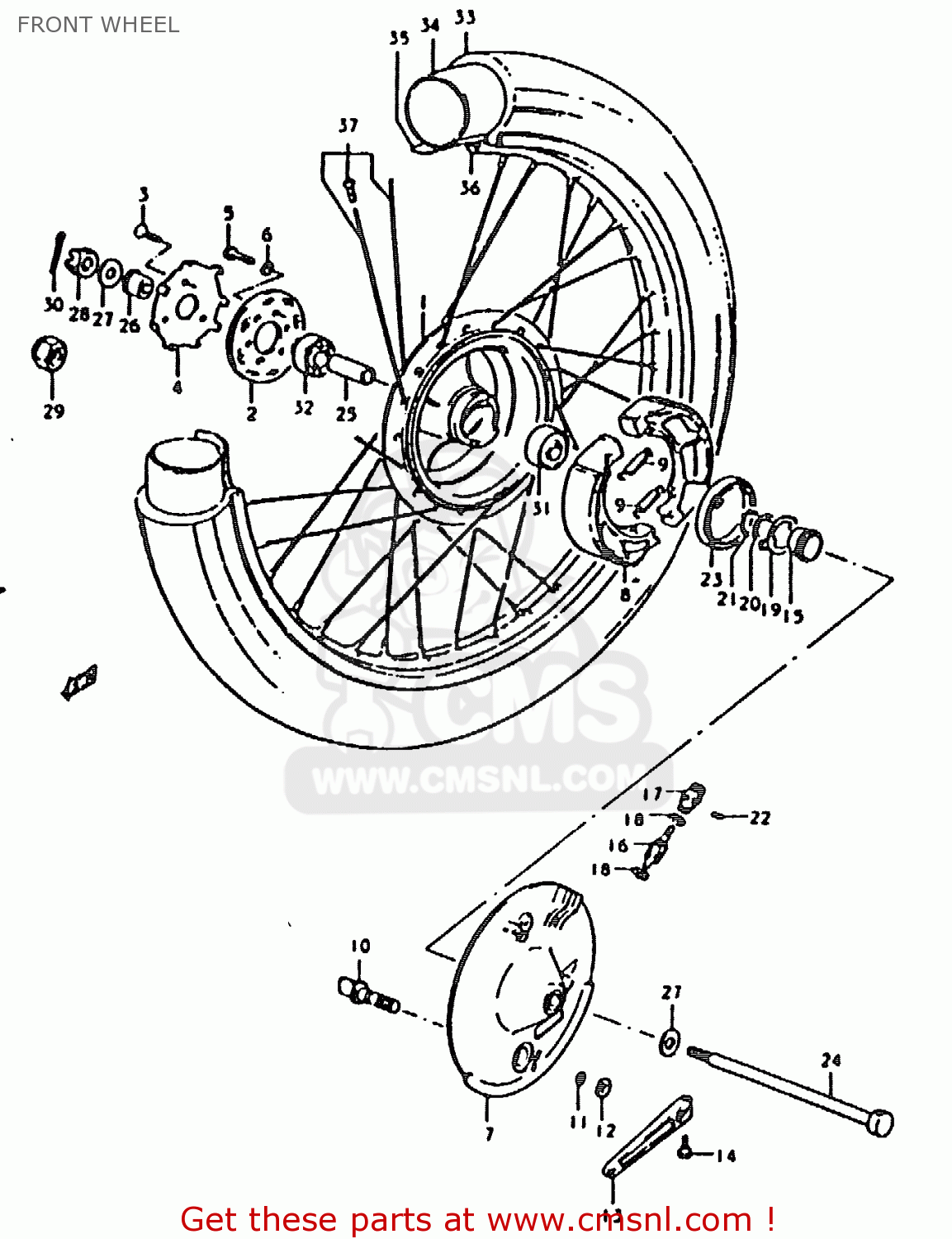

FRONT WHEEL

ref

part #

description

quantity

1

5411029300
ref: 1

HUB,FR WHEEL

€ 156.50

2

5411230500
ref: 2

FLANGE,FR HUB,R

€ 17.00

3

0212206168
ref: 3

SCREW

€ 2.00

4

5415130500
ref: 4

RETAINER,FR HUB BEARING,R

€ 7.00

5

0110706168
ref: 5

BOLT, UPPER

€ 3.00

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

5421048500
ref: 7

PANEL,FRONT HUB

€ 150.50

8

5441007002
ref: 8

SHOE,BRAKE

€ 35.00

9

0944307001
ref: 9

SPRING(L:34)

€ 2.50

10

5444148500
ref: 10

CAM,FRONT BRAKE

€ 10.00

11

0928014003
ref: 11

O-RING (D:2.4 ID:13.8)

€ 3.50

12

0916014001
ref: 12

WASHER (14.5X22X1.6)

€ 2.50

13

5445132400
ref: 13

LEVER,FRONT BRAKE CAM

€ 48.00

14

0110706258
ref: 14

BOLT

€ 2.00

15

5461128401
ref: 15

GEAR,SPEEDOMETER

€ 26.00

16

5462128400
ref: 16

PINION,SPEEDOMETER

€ 15.50

17

5463201001
ref: 17

BUSH,METER GEAR OUTER

€ 9.00

18

0916005001
ref: 18

WASHER (5.1X9X0.4)

€ 2.00

19

5466129300
ref: 19

DRIVER,SPEEDOMETER GEAR

€ 4.00

20

0916018002
ref: 20

WASHER(18.5X24X1)

€ 2.00

21

0833111189
ref: 21

CIRCLIP

€ 2.00

22

0913403101
ref: 22

SCREW

€ 1.50

23

0928543001
ref: 23

OIL SEAL (43X58X7)

€ 10.00

24

5471116503
ref: 24

AXLE,FRONT

€ 29.50

25

0918012041
ref: 25

SPACER (12.6X19X52)

€ 4.50

26

5474141100
ref: 26

SPACER,FR AXLE,R

€ 10.00

27

0832211128
ref: 27

WASHER

€ 2.00

28

0831431128
ref: 28

NUT 12MM

€ 2.00

29

NOTUSED
ref: 29

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

30

0411130308
ref: 30

COTTER PIN

€ 1.50

31

0814362017
ref: 31

BEARING

€ 11.50

32

0812362017
ref: 32

BEARING, RH

€ 15.00

33

5510048500
ref: 33

TIRE,FR

€ 0.00

34

5520016510
ref: 34

TUBE

€ 32.50

35

5526116510
ref: 35

PROTECTOR,WHEEL,INNER

€ 5.00

36

5531148020
ref: 36

RIM,FR WHEEL(1.60X21)

€ 136.00

37

5530029830
ref: 37

SPOKE SET,FRONT

€ 37.00
