OIL TANK

TS185ER 1979 (N) (E01 E02 E04 E21 E24)

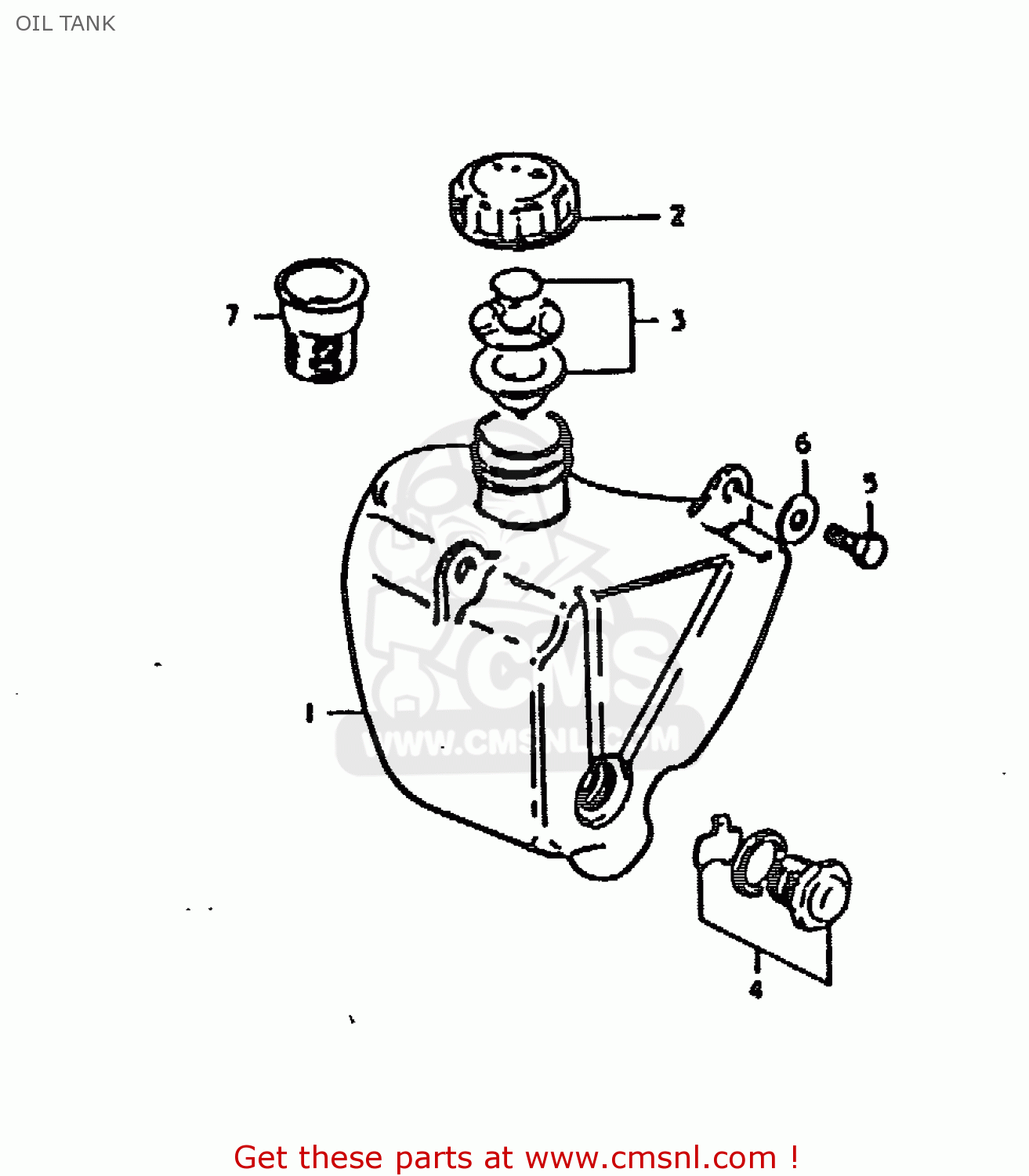

Oil tank diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)

OIL TANK TS185ER 1979 (N) (E01 E02 E04 E21 E24)

OIL TANK TS185ER 1979 (N) (E01 E02 E04 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

4461129301
ref: 1

TANK,OIL

€ 27.00

2

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

3

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4

4460046810
ref: 4

LENS SET,OIL LEVEL

€ 6.50

5

0110706168
ref: 5

BOLT, UPPER

€ 3.00

6

0916006007
ref: 6

WASHER

€ 2.00

7

4466535000
ref: 7

FILTER,OIL TANK INLET

€ 7.00
