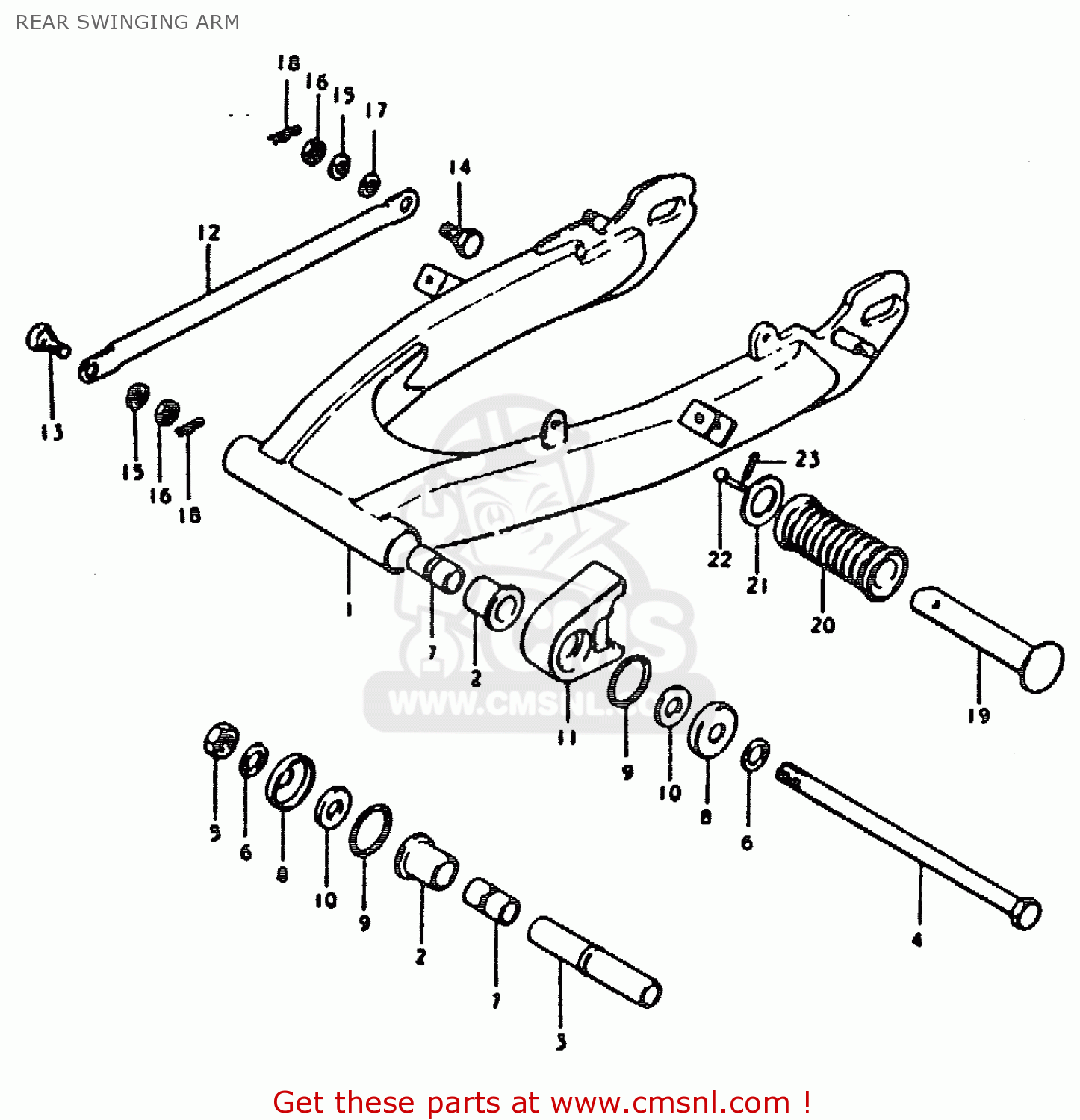

REAR SWINGING ARM

ref

part #

description

quantity

1

611002984008C
ref: 1

SWING ARM ASSEMBLY,REAR

€ 148.50

2

0930718002
ref: 2

BUSH

€ 10.50

3

6128029300
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 9.00

4

6121129301
ref: 4

SHAFT,REAR SWING ARM

€ 11.50

5

0831921128
ref: 5

NUT 12MM

€ 4.00

6

0832211128
ref: 6

WASHER

€ 2.00

7

6125128000
ref: 7

SPACER,RR SWGARM PIVOT

€ 8.50

8

6126209200
ref: 8

COVER,SWGARM BUSH DUST SEAL

€ 2.50

9

0928024001
ref: 9

O RING(D:2,ID:24.5)

€ 2.00

10

0916012005
ref: 10

WASHER(12.5X24X2.3)

€ 3.00

11

6127329901
ref: 11

BUFFER,CHAIN TOUCH DEFLECTOR

€ 9.50

12

643112801008C
ref: 12

TORQUE LINK, REAR

€ 10.00

13

0911108015
ref: 13

BOLT(8X22)

€ 3.00

14

0911108013
ref: 14

BOLT(8X26.5)

€ 3.00

15

0832121088
ref: 15

LOCK WASHER

€ 2.00

16

0914008008
ref: 16

NUT

€ 1.50

17

0832211088
ref: 17

WASHER

€ 2.00

18

0938510001
ref: 18

CLIP

€ 1.50

19

4361003001
ref: 19

BAR,FOOTREST RUBBER

€ 5.50

20

4361203001
ref: 20

RUBBER,PILLION FOOTREST

€ 3.50

21

0916019006
ref: 21

WASHER (19.5X32X2)

€ 2.00

22

0920006010
ref: 22

PIN

€ 2.50

23

0411120208
ref: 23

PIN 20X20

€ 1.50
