WIRING HARNESS

TS185ER 1979 (N) (E01 E02 E04 E21 E24)

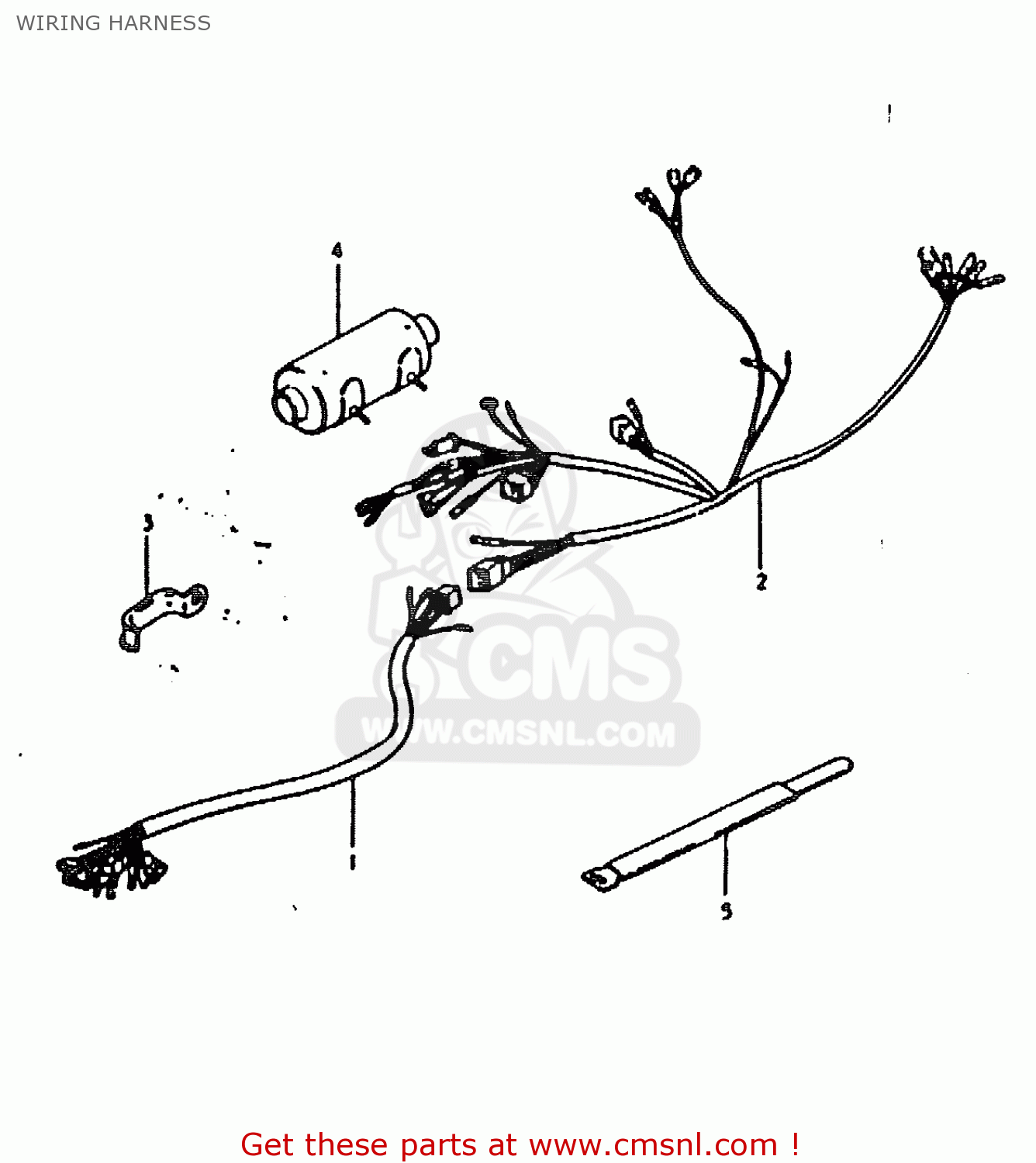

Wiring harness diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)

WIRING HARNESS TS185ER 1979 (N) (E01 E02 E04 E21 E24)

WIRING HARNESS TS185ER 1979 (N) (E01 E02 E04 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

3661030900
ref: 1

WIRING HARNESS NO.1

€ 73.50

2

3662030900
ref: 2

WIRING HARNESS NO.2

€ 61.50

3

0940309307
ref: 3

CLAMP

€ 2.50

4

3651830610
ref: 4

BOOT

€ 0.00

5-1

0940711302
ref: 5-1

CLAMP

€ 6.00

5-2

0940718301
ref: 5-2

CLAMP

€ 6.00
