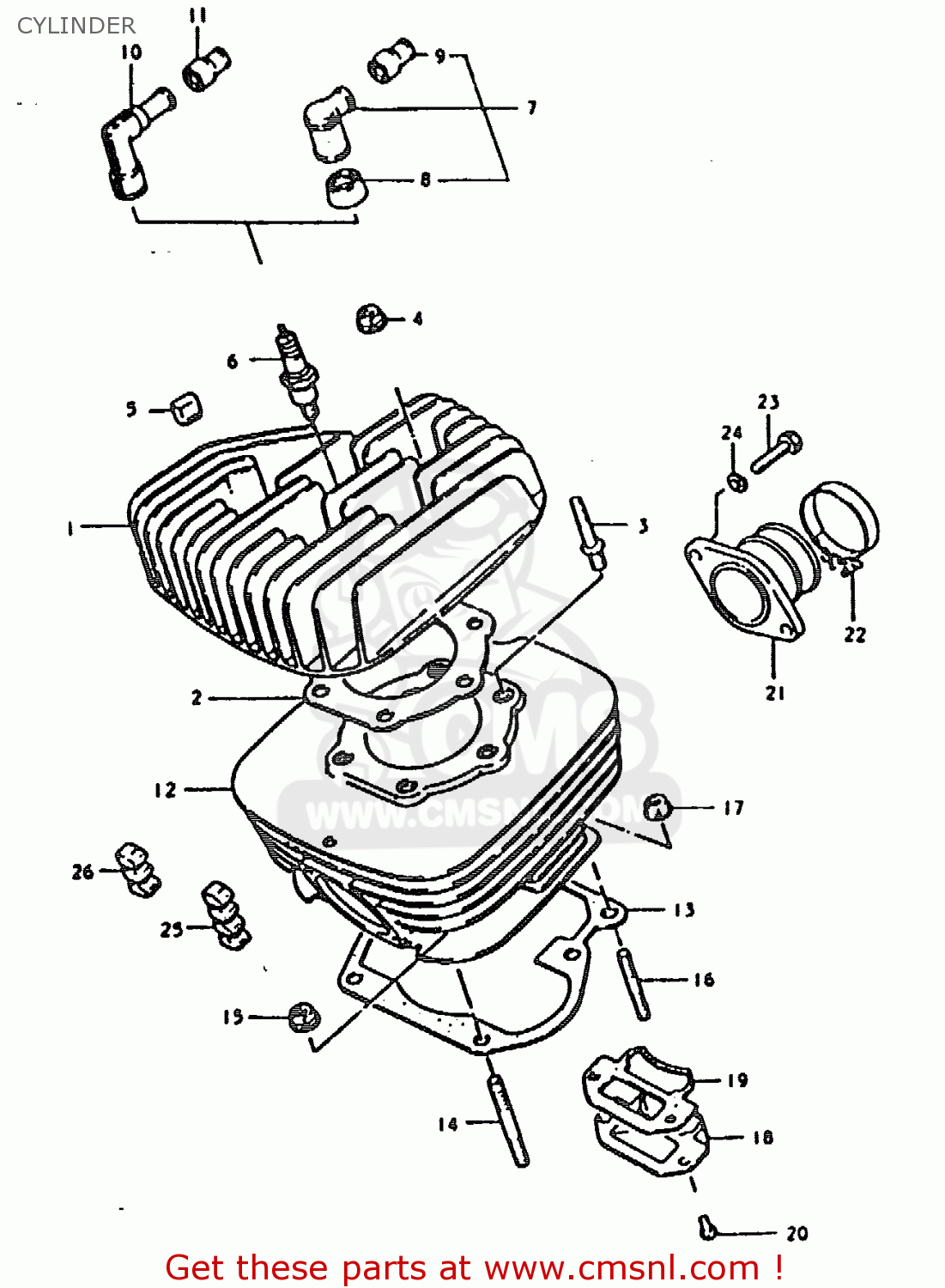

CYLINDER

ref

part #

description

quantity

1

1111129303
ref: 1

HEAD,CYLINDER

€ 121.50

2

1114129900
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 15.50

3

0910808018
ref: 3

BOLT,STUD

€ 4.00

4

0831616088
ref: 4

NUT

€ 2.50

5

1125129300
ref: 5

PAD,CYLINDER

€ 6.00

6-1

0948200139
ref: 6-1

PLUG,SPARK(BP7ES)

€ 4.00

6-2

0948200140
ref: 6-2

SPARK PLUG W22EP

€ 3.00

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

3351039110
ref: 10
E2, E4, E21, E22

CAP,SPARK PLUG

€ 61.50

11

3354298000
ref: 11
E2, E4, E21, E22

SEAL,SPARK PLU

€ 4.50

12

1121029900
ref: 12

CYLINDER

€ 399.00

13

1124129300
ref: 13

GASKET,CYLINDER (MCA)

€ 5.50

14

0142110258
ref: 14

STUD 10X25

€ 3.00

15

0831616108
ref: 15

NUT

€ 2.00

16

0142108258
ref: 16

STUD 8X25

€ 2.50

17

0831616088
ref: 17

NUT

€ 2.50

18

1315041113
ref: 18

VALVE ASSY,REED

€ 118.50

19

1315641100
ref: 19

GASKET,REED VALVE (MCA)

€ 4.50

20

0211206208
ref: 20

SCREW

€ 2.00

21

1311030900
ref: 21

PIPE,INTAKE

€ 30.50

22

0940248306
ref: 22

CLAMP

€ 4.50

23

0110706168
ref: 23

BOLT, UPPER

€ 3.00

24

0832121068
ref: 24

LOCK WASHER

€ 2.50

25

1125129310
ref: 25

PAD,CYLINDER

€ 11.50

26

1125129320
ref: 26

PAD,CYLINDER

€ 11.50

all assemblies
