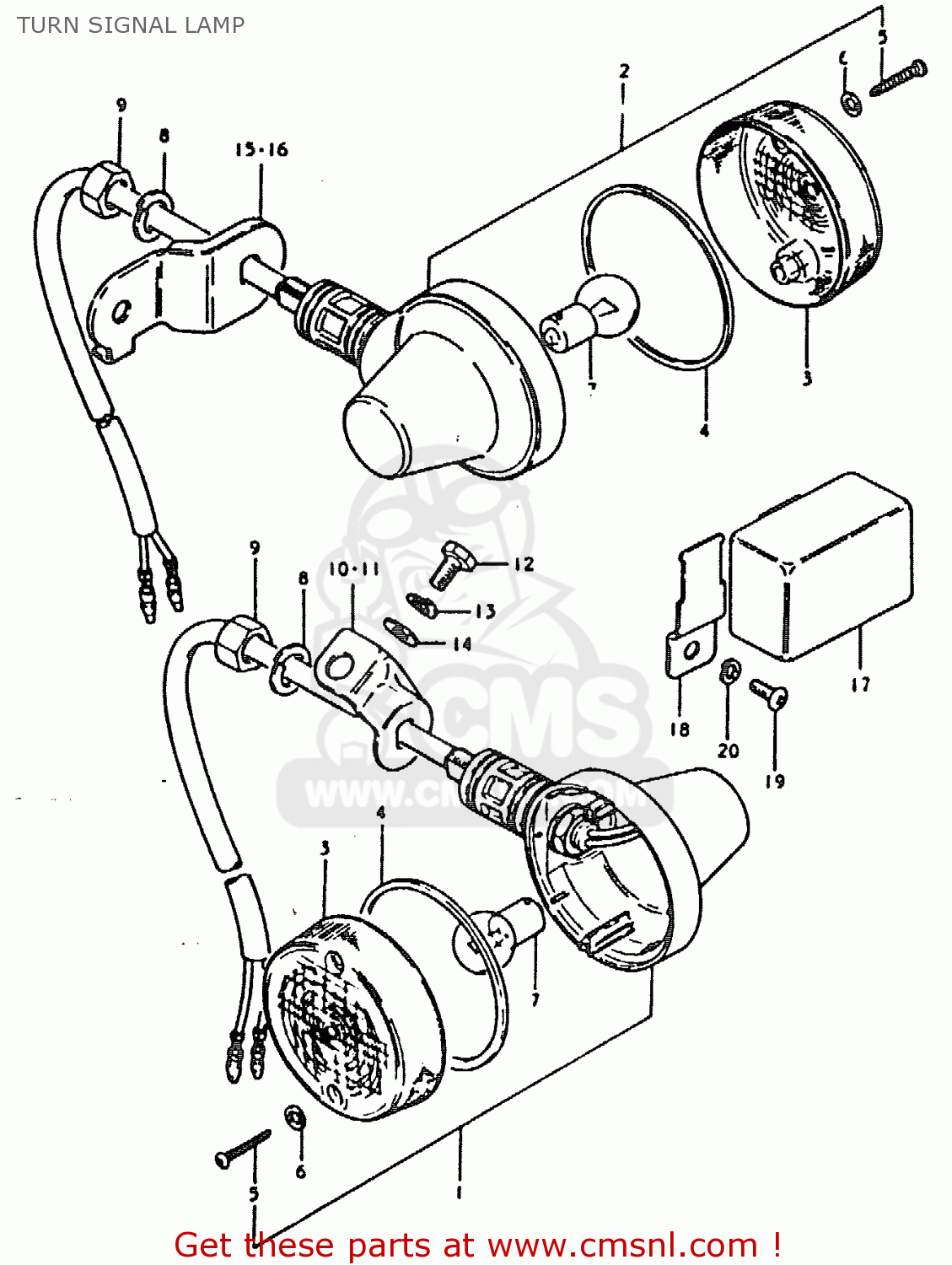

TURN SIGNAL LAMP

ref

part #

description

quantity

1

3560348521999
ref: 1

LAMP ASSY,RR TURNSIGNAL

€ 72.50

2

3560348521999
ref: 2

LAMP ASSY,RR TURNSIGNAL

€ 72.50

3

3561248510
ref: 3

LENS

€ 10.50

4

3561328620
ref: 4

GASKET (NAS)

€ 7.00

5

0321104258
ref: 5

SCREW TAPP.

€ 2.00

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0947106011
ref: 7

BULB(6V17W,STANLEY,A4513A)

€ 9.50

8

0832121128
ref: 8

WASHER,LOCK 12

€ 2.50

9

0831012128
ref: 9

NUT

€ 3.00

10

512512990008C
ref: 10

BRACKET,TURN SIGNAL LAMP

€ 7.50

11

512522990008C
ref: 11

BRACKET,TURN SIGNAL LAMP

€ 7.50

12

0110706128
ref: 12

BOLT

€ 2.00

13

0832121068
ref: 13

LOCK WASHER

€ 2.50

14

0832221068
ref: 14

WASHER

€ 2.00

15

4158048500
ref: 15

BRACKET,REAR TURN SIGNAL

€ 14.00

16

4159048500
ref: 16

BRACKET,REAR TURN SIGNAL

€ 14.50

17

3861048600
ref: 17

RELAY,TURN SIGNAL

€ 46.50

18

3862122200
ref: 18

BRACKET,TURN SIGNAL RELAY

€ 6.00

19

0211206128
ref: 19

SCREW 6X12

€ 2.00

20

0832121068
ref: 20

LOCK WASHER

€ 2.50

all assemblies
