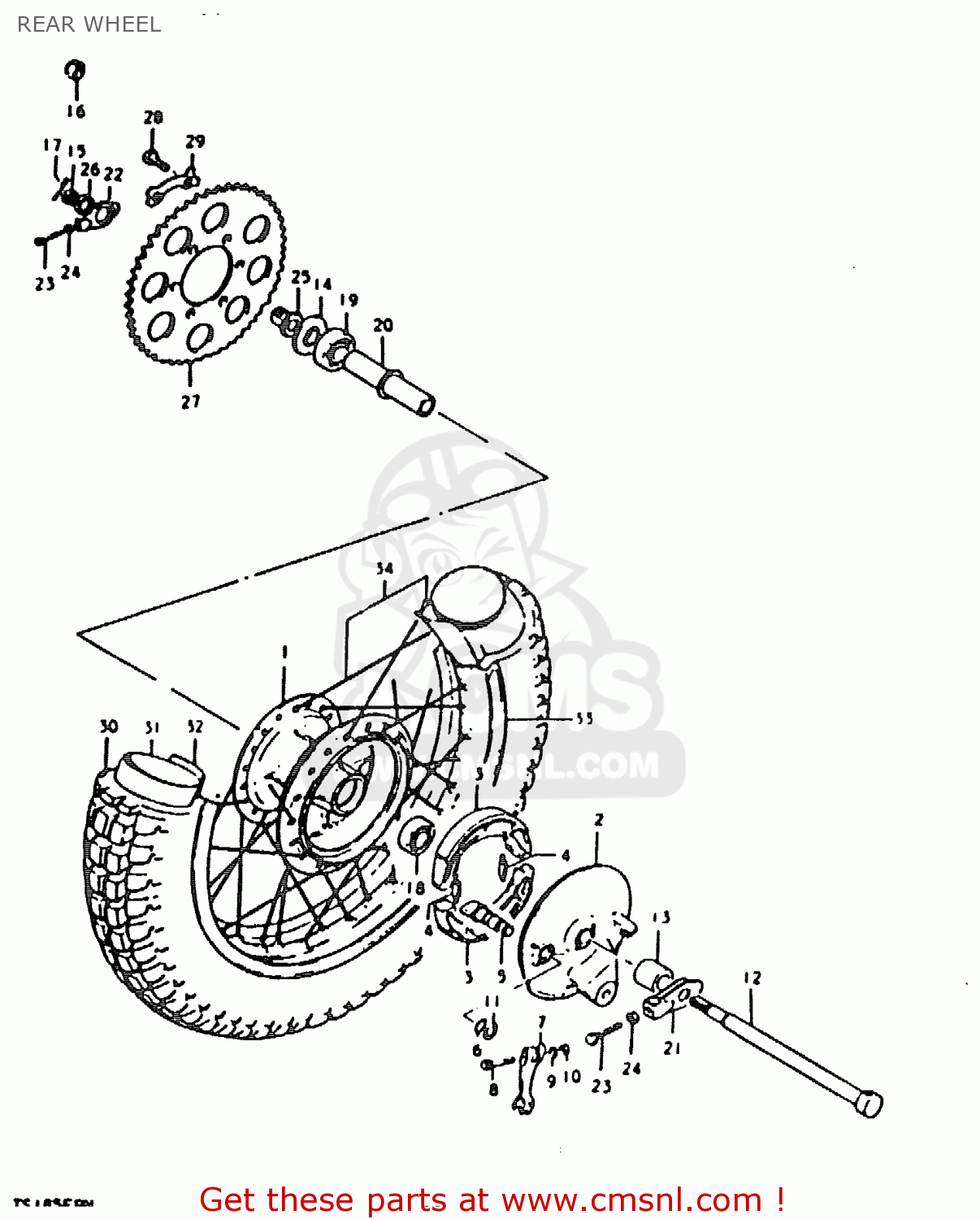

REAR WHEEL

ref

part #

description

quantity

1

6411038001
ref: 1

HUB,REAR WHEEL

€ 357.00

2

6421048000
ref: 2

PANEL,RR BRAKE ANCHOR

€ 83.50

3

5441007002
ref: 3

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129301
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

0928014003
ref: 6

O-RING (D:2.4 ID:13.8)

€ 3.50

7

6445129900
ref: 7

LEVER,REAR BRAKE CAM

€ 32.50

8

0910006078
ref: 8

BOLT(6X33)

€ 2.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

11

0916014001
ref: 11

WASHER (14.5X22X1.6)

€ 2.50

12

6471129300
ref: 12

AXLE,REAR

€ 42.00

13

0918015038
ref: 13

SPACER(15.2X22X26)

€ 7.00

14

6475029300
ref: 14

SPACER,RR AXLE,L

€ 7.50

15

0831431128
ref: 15

NUT 12MM

€ 2.00

16

NOTUSED
ref: 16

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17

0411130308
ref: 17

COTTER PIN

€ 1.50

18

0814362027
ref: 18

BEARING

€ 12.50

19

0812363027
ref: 19

BEARING

€ 19.00

20

6473028001
ref: 20

SPACER,RR WHEEL HUB BEARING

€ 9.00

21

6141028004A
ref: 21

ADJUSTER,CHAIN

€ 8.00

22

6142028003
ref: 22

ADJUSTER,CHAIN,L

€ 11.00

23

0910008146
ref: 23

BOLT(8X40)

€ 2.50

24

0831012088
ref: 24

NUT

€ 2.00

25

6479128001
ref: 25

SPACER,CHAIN ADJUSTER,L

€ 12.00

26

0914018003
ref: 26

NUT

€ 3.50

27

6451129000
ref: 27

SPROCKET,RR

€ 49.00

28

0910008094
ref: 28

BOLT(8X30)

€ 2.50

29

0916908013
ref: 29

WASHER

€ 2.50

30

6510048500
ref: 30

TIRE 4.10-18 105-458MM

€ 192.50

31

6520018010
ref: 31

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

32

5526111010
ref: 32

PROTECTOR,INNER TUBE

€ 3.50

33

6531148500
ref: 33

RIM,WHEEL(1.85X18)

€ 133.00

34

6530028880
ref: 34

SPOKE SET,REAR

€ 31.50
