REAR COMBINATION LAMP (E22)

TS185ER 1979 (N) (E01 E02 E04 E21 E24)

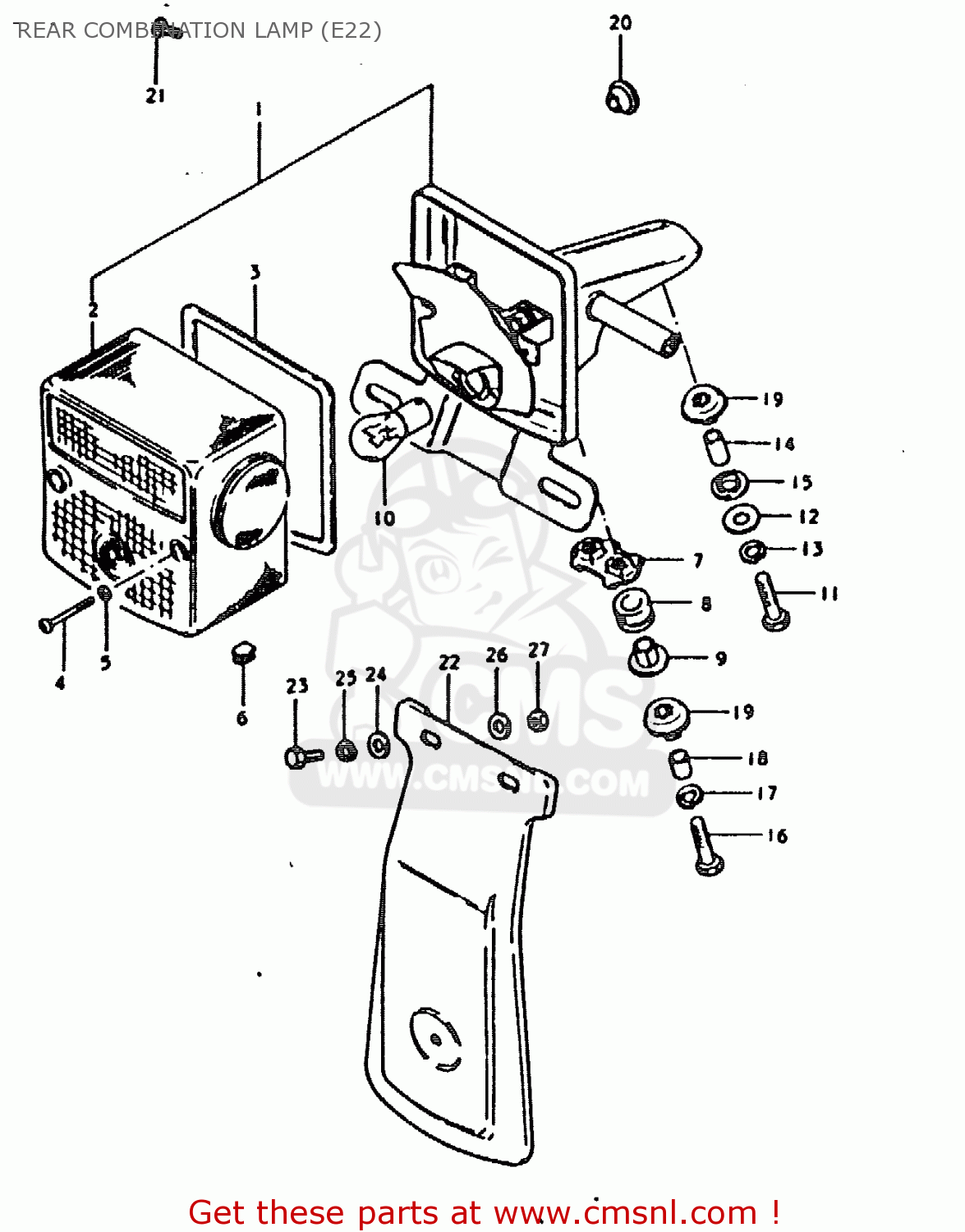

Rear combination lamp (e22) diagram TS185ER 1979 (N) (E01 E02 E04 E21 E24)

REAR COMBINATION LAMP (E22) TS185ER 1979 (N) (E01 E02 E04 E21 E24)
REAR COMBINATION LAMP (E22) TS185ER 1979 (N) (E01 E02 E04 E21 E24)
REAR COMBINATION LAMP (E22) TS185ER 1979 (N) (E01 E02 E04 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
3571030950999
ref: 1
LAMP ASSY, REAR COMBINATION
€ 0.00
2
3571230641
ref: 2
LENS
3571230641
€ 47.00
3
3571330510
ref: 3
GASKET (NAS)
3571330510
€ 6.00
4
0912504002
ref: 4
SCREW (4X55)
0912504002
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
3572830640
ref: 6
GROMMET,REAR COMBINATION LAMP
€ 3.00
7
3571630950
ref: 7
PLATE
3571630950
€ 10.50
8
3576530950
ref: 8
CUSHION
3576530950
€ 18.00
9
3576630950
ref: 9
SPACER
3576630950
€ 2.00
10
0947106034
ref: 10
BULB (6V,21/5W)
€ 0.00
11
0110706308
ref: 11
BOLT
0110706308
€ 2.50
12
0916006027
ref: 12
WASHER (6.5X20X1.2)
0916006027
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
0918006072
ref: 14
SPACER
0918006072
€ 2.00
15
0932009003
ref: 15
CUSHION
0932009003
€ 2.00
16
0110706408
ref: 16
BOLT 6X40
0110706408
€ 2.00
17
0832121068
ref: 17
LOCK WASHER
0832121068
€ 2.50
18
0918006006
ref: 18
SPACER (6.8X10X11.5)
0918006006
€ 3.00
19
0932009010
ref: 19
CUSHION
0932009010
€ 2.50
20
0930807004
ref: 20
GROMMET
0930807004
€ 2.50
21
0214205067
ref: 21
SCREW 5X6
€ 2.50
22
6333148501
ref: 22
MUD GUARD,REAR FENDER
€ 0.00
23
0110706168
ref: 23
BOLT, UPPER
€ 3.00
24
0832221068
ref: 24
WASHER
0832221068
€ 2.00
25
0832121068
ref: 25
LOCK WASHER
0832121068
€ 2.50
26
0916006007
ref: 26
WASHER
0916006007
€ 2.00
27
0831011068
ref: 27
NUT
0831011068
€ 2.50
