BATTERY

TS250X 1989 (K) (E02 E16 E21 E22 E24)

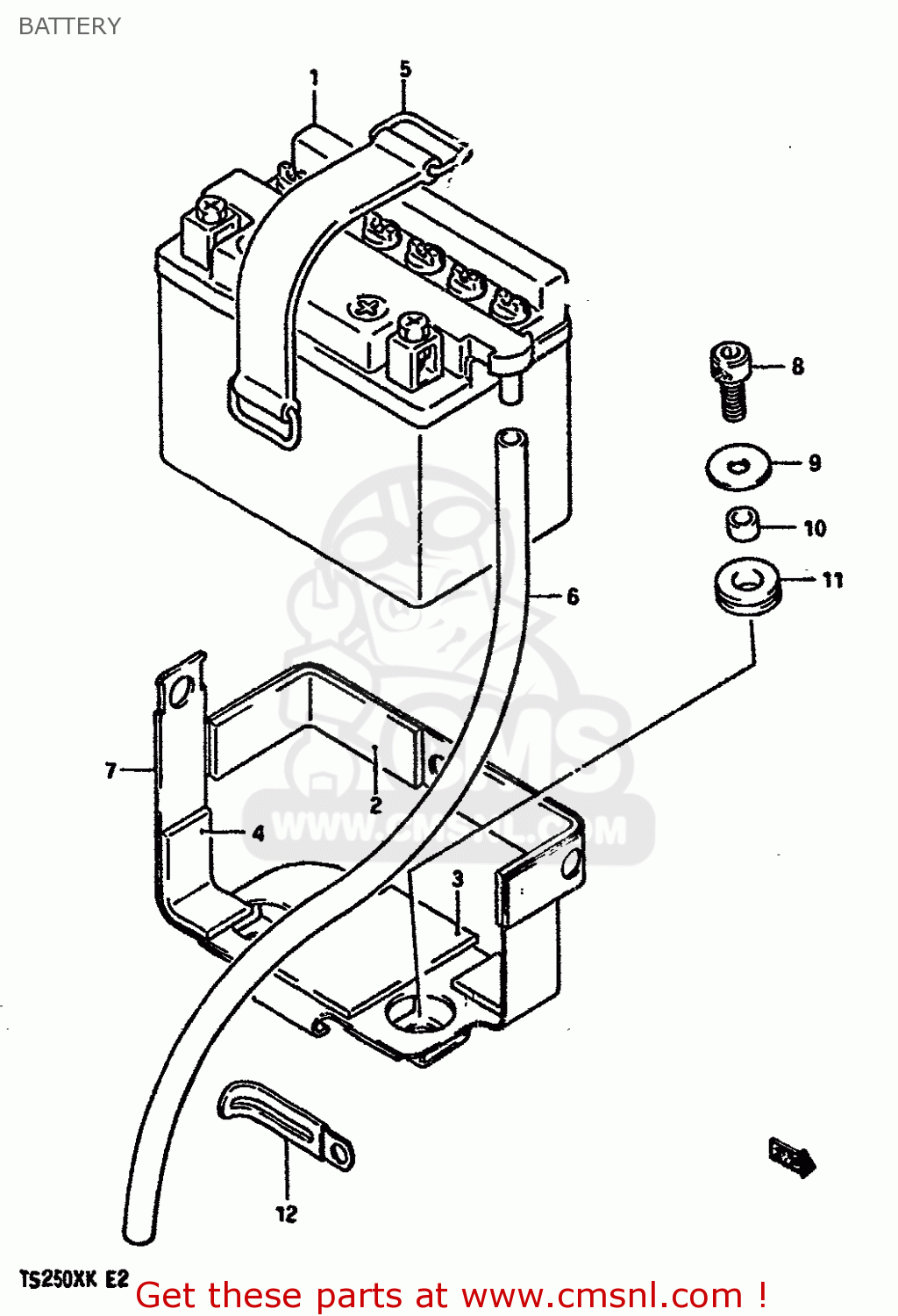

Battery diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

3361002500
ref: 1

BATTERY ASSY(YB4L-B,12V4.2AH)

€ 26.50

3365201A00
ref: 2
20X130-20X40

PROTECTOR,BATTERY

€ 5.00

3365208410
ref: 3

PROTECTOR,BATTERY

€ 5.00

3365229100
ref: 4

PROTECTOR,20X9

€ 5.00

0946200046
ref: 5

BAND

€ 4.50

3368031003
ref: 6
L:600-500

HOSE,BATTERY EXHAUST

€ 4.50

4154013A01
ref: 7

HOLDER,BATTERY

€ 15.00

0110706167
ref: 8

BOLT

€ 3.00

0916006027
ref: 9

WASHER (6.5X20X1.2)

€ 2.00

0918006073
ref: 10

SPACER

€ 2.00

0932008030
ref: 11

CUSHION

€ 3.00

12-1

0940406404
ref: 12-1
MODEL E/G/H

CLAMP

€ 3.00

12-2

0940406422
ref: 12-2
MODEL J/K

CLAMP

€ 2.50
