WATER PUMP
TS250X 1989 (K) (E02 E16 E21 E22 E24)

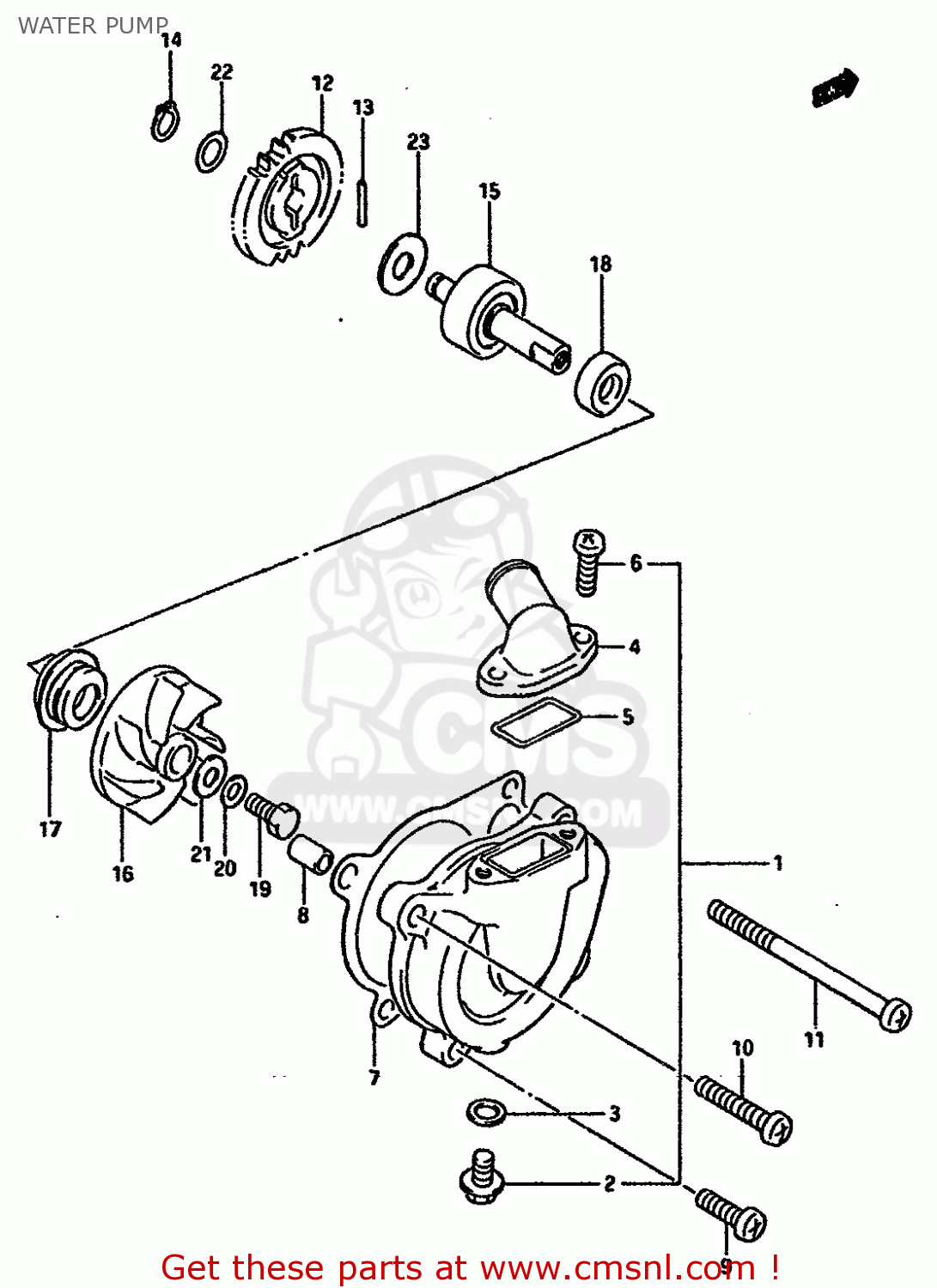

Water pump diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)
WATER PUMP TS250X 1989 (K) (E02 E16 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1741014300
ref: 1-1
MODEL E
CASE,WATER PUMP
€ 73.50
1-2
1741014310
ref: 1-2
MODEL G/H/J/K
WATER PUMP CASE
€ 73.50
2
1741514300
ref: 2
BOLT,DRAIN
€ 2.00
3
0916808008
ref: 3
GASKET 8.2X14X1 (NAS)
€ 1.00
4-1
1741214300
ref: 4-1
MODEL E
CONNECTOR
€ 23.50
4-2
1741214310
ref: 4-2
MODEL G/H/J/K
CONNECTOR
€ 23.50
5
1741414300
ref: 5
O RING,WATER PUMP CONNECTOR
€ 3.00
6
0211206164
ref: 6
SCREW
€ 2.00
7-1
1743114302
ref: 7-1
TO 17431-14303
GASKET,WATER PUMP CASE (MCA)
€ 7.00
7-2
1743114303
ref: 7-2
E17
GASKET,WATER PUMP CASE (NAS)
€ 7.00
8
0421109129
ref: 8
PIN
€ 2.00
9
0211206205
ref: 9
SCREW
€ 2.00
10
0211206305
ref: 10
SCREW
€ 2.50
11
0211206755
ref: 11
SCREW (6*75)
€ 1.50
12
1746113A00
ref: 12
GEAR,WATER PUMP DRIVEN
€ 29.50
13
0926102001
ref: 13
PIN(2.5X19.8)
€ 1.50
14
0833131086
ref: 14
CIRCLIP
€ 2.00
15
1751013A00
ref: 15
SHAFT,WATER PUMP
€ 122.00
16
1749114300
ref: 16
IMPELLER,WATER PUMP
€ 18.50
17
1747014100
ref: 17
SEAL,WATER PUMP SHAFT
€ 21.50
18
0928310005
ref: 18
SEAL,OIL(10X20X5)
€ 4.50
19
0910006099
ref: 19
BOLT(6X13)
€ 2.00
20
0916406006
ref: 20
WASHER
€ 2.50
21
0916806025
ref: 21
FROM 09168-06016
GASKET(6X15X2.2) (NAS)
€ 3.00
22
0916408018
ref: 22
WASHER
€ 3.50
23
0821108201
ref: 23
WASHER
€ 2.00
