CRANKSHAFT
TS250X 1989 (K) (E02 E16 E21 E22 E24)

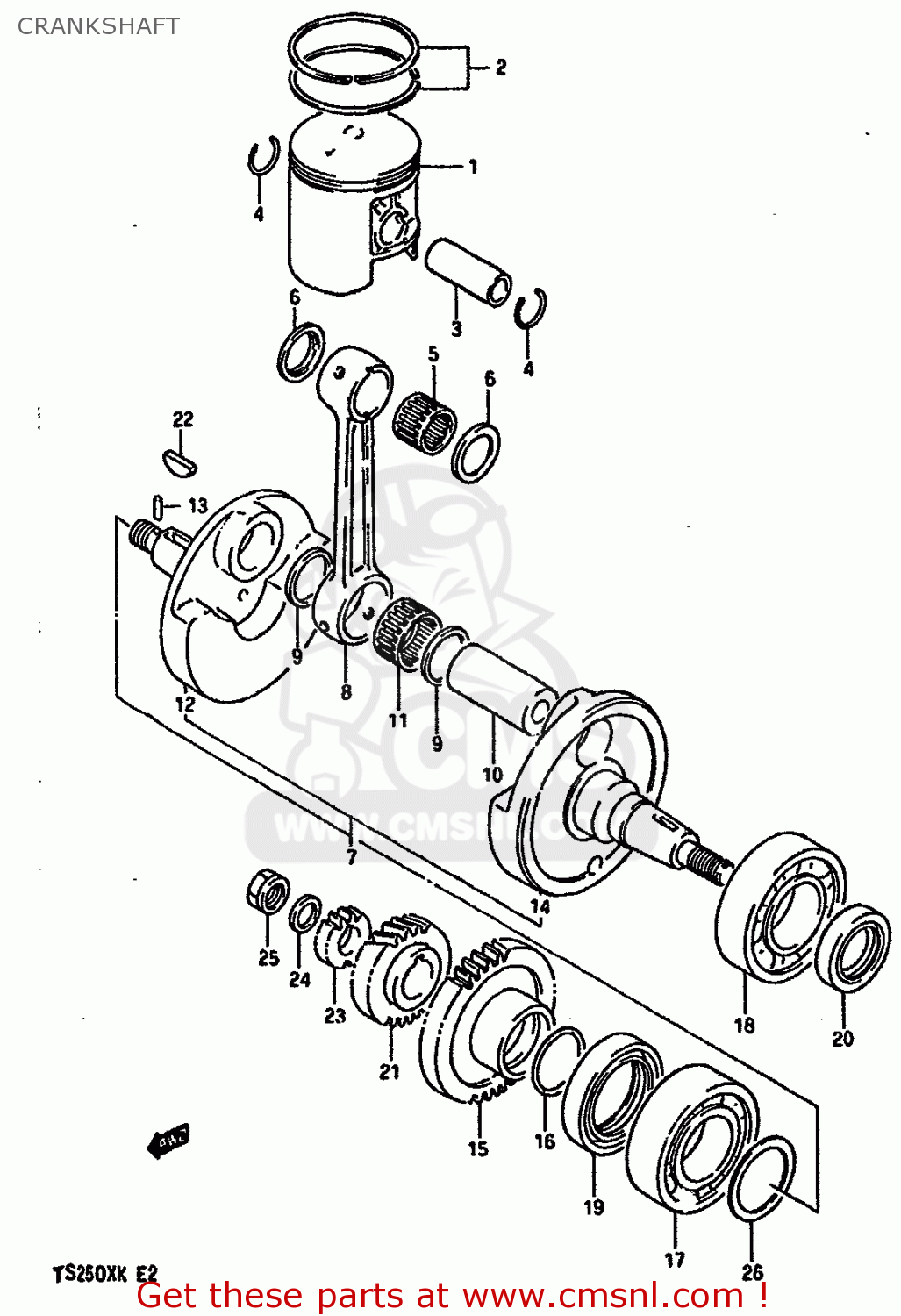

Crankshaft diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)
CRANKSHAFT TS250X 1989 (K) (E02 E16 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211013A060F0
ref: 1-1
MODEL E
PISTON (70.00MM)
€ 726.50
1-2
1211013A06050
ref: 1-2
MODEL E OPT
PISTON (0S:0.5)
€ 126.00
1-3
1211013A06100
ref: 1-3
MODEL E OPT
PISTON (OS:1.0)
€ 114.00
1-4
1211013A150F0
ref: 1-4
MODEL G/H/J/K
PISTON (70.00MM)
€ 72.00
1-5
1211013A15050
ref: 1-5
MODEL G/H/J/K OPT
PISTON (LS:0.5)
€ 124.50
1-6
1211013A15100
ref: 1-6
MODEL G/H/J/K OPT
PISTON (OS:1.0)
€ 127.00
2-1
1214013A11
ref: 2-1
MODEL E
RING SET,PISTON
€ 44.50
2-2
1214013A11050
ref: 2-2
MODEL E OPT
RING SET,PISTON (OS:0.5)
€ 25.50
2-3
1214013A11100
ref: 2-3
MODEL E OPT
RING SET,PISTON (0S:1.0)
€ 33.50
2-4
1214013A41
ref: 2-4
MODEL G/H/J/K
RING SET,PISTON
€ 62.50
2-5
1214019A10050
ref: 2-5
MODEL G/H/J/K OPT
RING SET,PISTON (OS:0.5)
€ 44.50
2-6
1214019A10100
ref: 2-6
MODEL G/H/J/K OPT
RING SET,PISTON (OS:1.0)
€ 20.50
3
1215113A000A0
ref: 3
PIN,PISTON (18MM)
€ 14.50
4
0938118002A
ref: 4
CIRCLIP,PISTON PIN
€ 1.50
5
0926318021
ref: 5
BEARING(18X23X24)
€ 22.50
6
0916918005
ref: 6
WASHER
€ 5.50
7-1
1220013A03
ref: 7-1
MODEL E
CRANKSHAFT ASSY
€ 559.50
7-2
1220013A10
ref: 7-2
MODEL G/H/J/K
CRANKSHAFT ASSY
€ 587.50
8-1
1216113A01
ref: 8-1
MODEL E
CONNECTING ROD
€ 107.50
8-2
1216113A10
ref: 8-2
MODEL G/H/J/K
CONNECTING ROD
€ 124.00
9-1
0916026004
ref: 9-1
MODEL E
WASHER(26X32X1.5)
€ 4.50
9-2
0916026017
ref: 9-2
MODEL G/H/J/K
WASHER(26X31X1.5)
€ 5.00
10
1221113A010A0
ref: 10
PIN,CRANK
€ 33.00
11-1
09263260170B0
ref: 11-1
MODEL E
ROLLER BEARING (26X32X1
€ 52.50
11-2
09263260210B0
ref: 11-2
MODEL G/H/J/K
BEARING(26X32X17)
€ 52.50
12
1222013A02
ref: 12
CRANKSHAFT,RH
€ 0.00
13
0621103052
ref: 13
PIN 3X5
€ 1.50
14
1226113A00
ref: 14
CRANKSHAFT,LH
€ 0.00
15-1
1266113A00
ref: 15-1
MODEL E
GEAR,CRANK BALANCER DRIVE
€ 114.00
15-2
1266113A10
ref: 15-2
MODEL G/H/J/K
GEAR,CRANK BALANCER DRIVE
€ 0.00
16
0928028005
ref: 16
O RING(D:2.4,ID:27.7)
€ 2.00
17
0926230071
ref: 17
BALL BEARING 30X62X16
€ 38.00
18
0926232006
ref: 18
BEARING(32X65X17)
€ 52.50
19
0928936003
ref: 19
SEAL,OIL(36X52X8)
€ 47.00
20
0928325078
ref: 20
SEAL,OIL(25X38X7)
€ 6.50
21
2111113A01
ref: 21
GEAR,PRIMARY DRIVE
€ 40.50
22
0834131069
ref: 22
KEY
€ 4.50
23
1745113A01
ref: 23
GEAR,WATER PUMP DRIVE
€ 23.50
24
0916414011
ref: 24
WASHER
€ 2.00
25
0915914012
ref: 25
NUT
€ 23.50
26-1
0918130037
ref: 26-1
SHIM(30X40X0.6)
€ 2.50
26-2
0918130038
ref: 26-2
SHIM(30X40X0.65)
€ 2.50
26-3
0918130039
ref: 26-3
SHIM(30X40X0.65)
€ 2.50
26-4
0918130040
ref: 26-4
SHIM(30X40X0.75)
€ 3.50
26-5
0918130041
ref: 26-5
SHIM(30X40X0.8)
€ 5.50
26-6
0918130042
ref: 26-6
SHIM(30X40X0.75)
€ 2.50
26-7
0918130043
ref: 26-7
SHIM (T:0.90)
€ 2.50
26-8
0918130044
ref: 26-8
SHIM (T:0.95)
€ 2.50
26-9
0918130045
ref: 26-9
SHIM(30X40X1)
€ 3.00
26-10
0918130046
ref: 26-10
SHIM(30X40X1.05)
€ 2.50
26-11
0918130047
ref: 26-11
SHIM(30X40X1.1)
€ 3.00
26-12
0918130048
ref: 26-12
SHIM(30X40X1.15)
€ 3.00
26-13
0918130049
ref: 26-13
SHIM(30X40X1.2)
€ 3.00
26-14
0918130050
ref: 26-14
SHIM(30X40X1.25)
€ 3.00
