FUEL TANK (MODEL K)

TS250X 1989 (K) (E02 E16 E21 E22 E24)

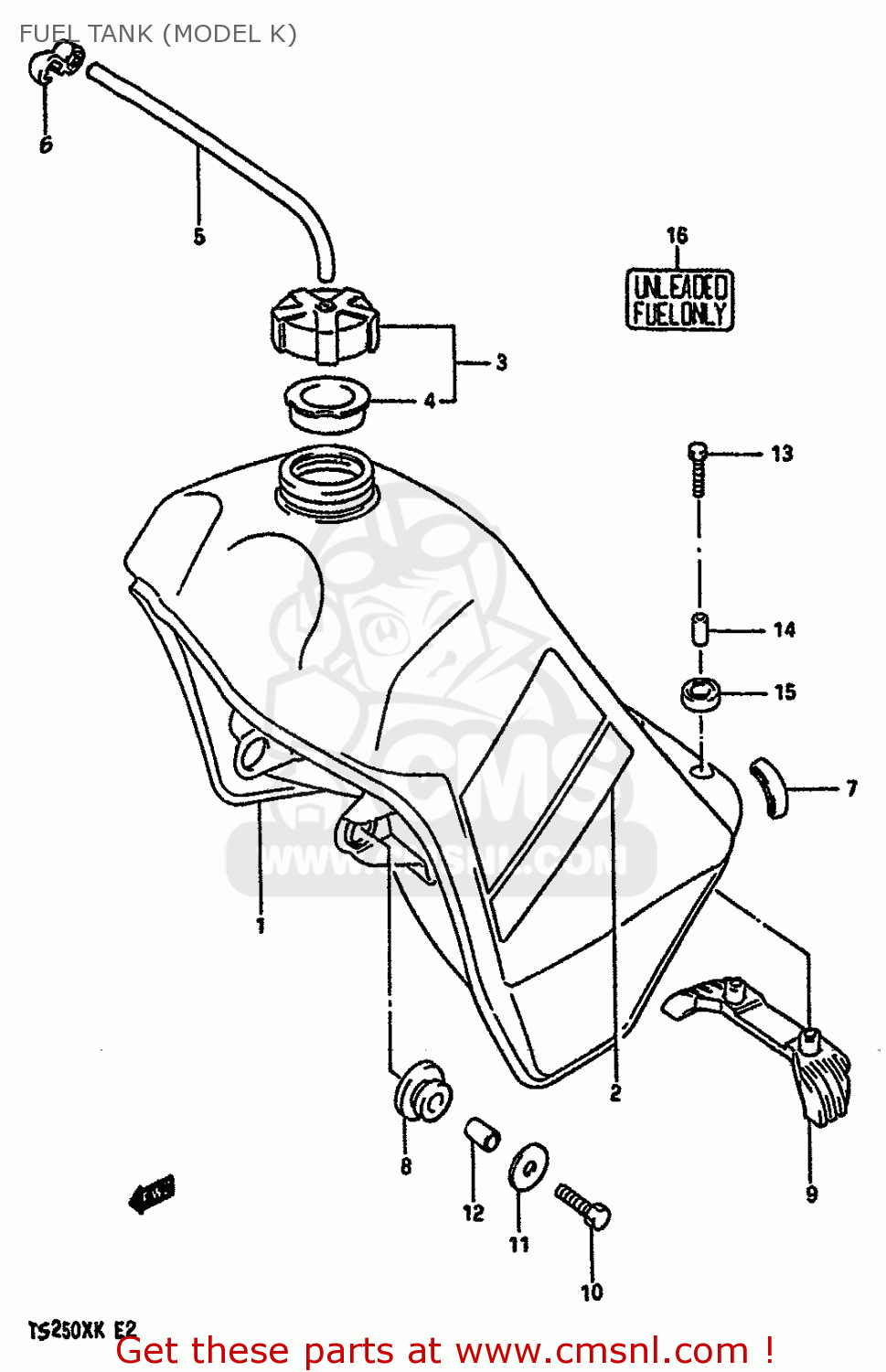

Fuel tank (model k) diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

FUEL TANK (MODEL K) TS250X 1989 (K) (E02 E16 E21 E22 E24)
FUEL TANK (MODEL K) TS250X 1989 (K) (E02 E16 E21 E22 E24)
FUEL TANK (MODEL K) TS250X 1989 (K) (E02 E16 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
4410013A7025Y
ref: 1-1
TANK ASSY,FUEL (YELLOW)
€ 387.50
1-2
4410013A8025Y
ref: 1-2
E22
TANK ASSY,FUEL (YELLOW)
€ 387.50
1-3
4410013A7030H
ref: 1-3
TANK ASSY,FUEL (WHITE)
€ 387.50
1-4
4410013A8030H
ref: 1-4
E22
TANK ASSY,FUEL (WHITE)
€ 387.50
1-5
4410013A7021C
ref: 1-5
TANK ASSY,FUEL (BLACK)
€ 387.50
1-6
4410013A8021C
ref: 1-6
E22
TANK ASSY,FUEL (BLACK)
€ 387.50
2-1
6811013A502DN
ref: 2-1
FOR 30H,25Y
TAPE SET,FUEL TANK
€ 0.00
2-2
6811013A5072H
ref: 2-2
FOR 21C
TAPE SET,FUEL TANK
€ 0.00
3
4420001890
ref: 3
CAP SET,FUEL TANK
4420001890
€ 12.50
4
4424805210
ref: 4
GASKET (NAS)
4424805210
€ 4.50
5
0935250823240
ref: 5
L:240-170
HOSE
€ 13.00
6
4448632101
ref: 6
CLAMP,FUEL TANK BREATHER HOSE
4448632101
€ 3.50
7
6824124A10
ref: 7
MOLDING,FUEL TANK
€ 2.50
8
4454113A00
ref: 8
CUSHION,FUEL TANK FRONT
€ 3.50
9
4454213A00
ref: 9
CUSHION,FUEL TANK REAR LOWER
€ 0.00
10
0110708307
ref: 10
BOLT
€ 2.50
11
0916008001
ref: 11
WASHER
0916008001
€ 2.00
12
0918008102
ref: 12
SPACER (8.6X12X17.5)
0918008102
€ 3.00
13
0110706306
ref: 13
BOLT
0110706306
€ 2.50
14
0918006072
ref: 14
SPACER
0918006072
€ 2.00
15
0932014013
ref: 15
CUSHION
0932014013
€ 3.00
16
8693273060
ref: 16
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
10
4454113A00
ref: 10
CUSHION,FUEL TANK FRONT
€ 3.50
11
4454213A00
ref: 11
CUSHION,FUEL TANK REAR LOWER
€ 0.00
12
0110708307
ref: 12
BOLT
€ 2.50
13
0916008001
ref: 13
WASHER
0916008001
€ 2.00
14
0918008102
ref: 14
SPACER (8.6X12X17.5)
0918008102
€ 3.00
15
0110706306
ref: 15
BOLT
0110706306
€ 2.50
16
0918006072
ref: 16
SPACER
0918006072
€ 2.00
17
0932014013
ref: 17
CUSHION
0932014013
€ 3.00
18
8693273060
ref: 18
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
