FRONT WHEEL

TS250X 1989 (K) (E02 E16 E21 E22 E24)

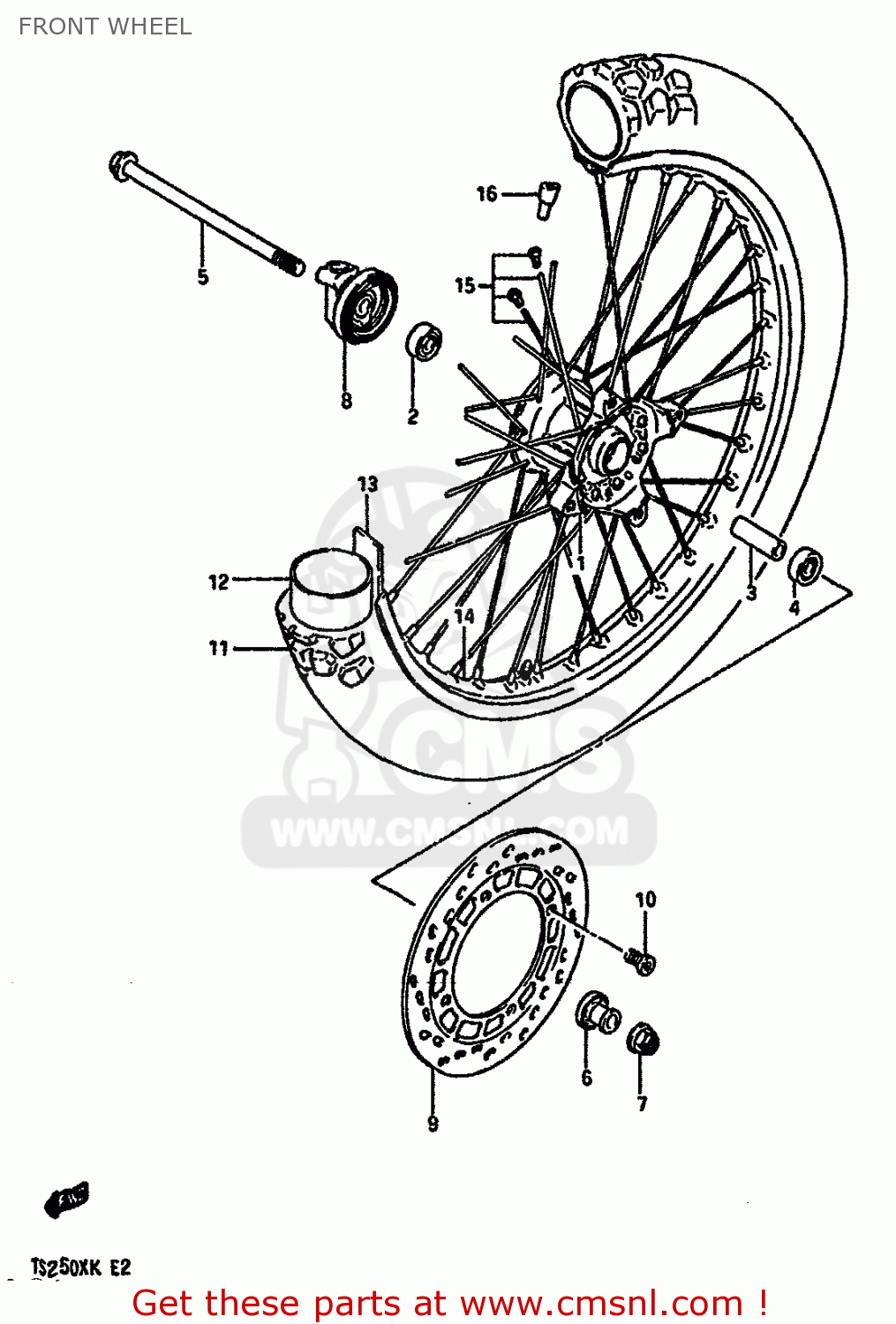

Front wheel diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

FRONT WHEEL TS250X 1989 (K) (E02 E16 E21 E22 E24)

FRONT WHEEL TS250X 1989 (K) (E02 E16 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

5411113A00
ref: 1-1
MODEL E/G/H/J

HUB,FRONT

€ 164.50

1-2

5411113A01
ref: 1-2
MODEL K

HUB,FRONT

€ 164.50

2

0811362017
ref: 2

BEARING

€ 11.00

3

0918012109
ref: 3

SPACER (12.6X19X60.5)

€ 8.00

4

0813362017
ref: 4

BEARING (12X32X10)

€ 15.00

5

5471113A10
ref: 5

AXLE,FRONT

€ 23.50

6

5474005211
ref: 6

SPACER,FRONT AXLE,RIGHT

€ 9.50

7

0831931128
ref: 7

NUT 12MM

€ 4.00

8

5460013A00
ref: 8

BOX ASSY,SPEEDOMETER GEAR

€ 68.00

9

5922114A00
ref: 9

DISC,FR BRAKE

€ 180.00

10

5942103A01
ref: 10

BOLT,BRAKE DISC

€ 4.00

11-1

5510013A20
ref: 11-1

TIRE,FRONT (3.00-21) BS

€ 163.00

11-2

5510013A40
ref: 11-2

TIRE,FRONT (3.00-21) DUNLOP

€ 163.00

12-1

5520013A40
ref: 12-1
MODEL E/G

TUBE ASSY

€ 32.50

12-2

5520016510
ref: 12-2
MODEL H/J/K

TUBE

€ 32.50

13

5526116510
ref: 13

PROTECTOR,WHEEL,INNER

€ 5.00

14-1

5531113A01
ref: 14-1
MODEL E/G

RIM,FRONT WHEEL (1.60X21)

€ 244.50

14-2

5531113A20
ref: 14-2
MODEL H/J/K

RIM,FRONT WHEEL (1.60X21)

€ 314.50

15

5532013A00
ref: 15

SPOKE SET,FRONT

€ 49.50

16

5541130000
ref: 16

BALANCER,WHEEL (50G)

€ 4.50
