LEFT HANDLE SWITCH (MODEL G E1,E2,E4,E21,E24)

TS250X 1989 (K) (E02 E16 E21 E22 E24)

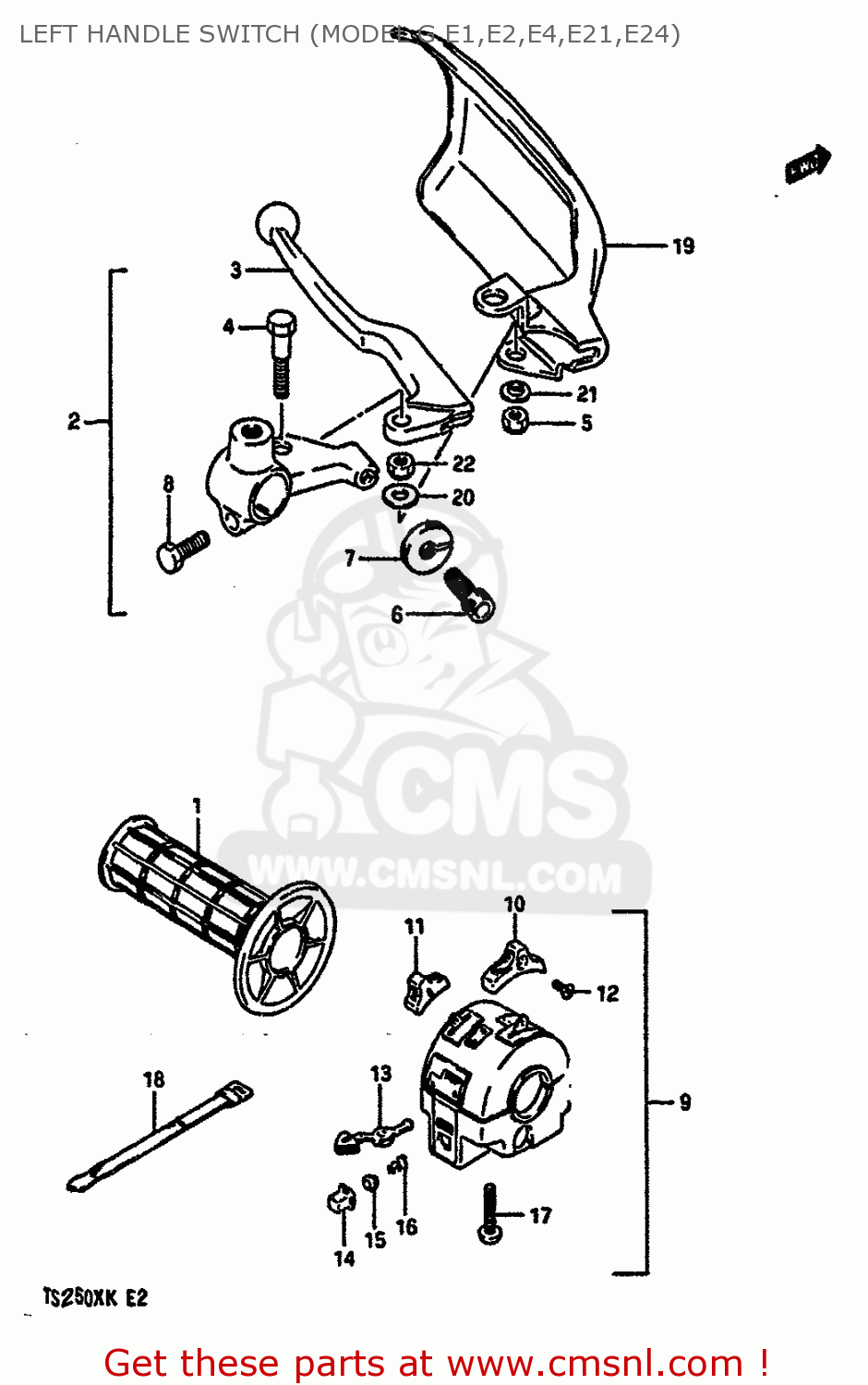

Left handle switch (model g e1,e2,e4,e21,e24) diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

LEFT HANDLE SWITCH (MODEL G E1,E2,E4,E21,E24) TS250X 1989 (K) (E02 E16 E21 E22 E24)

LEFT HANDLE SWITCH (MODEL G E1,E2,E4,E21,E24) TS250X 1989 (K) (E02 E16 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

5721140201
ref: 1

GRIP,LEFT

€ 11.00

2

5750013A10
ref: 2

LEVER, CLUTCH

€ 52.00

3

5762026500
ref: 3

LEVER,CLUTCH

€ 28.50

4

5753114A00
ref: 4

BOLT,LEVER SET

€ 8.50

5

0831921065
ref: 5

NUT

€ 2.50

6

5744113A00
ref: 6

ADJUSTER,CABLE

€ 4.00

7

5744244400
ref: 7

NUT,CABLE ADJUSTER LOCK

€ 4.00

8

0110706205
ref: 8

BOLT

€ 2.00

9-1

3740001A10
ref: 9-1
E1,E24

SWITCH ASSY,HANDLE LH

€ 130.00

9-2

3740001A00
ref: 9-2
E2,E4,E21

SWITCH ASSY,HANDLE LH

€ 108.00

10

3741145012
ref: 10

KNOB,LIGHTING SWITCH

€ 4.50

11

3742145012
ref: 11

KNOB,DIMMER SWITCH

€ 5.50

12

0212203068
ref: 12

SCREW

€ 1.00

13

3751345011
ref: 13

KNOB,TURNSIGNAL

€ 6.50

14

5737145000
ref: 14

BUTTON,HORN

€ 3.00

15

5737245000
ref: 15

CONTACT

€ 3.00

16

5738245000
ref: 16

SPRING

€ 2.50

17

0211205257
ref: 17

SCREW

€ 2.00

18

0940712402
ref: 18

CLAMP(L:120)

€ 3.00

19-1

5754114A0014C
ref: 19-1

COVER,KNUCKLE,LEFT

€ 9.50

19-2

5754114A00163
ref: 19-2

COVER,KNUCKLE,LEFT

€ 19.50

19-3

5754114A0021C
ref: 19-3

COVER,KNUCKLE,L

€ 15.50

20

0916006019
ref: 20

WASHER(6.5X16X1.2)

€ 1.50

21

0916906034
ref: 21

WASHER

€ 2.50

22

0831921068
ref: 22

NUT 6MM

€ 2.00
