REAR SHOCK ABSORBER (MODEL K)

TS250X 1989 (K) (E02 E16 E21 E22 E24)

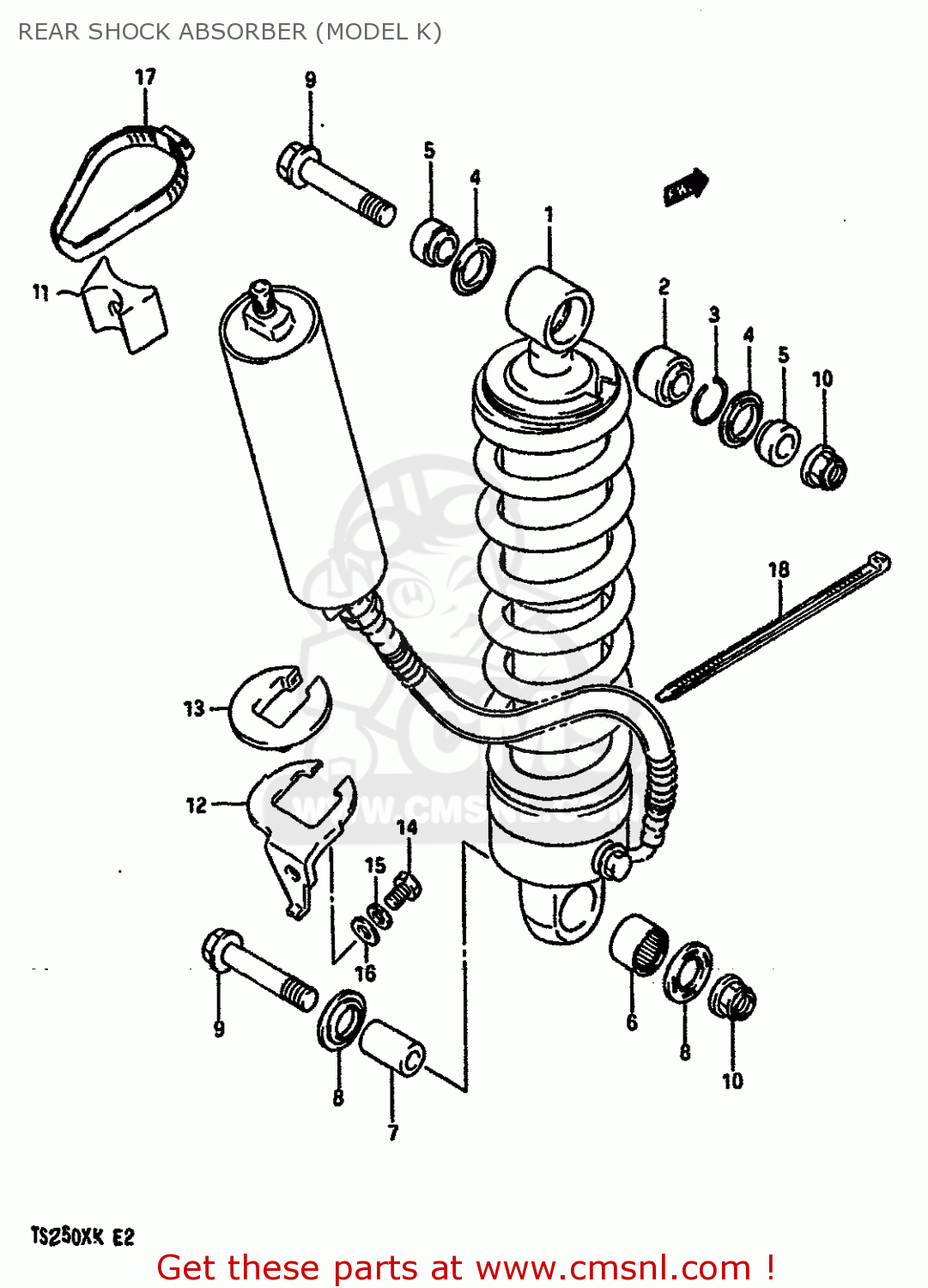

Rear shock absorber (model k) diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

REAR SHOCK ABSORBER (MODEL K) TS250X 1989 (K) (E02 E16 E21 E22 E24)

REAR SHOCK ABSORBER (MODEL K) TS250X 1989 (K) (E02 E16 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

6210013A4019F
ref: 1

ABSORBER ASSY,REAR SHOCK (BLUE)

€ 829.00

2

6217543400
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

3

6227714200
ref: 3

RING

€ 1.50

4

6222614520
ref: 4

SEAL,DUST RR SHOCK ABSORBER

€ 12.50

5

6268414520
ref: 5

COLLAR

€ 7.00

6

6218801C00
ref: 6

BEARING,NEEDLE

€ 26.50

7

6218701C00
ref: 7

COLLAR

€ 0.00

8

6218901C00
ref: 8

SEAL,DUST

€ 4.00

9

0910310040
ref: 9

BOLT(10X54)

€ 5.50

10

0831931107
ref: 10

NUT

€ 3.00

11

6233113A00
ref: 11

CUSHION,RESERVOIR TANK UPR

€ 0.00

12

6241113A00
ref: 12

BRACKET,LOWER

€ 0.00

13

6242313A00
ref: 13

CUSHION,LOWER

€ 0.00

14

0110706125
ref: 14

BOLT

€ 2.00

15

0832121064
ref: 15

WASHER,LOCK

€ 2.00

16

0832221064
ref: 16

WASHER

€ 2.00

17

0940270501
ref: 17

CLAMP

€ 10.50

18

0940714407
ref: 18

CLAMP(L:145)

€ 4.00
