REAR COMBINATION LAMP

TS250X 1989 (K) (E02 E16 E21 E22 E24)

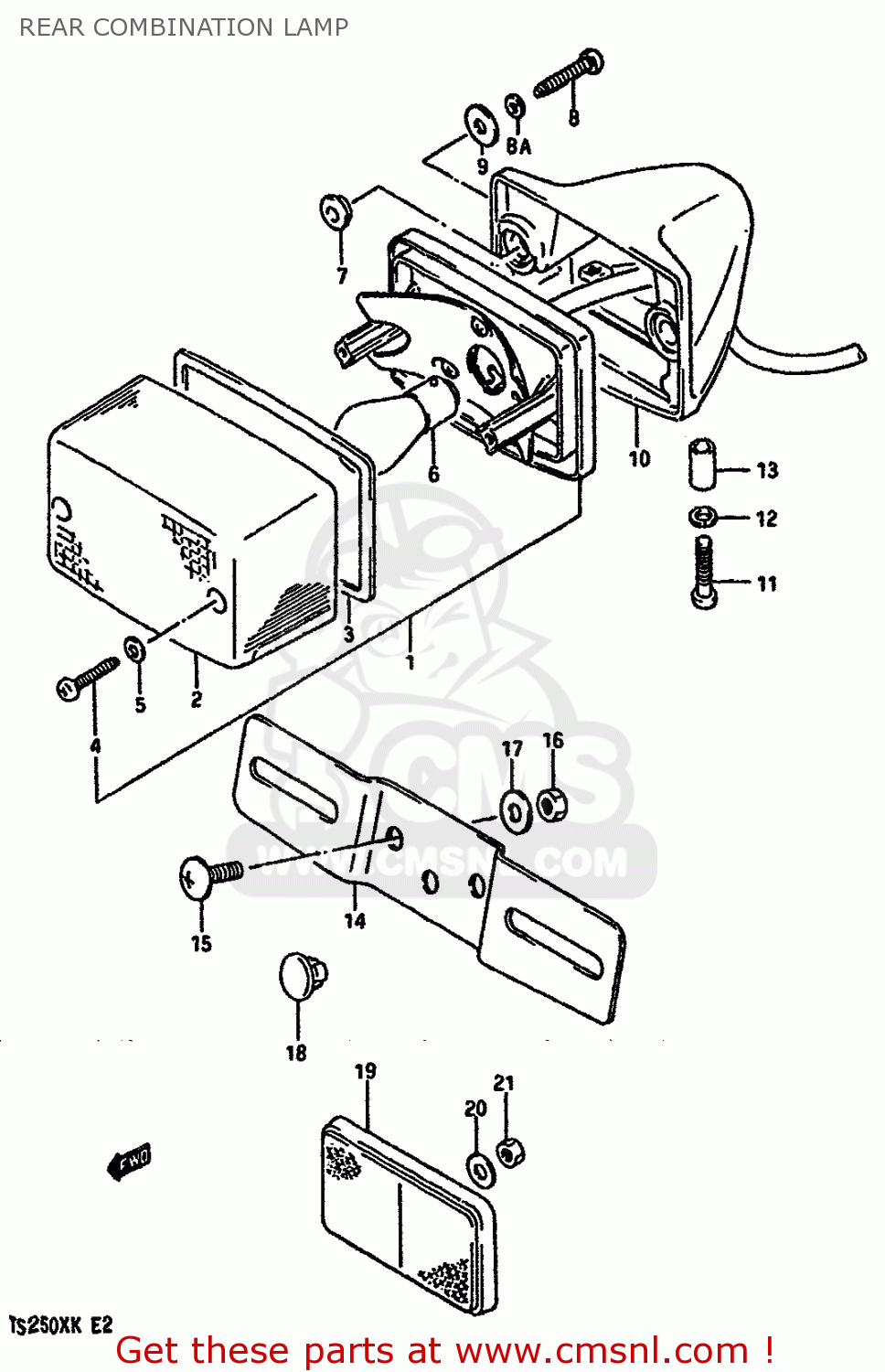

Rear combination lamp diagram TS250X 1989 (K) (E02 E16 E21 E22 E24)

REAR COMBINATION LAMP TS250X 1989 (K) (E02 E16 E21 E22 E24)
REAR COMBINATION LAMP TS250X 1989 (K) (E02 E16 E21 E22 E24)
REAR COMBINATION LAMP TS250X 1989 (K) (E02 E16 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
3572013A00
ref: 1-1
MODEL E E1,E24 TO 35
LAMP UNIT,REAR COMBINATION
€ 90.50
1-2
3572044A10
ref: 1-2
MODEL G/H E1 E24~F.N
LAMP UNIT,REAR COMBINATION
€ 90.50
1-3
3572013A20
ref: 1-3
MODEL E E4,E17,E21 T
LAMP UNIT,REAR COMBINATION
€ 90.50
1-4
3572044A20
ref: 1-4
MODEL G E2,E17~F.NO.
LAMP UNIT,REAR COMBINATION
€ 90.50
1-5
3572013A70
ref: 1-5
MODEL G E2,E17 F.NO.
LAMP UNIT,REAR COMBINATION
3572013A70
€ 90.50
1-6
3572044A20
ref: 1-6
E4,E21,E25 MODEL H/J
LAMP UNIT,REAR COMBINATION
€ 90.50
1-7
3572013A80
ref: 1-7
MODEL E E18 TO 35720
LAMP UNIT,REAR COMBINATION
€ 90.50
1-8
3572044A80
ref: 1-8
MODEL G E18 MODEL H/
LAMP UNIT,REAR COMBINATION
€ 90.50
1-9
3572013A51
ref: 1-9
E22
LAMP UNIT,REAR COMBINATION
€ 90.50
2-1
3571213600
ref: 2-1
LENS,LAMP RR
3571213600
€ 19.00
2-2
3571236A70
ref: 2-2
MODEL G E2,E17 F.NO.
LENS
3571236A70
€ 19.00
3
3571313600
ref: 3
GASKET,RR COMBI LAMP LENS (NAS)
3571313600
€ 3.50
4
0321104208
ref: 4
SCREW
0321104208
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6-1
0947112084
ref: 6-1
MODEL G/H E1 E24~F.N
BULB(12V23/8W,TOKAI DENSO)
0947112084
€ 6.00
6-2
0947112083
ref: 6-2
E2,E4,E15,E16,E17,E1
BULB(12V21/5W)
0947112083
€ 6.00
7
3576601A00
ref: 7
SPACER,RR COMBI
3576601A00
€ 3.00
8A
0832121055
ref: 8A
WASHER,LOCK
0832121055
€ 3.00
8
0321105255
ref: 8
SCREW
€ 2.50
9
3572717210
ref: 9
WASHER
€ 1.50
10
3573042A00
ref: 10
FROM 35730-42A00
BRACKET UNIT,TAIL LAMP
3573042A00
€ 39.00
11
0211206256
ref: 11
SCREW
€ 1.50
12
0832121066
ref: 12
WASHER,LOCK
0832121066
€ 2.00
13
0918006121
ref: 13
SPACER(6.4X9.2X12)
0918006121
€ 2.50
14
3592744110
ref: 14
PLATE,RR LICENSE
3592744110
€ 22.50
15
0214206164
ref: 15
SCREW
0214206164
€ 2.50
16
0831011065
ref: 16
NUT
€ 2.00
17
0916006069
ref: 17
WASHER
0916006069
€ 2.00
18
0932108005
ref: 18
CUSHION
0932108005
€ 2.50
19-1
3597017300
ref: 19-1
REFLEX REFLECTOR,RR
3597017300
€ 16.50
19-2
3597001A10
ref: 19-2
MODEL G/H/J,E4,E15,E
REFLEX REFLECTOR,RR
3597001A10
€ 85.00
20
0832221057
ref: 20
WASHER
0832221057
€ 2.50
21
0831011058
ref: 21
NUT
0831011058
€ 2.50
